Switches on the left section of the instrument panel
No. Description Page
1 Switches on the left section of the instrument panel 83
2 Instrument cluster 92 3 Switches on the 85 right section of the instrument panel Side panel Steering column switch for light and wiper functions 88
Combination switch for retarder and cruise control (option) 108
Ignition starter switch 112
DTCO tachograph 98 MTCO tachograph 96 At a glance
No. Description Page
9 Driver's area/ passenger compartment audio system control panel 10 Driver's area (option) 11 Left-hand steering wheel buttons 12 Right-hand steering wheel buttons

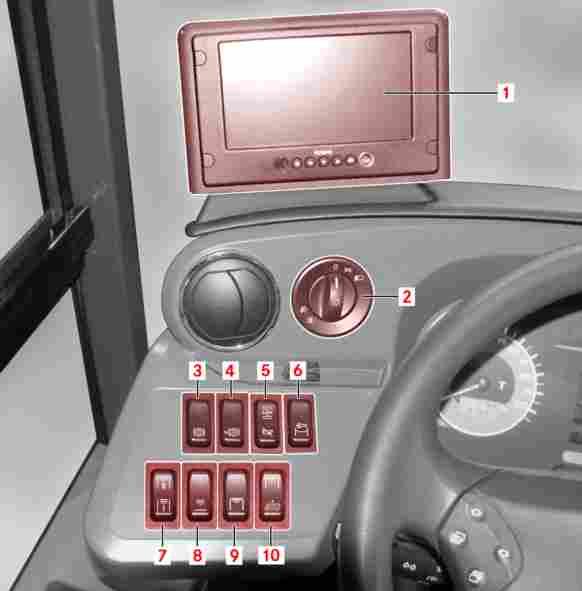

Switches on the left section of the instrument panel
Note:
The overview shows the maximum utilisation of the instrument panel with switches and instruments in their designated position. To accommodate the customisation requirements of the customer, the switches may have been assigned to different positions on the instrument panel.
At a glance
