Switches on the right section of the instrument panel
No. Description Page
Driver's area (option) Rotary light switch 106 Retarder on/off switch Direct retarder on/off switch ESP OFF pushbutton (Electronic Stability Program) ASR (acceleration skid control) OFF pushbutton Bus stop steering limiter pushbutton Passenger-compartment lighting switch positions I+II Payment tray lighting switch At a glance
No. Description Page
9 Overhead lighting dimmer switch 10 Passenger compartment night lighting switch 10 Pushbutton for raising the bus above normal level

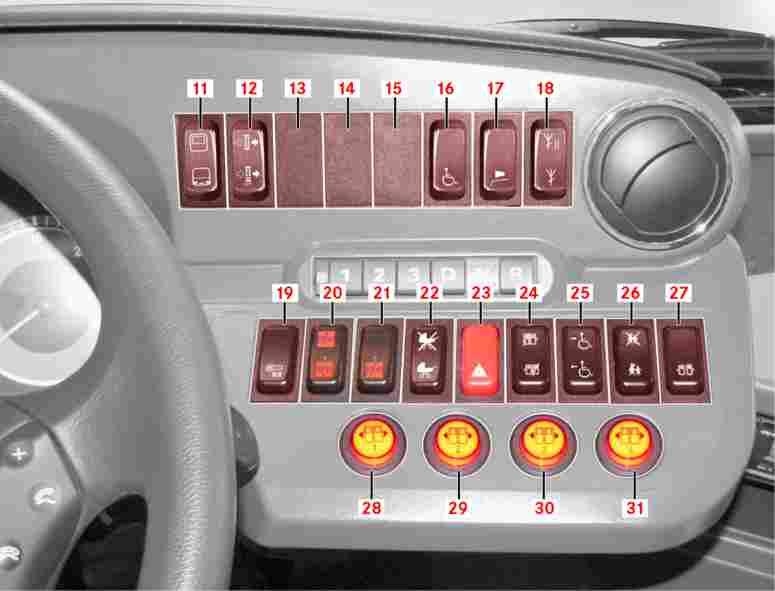

Switches on the right section of the instrument panel
Note:
The overview shows the maximum utilisation of the instrument panel with switches and instruments in their designated position. To accommodate the customisation requirements of the customer, the switches may have been assigned to different positions on the instrument panel.
At a glance
No. Description Page
11 Display pushbutton - to browse the upper and lower areas of the display screen separately 12 DPF cleaning switch (diesel particulate filter) 13 Not assigned 14 Not assigned 15 Not assigned 16 Ramp enabling switch 17 Exterior loudspeaker on/off switch 18 Communications radio 1/2 switch 19 Bus stop brake pushbutton At a glance
No. Description Page
20 Pushbutton for lowering the bus on the entry side 21 Raise bus pushbutton 22 Switch for holding the automatic doors open for pushchairs 23 Master safety switch (emergency-off switch) 24 Pushbutton for disabling the door leaves at all doors 24 Switch for disabling the rear door leaf at door 1 113
No. Description Page
25 Mobility lift up/down pushbutton 26 School bus mode switch 27 Door enabling switch 28 Pushbutton for opening/closing the doors from the inside 29 Pushbutton for opening/closing door 1 30 Pushbutton for opening/closing door 2 31 Pushbutton for opening/closing door 3
