Operating/malfunction displays: brake system

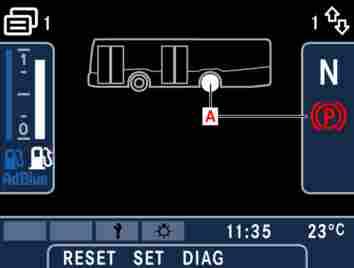

Operating/malfunction displays: brake system “Parking brake applied” indication display (A)

M54.00-1794-71 Operation

Operating/malfunction displays: brake system

Bus stop brake/drive-off lock malfunction

If this symbol is displayed, either the bus stop brake is defective or the emergency release switch of the bus stop brake has been operated.

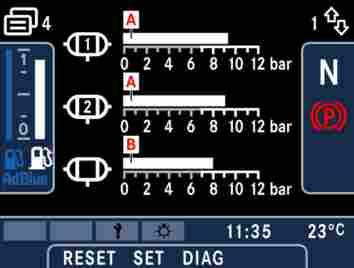

“Supply pressure” display

M54.00-1776-71 The following appears on the display screen: Available “supply pressure” in brake circuits 1 and 2 (A) and “supply pressure” in the auxiliary consumers circuit (B).

Brake pad wear

An overly worn brake pad is indicated on the display screen by a service notification and a yellow warning level malfunction alert.

Danger.

The braking characteristics of the bus may change if a yellow warning level malfunction relating to brake system is shown on the display screen. Adopt a particularly cautious driving style. Have the malfunction rectified as soon as possible by an EvoBus Service Partner.
