Rear towing coupling (option

M88_00-0060-01

Lift locking tab (6) slightly and turn the linchpin clockwise by handle (5) until it is released.

Pull the linchpin up and out of the towing coupling.

Fit the eyelet of the tow bar into the towing coupling.

Fit the linchpin into the towing coupling and eyelet of the tow bar. Turn the linchpin anti-clockwise by handle (5) until locking tab (6) engages.

The linchpin must remain engaged in locking tab (6) at all times.

Close the front flap. Operation

Remove the linchpin from the front towing coupling.

The rear towing coupling is optional equipment and has no linchpin.

M00_00-0492-71

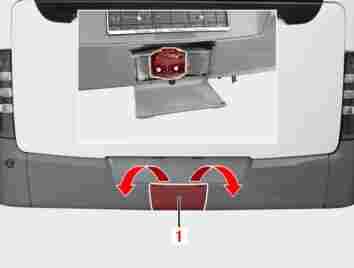

Remove cover (1).

Fit the eyelet of the tow bar into the towing coupling.
