Front towing coupling

Operation

Front towing coupling

by ABS/ASR, which could cause the rear axle to skid. Articulated buses: Above a speed of 12 km/h, this could happen even sooner, whether during straightahead travel or with the articulation at an angle. In addition, the bus stop brake would be activated by the articulation angle control unit.

Caution:

Articulated buses: With the ignition starter switch in position 0, articulation protection is in emergency damping mode. Articulation protection and vehicle stabilisation functions are extremely limited in this mode.

Front towing coupling

M88.00-0100-71

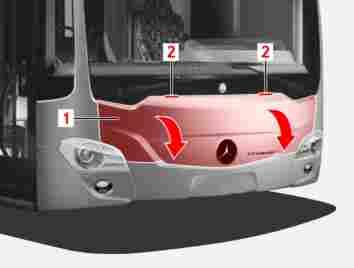

Grasp handle recesses (2) with both hands and open front flap (1).

M00_00-0338-71

Move the levers on both flap locks (1) to the left (when viewed in the direction of travel) to release the lower section of the front flap.

The lower section of the front flap folds down.

Note:

A retention strap prevents the lower section of the front flap from folding down completely.
