IntroductiontoMaserati

Auto-Normalmode:

In Auto mode the gearchangeismanagedcompletelyautomaticallybythe transmission electronic controlsystem. The controlunitdeterminesenginespeedand moment ofthe shiftaswellasitsspeed, basedon parameters suchasvehiclespeed, enginespeedand the driver's requestfortorqueand power. In AUTO mode a gear can alsoberequested manuallythroughthe paddlesbehindthe steeringwheel(gearsuggestion).

The system recognisesthe typeofdriver by meansoffunctionsthatassessthe driver's style ofdrivingthroughlateraland longitudinalaccelerationand acceleratorpedal movement. Ifa sportierdrivingstyle isrecognised, the "UP" shiftsare movedtoa higher numberofenginerevs. The controlsystem alsorecognisesthe typeofroad, adapting gearchangeswhenthe road climbsor falls, on a bend, in townand on motorways.

AUTO NORMAL mode isthe mode mostdesignedforcomfort: changingtoa highergear isrequiredassoonaspossiblein ordertoobtainthe lowestlevelofvibrationsand acousticreturnfromthe engine. Shiftingis managedin sucha way astoensurethatgear changesare ultra-smooth. Thismode alsoensureslowerfuelconsumptionwhen combinedwitha normaland non-aggressivedrivingstyle. Thisdoesnotmean, however, havingtogiveup on the car's sportynature: duringsports driving, withfrequentopening ofthe throttle, gearshiftspeedsapproachthoseofthe AUTO SPORT mode.

In AUTO mode, the engagedgearwillbeindicatedon the info display on the instrument cluster.

Auto-Sport mode:

AUTO SPORT mode isactivatedwiththe transmissionin auto mode and bypressing the SPORT buttonlocatedon the centredashboard: gearchangingisstillmanaged automaticallybythe transmissioncontrolunit, butbyvaryingthe speedofthe operations toopen up and reduce torque, disengage, selectand engage gear, closethe clutchand restoreenginetorque. The resultisa fastergearchangeand a more sportydrivingfeel.

ComparedtoAUTO NORMAL mode, shifting up takesplaceat higherenginespeeds, whereasmovingdown a gearisaccompaniedbya more pronounceddoublede-clutching effect.

Icemode:

Thismode can beusedon particularlyslipperyroad surfaces(snow, ice), or more generallyin low-gripconditions. Itisactivatedthroughthe ICE buttonlocatedon the centretunnel. Whenswitchedon, the system avoidshavingtorunthe engineat more than 3,000 rpm.

ICE mode takespriorityoverSPORT and MSP OFF modes: thismeansthatwhenthe driver requeststhe ICE mode, Sport mode isdeactivatedautomatically(ifitwason) and the stabilitycontrol(MSP) restored(ifpreviouslydeactivated).

Automatic mode with Easy-exit:

The default configuration of the gearbox is Automatic mode. If requested, the Auto mode can be switched off (and Manual mode activated) by pushing the “Auto”button on the centre console.

If the engine is switched of with the gearbox in Manual mode, atthe next engine start the system will activate the “Automatic with Easy-exit”configuration. This configuration will last for two minutes during which the “Auto”indication on the info display will flash. If during this period while the car is driving a gear is selected manually, the gearbox will exit the Auto mode en go to Manual mode. If during this time no gearchangerequest is made, the gearbox will go to Auto mode.

Note: forwhatconcernsthe “Sport”and “Ice”modes, at enginerestartthe robotized gearboxconfigurationisthe sameaswhenthe enginewasswitchedoff.

4. BrakingSystem

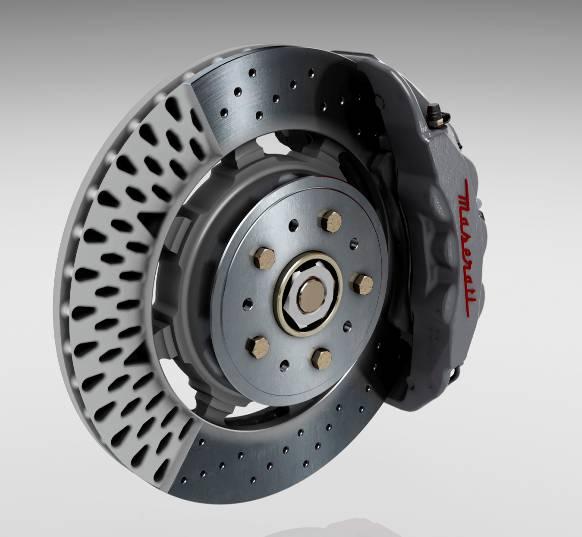

The Maserati GranTurismoS isfittedwitha high-performancebrakesystem, whichuses dual-casttechnologyforthe frontbrakediscs, developedin collaborationwithBrembo and usedforthe first timein the automotivefield on the Maserati Quattroporte Sport GT S. In contrasttoconventionalcast-irondiscs, the dual-castdisc consistsofa cast-iron brakingring and analuminiumhub, making itpossibletocombine the advantagesoffered bycast iron's performance at temperature withthe aluminium's light weight.

At the front, the dual-castdiscs(360 x 32 mm) are combinedwithsix-pistonaluminium monoblocbrakecalipersofdifferentiateddiameter(30/34/36 mm), withFerodo HP1000 pads. The monobloccalipersare more resistanttodeformationthancalipersmadeoftwo parts; thismeansthatlightermaterials, in thiscase aluminium, can beusedand componentweightminimisedevenfurther. The caliperisalsomore efficientat any operatingpressureand thistranslatesintolighteruseofthe pedalusewhenbraking.

At the rear, 330 x 28 mm discs are fittedwith4-piston calipersofdifferentiateddiameter (32/36 mm), and Jurid673 GG pads.

The brakecalipersfittedasstandard on the Maserati GranTurismoS are red. The customermaypersonalisethe colourofthe calipersbyselectingfromoneofa further5 alternative shades: Titaniumand Yellow fora more sportylook, Silver and Bluefora more elegantconfiguration, or the classicBlack.

The brakingsystem in the Maserati GranTurismoS alsofeaturesABS, whichpreventsthe wheelsfromlockingup whenbraking, and EBD forbetterdistributionofbrakingforce betweenthe frontand rearwheels, bothintegratedwithMSP Bosch version8.0.

MSP system:

The GranTurismoS is fitted with the Bosch ESP 8.0 system which incorporates the following functions: ABS, EBD, TCS, ASR, ESP and Hill Holder. Functionality is identical to the system used in other Maserativehicles.

ElectricParking Brake(EPB)

The Maserati GranTurismoS isequippedwithElectricParking Brake(EPB)

5. Driving Controls

Steering

Rackand pinionsteeringbox withspeedsensitivehydraulicpowersteering, on-road steeringratioof64 mm per turn.

Steeringdiameter(frompavementto pavement): 10.7 m.

Gearshift paddles behind the steering wheel are longer as those on the standard GranTurismomodel to improve the control during cornering.

6. Suspensions and Wheels

Single-ratingsportssuspensiontoenhancethe sportydrivingfeel

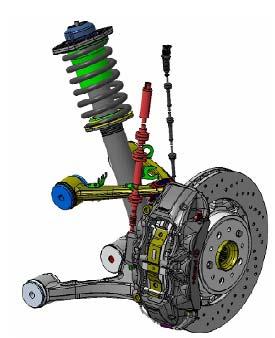

The Maserati GranTurismoS offersthe samesuspensionlayout asthe 4.2 L engine version. However, italsofeaturesa specialdevelopmentdesignedtoreallyexploit the greaterpoweroutput ofthe 4.7 V8 and harnessthe capabilitiesofferedbythe Transaxle system.

The Maserati GranTurismoS isfittedasstandard withfixed-ratingsteel dampersmodified withthe introductionofnewspringsand dampers, whichoffer10% more dampingforce and are repositionedin termsofcompression/extensionratioso as tomatch the car's differentspecification. The diameterofthe reartorsionbar hasalsobeenincreasedto makeitmore rigid.

Thesemodificationshaveresultedin a 10% reductionin body rollwhich, combinedwith the excellentweightdistribution, makesthe Maserati GranTurismoS particularlyagile and responsivetodriver instructions: in a successionofbendsitappearsquickand intuitive whenenteringand findingthe centreofthe bendand speedywhennegotiatingthe bend. Furthermore, the driver can accelerate earlierwhencomingout ofthe benddue tothe reducedloadtransfers.

As analternative tothe standard fixed-ratingsuspension, the Maserati GranTurismoS maybeprovided, uponrequest, withSkyhookelectronic controlsuspensionsfeaturing aluminiumbody damperswithcontinuousdampingvariation; in thiscase the hardware modificationsare accompaniedbyspecialmanagement software.

Optional Skyhooksuspension:

The Skyhookelectronic suspensionmanagement system isabletocontinuouslymonitor the suspensiondamping: the system actsthroughaccelerationsensorswhichrecord the movementsofeachwheeland thusensurethatanysurfaceunevennessisabsorbedand the highestlevelofcomfort guaranteed.

A furtheradvantageofthe Skyhookelectronic suspensioncontrolsystem isthatthe driver can choosefromtwodifferentsettings: Normal, whichallowstravelwiththe highestlevel ofdrivingcomfort, and Sport, whichgivesa harderride settingwithmore reducedroll anglesand loadtransfers, therebyenhancingthe agilityand stabilityofthe carbody. In the Sport configurationthe handlingofthe Maserati GranTurismoS iscomparablewith thatguaranteedbyfixed-ratingdampers.

Wheelsand tyres

20" diameterwheelsin light alloyfittedasstandard. -Frontwheels8.5J x 20" H2 profilewith245/35 R20 x

Staticloadconfiguration: full fluidlevels(includingfuel) plus 75+75 kg on the

7. Safety Components

In analogy with the MY09 Quattroportemodel, also the GranTurismowill introduce the new “intelligent LRD”-type front passenger airbag. This new type of airbag is fitted on the new GranTurismoS 4.7L Automatic and will shortly after be introduced on the existing GranTurismo4.2L Automatic and GranTurismoS models. See the part of the MY09 Quattroportefor more detailed information.

Note: all airbags are specific for each model, as they are tailored on the interior design.

8. Electrical systems and Devices

Parking sensors

Withthe ignitionkey in the ON position, the frontand rearparking sensorsare activated automaticallywhenreverse gearisengaged.

Ifthe carisequippedwithfrontsensors, thesesensorscan beactivatedbypressing button A; whenthe frontsensorsare active, the buttonisbacklitwithanamberlight. To switchoff the frontsensors, press A once again. Allthe sensorsremainactivewhen reverse gearisdisengaged. The rearsensorsremainactivefor60 secondsuntilthe vehiclespeedreachesaround18 km/h. The frontsensorsremainactiveuntilthe vehicle speedreachesaround18 km/h (11 mph). On activationofthe frontor rearsensors, a beeper warnsthe driver thatthe system is active. Whenthe sensorsare on, the system beginsemittingbeepsassoonasanobstacleisdetected. The beepfrequencyincreases asthe vehicleapproachesthe obstacle. The beepsare emittedfromtwobeepers, one locatedunder the dashboard(ifthe vehicleisequippedwithfrontsensors) and onenearto the luggagespace(ifthe vehicleisequipped withrearsensors). Whenthe obstacleisless than35 cm fromthe bumper, a continuousbeepisemitted. The beepstopsimmediatelyif the distancefromthe obstacleincreases.

The tone cyclesremainconstantifthe distancemeasuredbythe centralsensorsremains unchanged. Howeverifthe samesituation occurswiththe side sensors, the beepis interruptedafter7 seconds, toavoidcontinuousbeepingwhenmanoeuvringalonga wall, forexample.

The distancefromthe obstaclescan alsobe viewedon the instrumentpanelbymeansof a graphicdisplay, whichshowsthe vehiclesurroundedbysymbolsindicatingthe detected obstacle's distance(maximum, medium and minimum distance) and position (front/rear, central/side). The colourrepresentsthe distance, the fieldrepresentsthe position. The maximumdetecteddistanceisdisplayedin green, the medium in yellow and the minimum in red. Ifthe vehicleisonlyequippedwithrearsensors, the frontsensorsare omittedfrom the graphicdisplay. Ifthe vehicleisequippedwithfrontand rearsensorsand onlythe frontsensorsare active, the rearsensorsare omittedfromthe graphicdisplay.

Stop &Gofunction

The carisequippedwitha Stop &Gofunction, whichcan beactivatedbymeansofthe Multimedia System. The Stop &Gofunction can beenabled/disabledfromthe “Setup” menu, byselectingthe option“Definevehicle parameters”, selectingthe Stop&Goparking optionand changingthe settingto"ON". With the Stop &Gofunctionactive, the front sensorsare automaticallyactivatedwhenever the vehiclespeeddropsbelow18 km/h (11 mph).

WARNING: The Stop&Gofunctionisonlyavailablewhenfrontparking sensorsare installed.

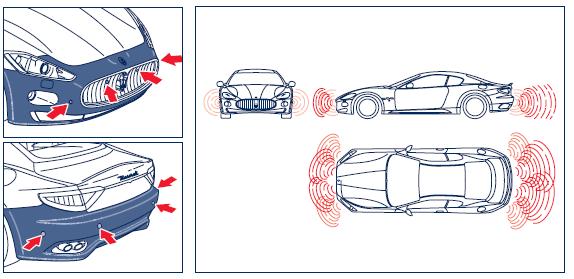

The sensorsenablethe system tomonitor the frontand back ofthe vehicle; theirposition coversthe medianand side zonesofthe vehicle, bothat the frontand rearends. Ifan obstacleislocatedin the medianzone, itisdetectedat distancesoflessthan0.9 m tothe frontand 1.5 m tothe rear, accordingtothe typeofobstacleand in proportiontoits dimensions. Ifthe obstacleispositionedin the side zone, itisdetectedat distancesofless than0.8 m.

The MMS usesBluetooth technology, whichmeansthatthe system can beconnectedtoa Bluetooth-enabledmobile phone. The connection enablesthe MMS tobeusedformaking or receivingcalls(bymeansofthe hands-freefunction), and formanagingthe mobile phoneaddressbook. The connection can beestablishedin twoways:

1. Bypairinga mobile phonewiththe MMS.

2. Bylinkinga storedmobile phonetothe MMS.

The mobile phoneonlyhastobepairedwiththe MMS on the first connection. Pairingcan onlybedonefromthe mobile phone; itcannotbedonefromthe MMS interface, sincethe system isnotconfiguredtosearchforBluetooth devices. Linkinga storedmobile phoneconnectsthe MMS toa phonewhich hasalreadybeenpairedwith the system. A link mustbeestablishedeachtimethatthe userwishestooperate the Bluetooth mobile phonevia the MMS. Unlikepairing, thisoperationcan beperformed eitherfromthe mobile phoneor fromthe MMS.

Pairinga mobile phone

WARNING: Beforeproceedingwiththe connection, consultthe userguide ofthe mobile phonetobepairedwiththe MMS system.

Topaira phonewiththe system, the Bluetooth functionmustbeactivatedon both devices. Topreparethe MMS forpairingwitha mobile phone, proceedasfollows: -switchon the mobile phone; -turn the ignitionkey toON withoutstartingthe engine; -switchon the MMS bypressing the rotaryknob 20; toactivatethe Bluetooth pairing functionon the mobile phone, refertothe instructionsin the userguide suppliedwiththe phone. Duringthe pairingoperation, the phonerequestsa PIN code fromthe user, see page5 “Authenticationcode”. Ifthe code isenteredcorrectly, the connection betweenthe twodevicesisestablished. Dependingon whichaddressbook synchronisationmode is set, seepage5 “Addressbook synchronisationmode”, addressbook contactsstoredin the mobile phonecan bebrowseddirectlyfromthe MMS. Once the connection is established, a messageappearson the MMS display informingthe userthatthe pairing operationiscomplete.

The MMS can bepairedwithup to10 devices. If10 paireddevicesare alreadystoredin the system, tostorea newonesimplyselecta listeddevice, whichwillbedeletedin favourofthe newdevice.

Bluetooth mainscreen

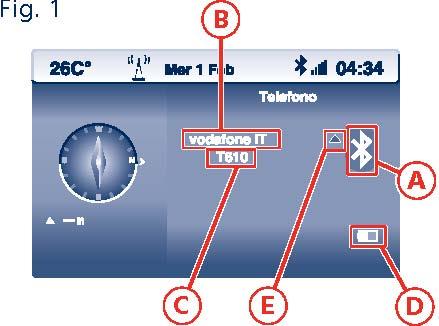

Press the MODE button, or press the MENU buttonand selectTelematicmode, toaccess the Bluetooth screen, seeFig. 1. The screenindicatesthe followingparameters:

A) connection status

B) network operator

C) nameofthe paireddevice

D) batterychargelevel

E) roaming indicator(ifenabled)

Disconnection

The Bluetooth connection maybeinterruptedin oneofthreeways:

1.Byinterruptingthe connection fromthe mobile phone, followingthe stepsdescribed in the correspondinguserguide, or byswitchingthe mobile phoneoff;

2. Bymeansofthe MMS interface.

4 “Listofconnecteddevices”;

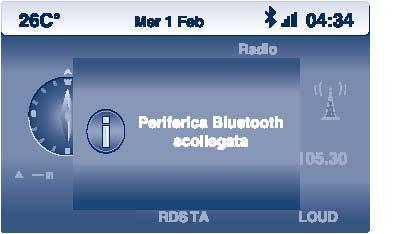

3.Bymovingthe Bluetooth-enabledphoneawayfromthe MMS so thatthe signal leavesthe MMS reception area. Disconnectionisindicatedbythe pop-up message shownin Fig. 2.

Disconnectingthe telephonedoesnotdeletethe listofcallsstoredin the calllog. To deletethe list, proceedasfollows:

-press the MENU button

-selecticonA and confirmbypressing the rotaryknob

-selectand confirm, bypressing the rotaryknob, the “TelephoneFunctions" option; -selectand confirm, bypressing the rotaryknob, the “Deletecalllog”, option, seeFig. 3. The log willnotbedeleteduntilthe operationhasbeenconfirmeda second time.

Switchingon the MMS

Eachtimethatthe MMS isswitchedon and providedthatBluetooth mode isactive, the system searchesforpreviouslypaireddevices(storedin the memory). The searchbegins withthe last paireddeviceand moveson topreviousdevicesin chronologicalorder. The searchendswhenthe MMS detectsa pairedphoneand establishesthe connection, or whenitdetectsanunpairedphone. In the lattercase, toestablisha connection, first pairthe telephonebyselecting”PAIR TELEPHONE”. Ifthe system failstofinda device, the searchendsand the Bluetooth functionisdisabled.

Makingand receivingcalls

Callscan bemanagedeitherfromthe mobile telephoneor fromthe MMS. The MMS display indicatesthe status ofthe activecall, whetherincomingand outgoing. Tomakean outgoingcallfromthe MMS, open the Callmenu asfollows:

-press button(4) or

-in Telematicmode press the RH rotaryknob(13)

-in Telematicmode, selectand confirmthe "Call" functionusingthe RH rotaryknob(13). The display showsthe followingfunctions:

-Calllist

-Dial

-Directory
