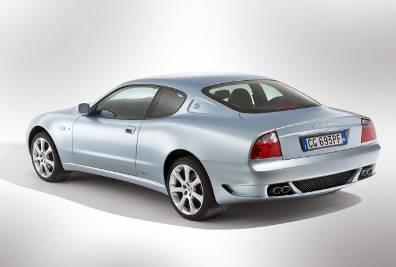

IntroductiontoMaserati

Main characteristics:

•Optimal weight distribution between front and rear axle (52% front, 48% rear for the Coupé, 53% front, 47% rear for the Spyder.

•Monocoquebodyshellreinforced with a tubular structure designed to respond to the highest standard in passive safety.

•Typical Italian muscular and harmonious body style with long hood and compact tail. Designed by Giugiaro’sItaldesign

•Roof operated by an electro-hydraulic system.

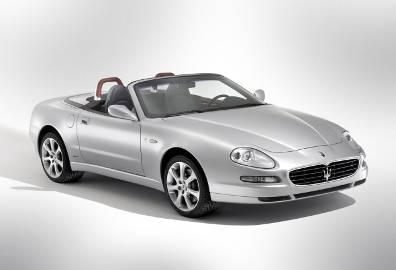

•Roof of the Spyderoperated by an electro-hydraulic system. Fully automatic opening and closing of the soft top by pushing a button in only 25 seconds. Soft top is fitted with a heated glass rear window.

•Spacious luggage compartment of 315 litres (Coupé) or 300 litres (Spyder). A tailor made set of leather suitcases is available upon request.

•Some modifications were made for MY03. New 7-spoke alloy wheels were available as an optional.

•A special series “Spyder90°Anniversary”was presented at the 2004 Paris motor show to celebrate the brand’s 90°anniversary. Only 90 pieces were made, all finished in a special “Blu Anniversary”blue colour.

•A special series “CoupéVintage”was presented in 2005. This model had the same alloy wheels as the GranSportand is further recognisable by a small chrome grill on its side wings.

Modifications for MY05:

•Newly designed front bumper and new chrome grille in line with the GranSportmodel.

•Newly designed rear bumpers in line with the GranSportmodel.

•7-spoke light alloy 18”wheels as standard.

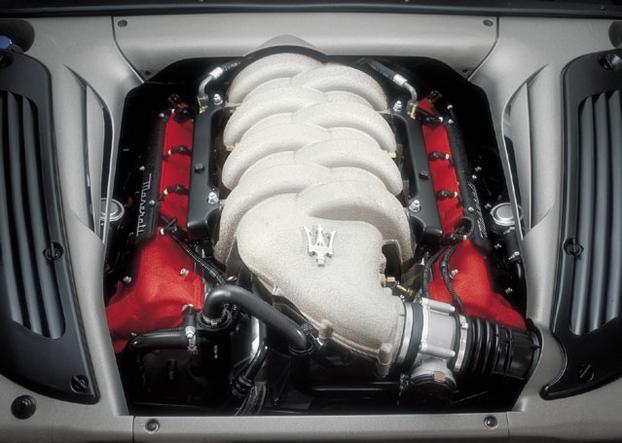

Engine

The Maserati M138 modelseriesusea complete newengine(F136R)

•Compact and light 8 cylinderin V, 90°

•4.244 cc overboreengine

•Dry sumplubricationsystem, racingpedigree.

•Fouroverheadcamshafts, drivenbychains. Timing variatorson the intakecamshafts

•Fourvalvesper cylinder, hydraulictappets.

•Bosch MotronicME7.1.1 integratedinjectionand ignitionsystem, drive bywire.

•Immediate throttleresponsefora sportydrivingstyle, maximumdrivingpleasurein dailyuse.

•Poweroutput of390 hp at 7000 rpm

•Torqueoutput of452 Nmat 4500 Nm

Engineevolutions:

•ComplyingEuro 4 standard fromMY06 forthe marketswherenecessary.

•Doublefuelpumpreplacedbya single unitfromMY06.

•New engineoil reservoirfromMY06 forUS/CDN specifications.

Seechapter3 formore detailson the F136R engine.

Transmission

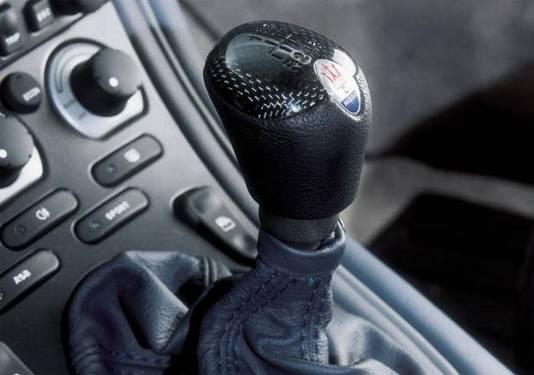

Manualtransmission:

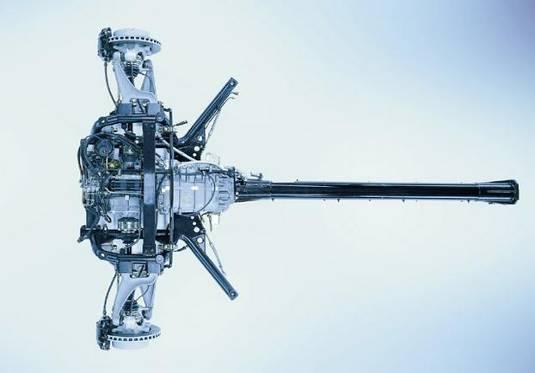

•Newlydesignedtransaxleconfigurationwith rearmountedgearbox/differentialand torque reactiontube guaranteeanexcellentweight distributionbetweenthe frontand rearaxles.

•Dualplateclutchwithreducedrotational inertiaallowsthe enginetopickup and loose speedquickly.

•Standard 6-speed gearbox, madeby Graziano.

•Limitedslip differential, 25 % lockingratio duringacceleration, 45 % duringrelease.

Cambiocorsatransmission:

•Electro-hydraulicoperationsystem forboth gearboxand clutchcontrol.

•Mechanicalgearboxrequiresno modifications foradaptionofthe Cambiocorsasystem

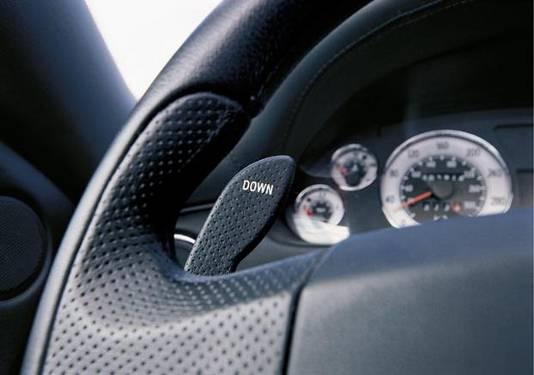

•Gerashiftingbymeansofthogearshift paddlesbehindthe steeringwheel.

•Possibilitytobedrivenin boyhmanualand fullyautomaticmode.

•Normal, Sport and Ice(low adherance) operationmodes.

Evolutions:

•Software update to Sofast(CFC201) for smoothergearchange, more drivingcomfort and lessnoise.

•AdaptionofSofastII (CFC231) from assembly12.204.

Braking System

•Brembo brakingsystem withlight alloy4pistoncalipers.

•Ventilatedand perforatedbrakediscs, 330 x 32 mm front, 310 x 28 mm rear.

•Bosch 5.7 integratedABS system concludes: ABS anti brake-locksystem, EBD electronic brakeforcedistribution, MSR topreventthe rearwheelsfromlocking duringdownshifting, ASR tractioncontrol system and MSP stabilitycontrol.

Suspensions and Wheels

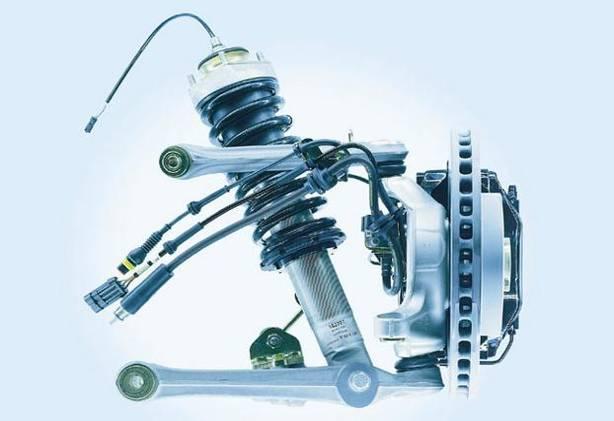

•Light alloysuspensionlevers, double wishbonetypewithantidive and antisquatgeometry.

•Skyhooksystem withelectronically controlleddampingavailableupon request.

•TwooperationlogicsforSkyhook: Normaland Sport.

Evolutions:

•New shock absorberssettingsand new Skyhooksystem software and hardware forMY06.

Safety Components

•Twodualstage frontairbags

•Twoside airbags, integratedin doorpanels

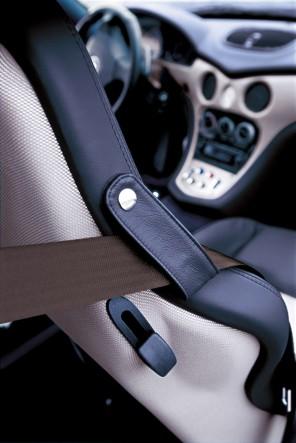

•Seatbeltswithpyrotechnicalpretensioners

•Inertiaswitchforfuelcut-off in case ofa collision.

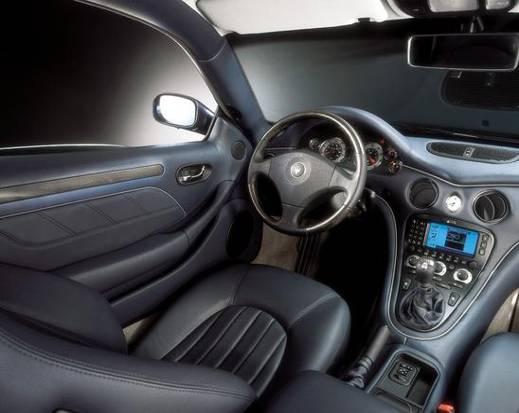

Internals

•The interior of the Coupéand Spyderis characterised by the use of precious materials, cured in every detail.

•Optimal driving position and ergonomic seats which are fully electrically adjustable.

•Easy Entry system for easy access to the rear seats (Coupé)

•Sportiness without compromising comfort, room for four adults (Coupé).

•Classical Analogue instruments, characterized by white dashes on a blue background.

•MaseratiInfo Centre with with a 5,8”colour info screen showing information about the sound system with CD player, and automatic climate control. On request also satellite navigation, GSM telephone and CD-changer.

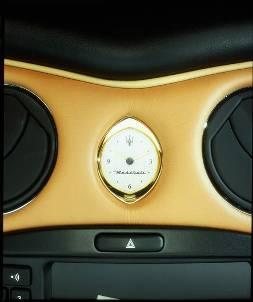

•Traditional analogue clock integrated in the centerof the dashboard panel.

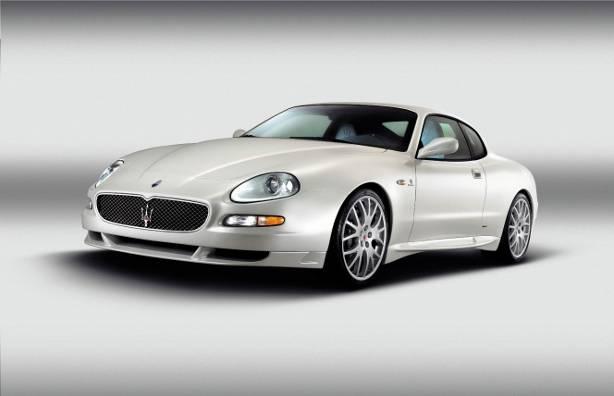

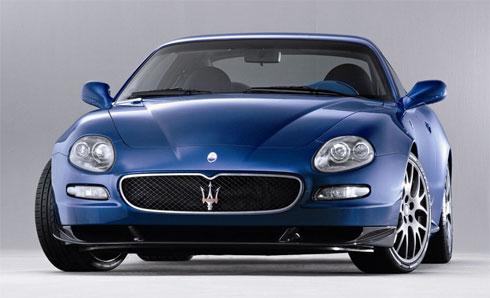

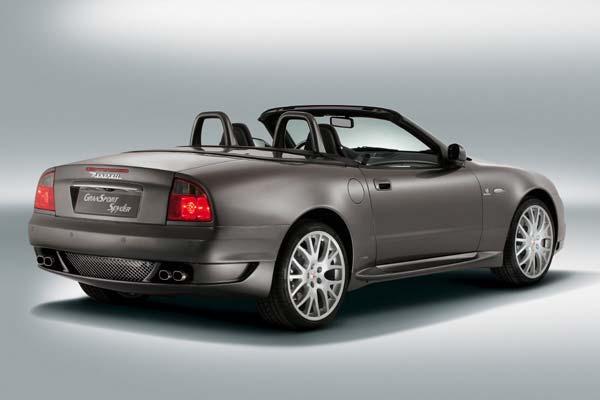

GranSport

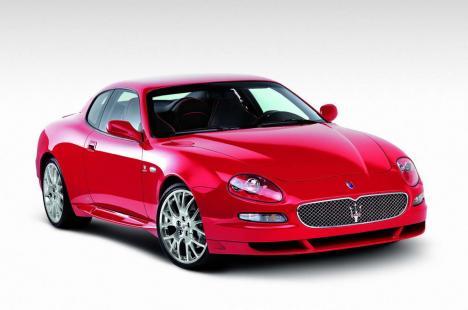

With the GranSport, presented at the Geneva motor show of 2004, Maseratirevives one of the great names of its own motoring heritage to indicate the most dynamic version of the M138 model range. The GranSportname was used in the 1950’s to indicate an elegant two-litre coupe on the basis of the famous A6G model with Fruabodywork. The GranSportincorporates all necessary ingredients to convert the Coupéfrom a great performance GT car in a true driving machine. The GranSportwas joined later by an open GranSportSpyderversion, presented at the Frankfurt motor show of 2005.

Various modifications gave the GranSporta more sporty temperament:

•ModifiedF136R enginedeliversnow400 hp at 7000 rpm. 10 horsepowerwas gainedbyadaptinga newenginecontrolsoftware, intakeair ductsand valve seats wereelaboratedand internalfrictionwasreducedbyreworkingseveralcomponents.

•Newlydesignedexhaustsystem withelectronicallycontrolledpneumaticby-pass valvesforthe rearsilencersprovidea deepand sportyenginesound

•Excellentperformances: top speedof290 km/h and acceleration from0 to100 km/h in only4.85 seconds. The standing kilometeriscoveredin 23 seconds.

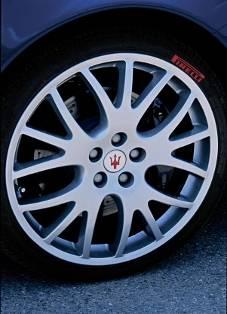

•New light alloywheelswithTridentdesign inspiredbythe Trofeo championshiopcars. Diameterincreasedto19”and newtyres.

•10 mm loweredsuspensionand newsuspensionsettings.

•New controllingsoftware forCambiocorsagearbox(standard) leadstofastergearshifting(35% faster).

•6°gearwitha 5% longerratio.

Externals:

•Variousexternalmodificationsare the resultofintense testingwork in the windtunel.

•More muscularand sporty appearance

•Coefficientofdrag ofonly0,33: amongstthe best in itscategory

•New and largerfrontgrillewith chromemeshwhichremindsofthe Quattroporte grille.

•Newlydesignedfrontand rear bumper.

•Newlydesignedsportyside sills

•Smallbootlidspoiler

Internals:

•New leatherupholsteryand new special“technical”fabricforthe dashboardcomingfromthe nautical world

•New ergonomicseatswithimproved lateralsupport, fullyelectrically adjustable.

•Newlydesignedcentralconsole with carbonfibre inlay

•Blue“START”buttonon central console

•New instrumentpanelwithsportywhite graphicson a bluebachground

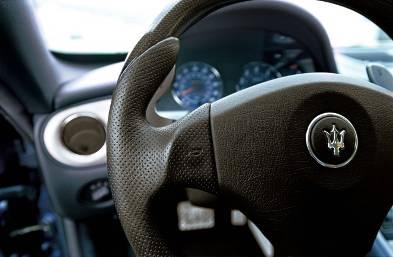

•New leatherand carbonfibre steering wheelwithergonomicgrip.

•New Becker “On LinePro”audio system.

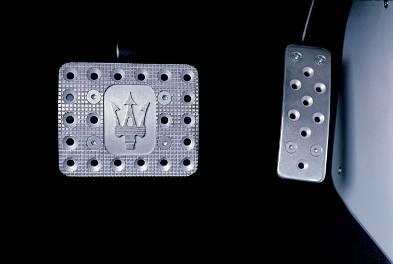

•New aluminiumsportypedals

GranSportContemporaryClassic

This special edition of the GranSport was presented at the 2006 Paris motor show. The GranSportContemporary Classic is recognisable by its alloy wheels with “Ball Polish”finishing and red painted brake calipers.

GranSportMC Victory

To celebrate the winning of the Constructors Cup with its MC12 racing cars in the 2005 FIA GT Championship, Maseratienriches her model range with a special version of the GranSportproduced in a limited series of only 180 pieces. The GranSportMC Victory has the following specific features:

•Special “Victory Blue”external colour

•A numbered identification plate on the central console

•A newly designed carbon fibre front spoiler with lateral profiling improves downforce

•A small boot lid spoiler finished in carbon fibre

•19”alloy wheels in titanium finishing

•Label with the Italian flag on both front side wings reminds to the MC12 racing cars

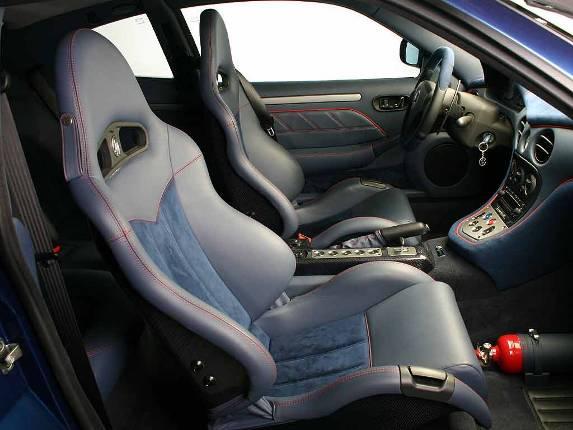

•Bucket seats made of carbon fibre are taken from the MC12, finished in blue leather and alcantara.

•Blue alcantaraupholstery for the dasboard.

•Carbon fibre central console

0. GeneralInformation

Model Hystory

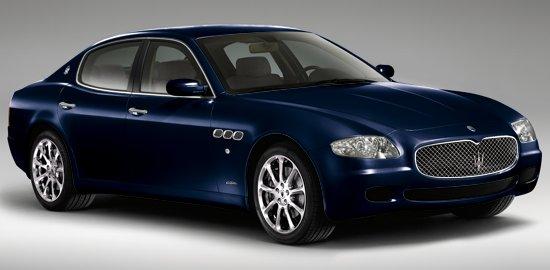

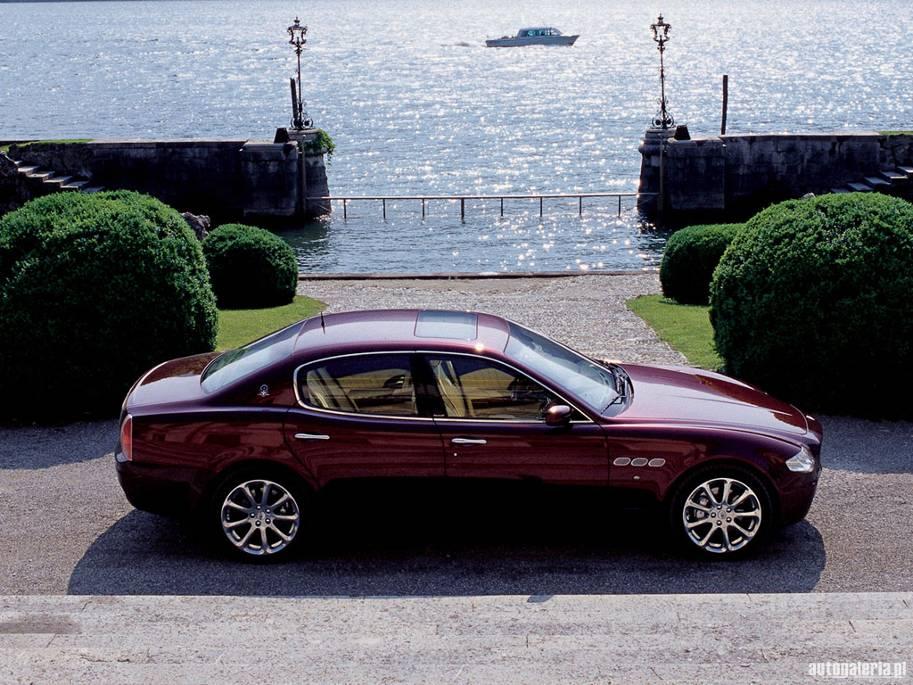

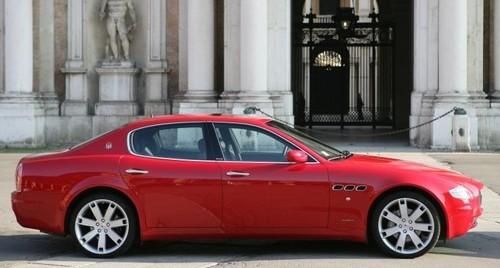

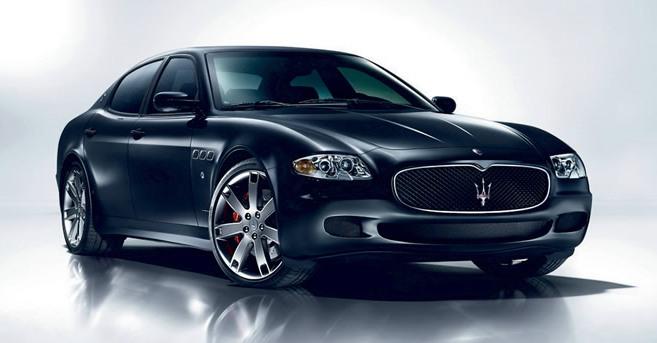

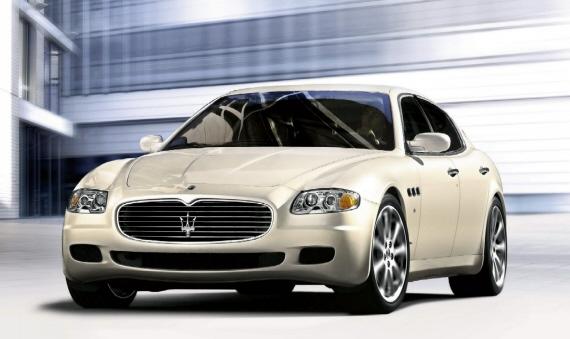

The Maserati Quattroporte (model code M139) waspresentedin late 2003 at the Frankfurt motor show asthe fifthgeneration of the Maserati high performance premium saloon. With itselegantly-designedPininfarina body, the Quattroporte madea triumphantreturn in the highestsegment, 40 yearsafter the introductionof the first, Frua-boddiedQuattroporte. InimitableTridentstyle, sophisticated interior and spiritedtemperamentcharacterisethe new Maserati flagshipwhichhaswonnumerousimportantnationaland international awards. The Quattroporte offerssuperiorhandling due toa perfectweightdistribution. Thisisthankstoanenginemountedbehind the front axleand a rearmounted, transaxle gearbox. Sinceitsfirst introduction, the model underwentvariousmodificationsand has beensubjecttoa continuousimprovementof quality. Also, variousdifferentversionswere derivedfromthe originalmodel.

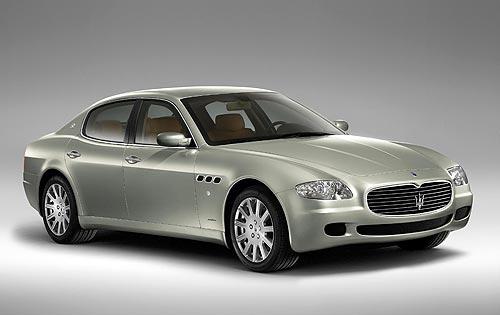

Quattroporte

The Maserati Quattroporte in itsoriginalconfigurationisequipped witha 4.2 V8 dry sump engine(F136S) and a rearmounted, robotizedmanualsix-speedgearbox(Duoselect).

Quattroporte Sport GT

Presentedat the Frankfurtmotor show in September2005, The Quattroporte Sport GT wascreatedtomeetthe demandsfromcustomerswhodesiredgreaterperformance and sportinessfromthe Maserati flagship. The Sport GT hasthe followingspecificfeatures:

•Specific20”wheels

•Specificexhaustsystem fora more intenssound

•SpecificGearboxsoftware forfaster gearshifting(35% in Sport mode)

•Cross-drilledbrakediscs

•Metallicflexiblebrakehoses

•Specificsoftware forthe Skyhook variablesuspension

•Standard fittedTPMS

•Variousspecificexternaland internal aestheticfeatures

Quattroporte Executive GT

Presentedtoghetherwiththe Quattroporte Sport GT, the Executive GT representsthe Quattroporte in itsmostelegantform. Comfort levelsof the Executive GT are at their highestand mostexclusive. Standard features include: alcantara roofupholstery, leather and woodsteeringwheelrim, rearseatheating, ventilationand massage functions, rear window curtains, rearstowablewoodentablesand rearseatcontrol panel forHVAC. Technicaldifferencesremainlimitedtonewlydesigned19 inchrimswithball polish finishing. BothExecutive GT and Sport GT versions co-existwiththe standard Quattroporte model.

Quattroporte Automatic

The mostimportanttechnicalevolutioncamewiththe introductionof the Quattroporte Automaticat the 2007 Detroit motor show. Whilethe Quattroporte withDuoselect transmissionhasproventobeanideal match forMaserati’s sportyreputation, demandfor a fullyautomaticversionhasalwaysbeenpresent. The Quattroporte Automaticismuch more thena Quattroporte simplyfittedwitha new gearbox. Fromthe 16.500 components of whichthe Quattroporte is made, 4.800 are new. The powertrainiscompletelynew with the adaptionof a new wetsumpengine(F136UC), gearbox, propellorshaftand limitedslip differential.

Alsothe Quattroporte Duoselectbenefittedfromthe importantimprovementsand modificationsintroducedin the Quattroporte Automatic(MY07 onwards), suchasthe completelyredesignedHVAC system and improvedcomfort due tomodificationsmadeat the wheelsuspensions. The Quattroporte Automaticisavailablein standard versionas wellasSport GT and Executive GT.

Quattroporte Sport GT S

The Quattroporte Sport GT S waspresentedat the 2007 Frankfurtmotor show toreplace the Sport GT. The Sportycharacterof the Sport GT wasfurther enhancedwitha number of new feartures:

•Suspensionswithstifferspringsand stiffer, single rate dampers; a ‘racing’setupand a loweredride (10 mm at the front and 25 mm at the rear). Thankstothese modifications, bodyrolland pitchhasbeensignificantlyreduced, whileincreasing drivingagility.

•New tyresdeveloppedespeciallybyPirelli forthe Sport GT S. Lateralaccelleration hasbeensignificantlyincreased.

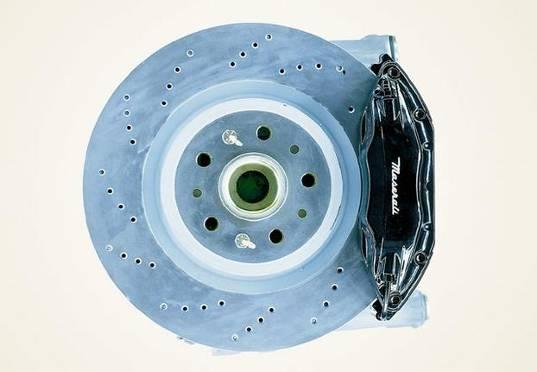

•A new revolutionarybrakesystem developpedbyBrembo usesDual-castaluminium and cast irondiscs(first time on a production car), front discswithincreased diameterand sixpistoncalipers.

•Variousaestheticmodifications, suchasdoorhandlesin body dolour, dark exhaust pipesand side window trimsand dark chrome20 inchwheels forwhatconcernsthe exterior. Internally, the sportycharacterisenhancedbythe combinationof Poltrona Frau leatherand alcantara.

The Quattroporte Sport GT S isavailablewithautomatictransmissiononly.

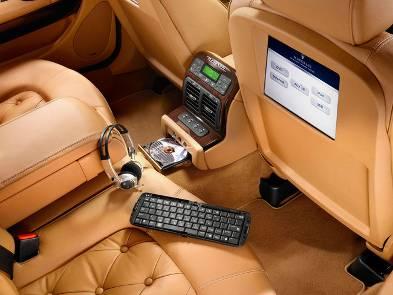

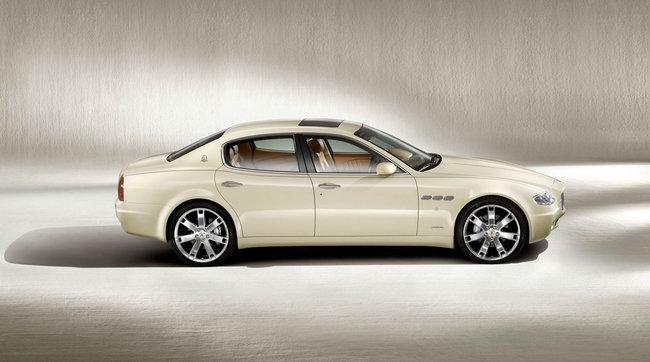

Quattroporte Collezione Cento

The Quattroporte Collezione Cento, of whichjust 100 unitswillbeproduced, hasbeen conceivedforthosewhoseekthe last word in luxury. Originaldesign solutionscombine elleganceand traditionalMaserati comfort withcuting-edgetechnologythatincludes mobile office and entertainment facilities. Thisspecial versionof the Quattroporte was presentedat the Detroit motor show in Januari2008 and isavailablewithautomatic transmissiononly.

The Quattroporte Collezione Cento featuresthe followingspecificitems:

•Exclusiveplatenumberedfrom1 to100 on instrumentpanel.

•Smart new ivorypaintcolor withcontrastingpin stripe.

•Chromehoneycombgrilleand side vents.

•19”or 20”ball-polishedrimsand silver colouredbrakecalipers.

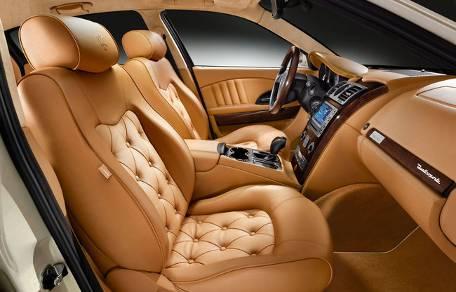

•New tanleathercolouredseatswithspecificstitchingand buttons.

•New wengewoodinlaysforsteeringwheeland centralconsole.

•New beige grainleatherheadlining.

•Boothspace withaluminiumpipingand tanleatherpockets.

•Dual10.4”touchscreenmonitorsinstalledin the front seatbacks.

•RearDVD player and commands.

•AV aux, I-podsockedand twousb portsin reararmrest.

•Wireless headphonesand bluetooth keyboard.

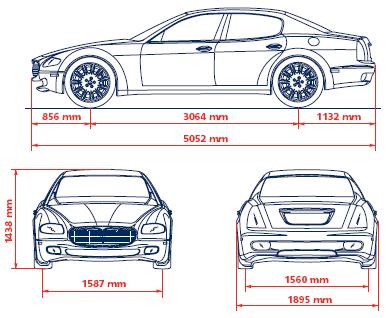

Dimensions, capacitiesand weights

WeightsQuattroporte Duoselect:

WeightsQuattroporte Automatic:

Performancesand FuelConsumptionand emissions

Quattroporte Duoselect:

Top speed: 275 km/h

Acceleration0 –100 km/h: 5.2 s

Accelerationfromstandstillto400 m: 13.3 s Accelerationfromstandstillto1000 m: 24.2 s

Fuelconsumptionand emissions(2002/80B/CE standard): cycle: 23,2 (l/100 km)

Quattroporte Automatic:

Top speed: 270 km/h Acceleration0 –100 km/h: 5,6 s

Fuelconsumptionand emissions(2004/3/CE standard): City cycle: 21,99 (l/100 km) Motorwaycycle: 10,50 (l/100 km)

Towingthe vehicle

In case itisnecessarytotowthe vehicle, screwthe towingeyecompletelytillthe end into the towingeyeattachingpoint. Put the gearboxin itsneutralposition ad disengagethe EPB (QP Automatic).

Note: ifthe vehicleistowedwiththe front wheelsliftedand the ignitionkey ON, anerror code willbestoredifthe MSP system hasnotbeendeactivated.

Note (2): towingof a Quattroporte Automaticmustbelimited(maxdistance100 km and maxspeed60 km/h) toavoidgearboxdamagedue toinsufficientlubrication.

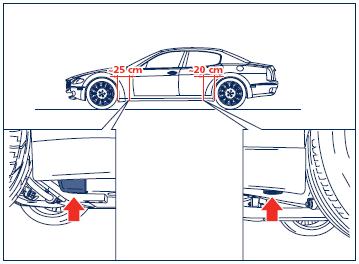

Lifting and jacking

Usethe indicatedpointsonlyforlifting or jackingof the vehicle:

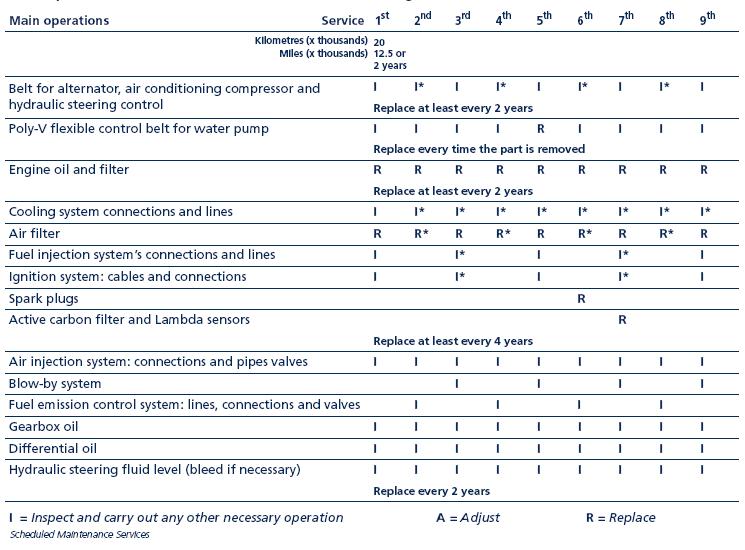

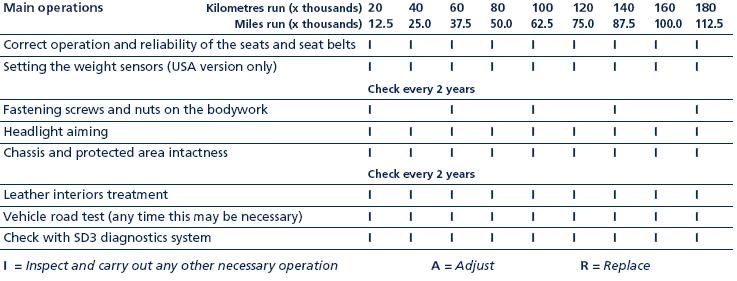

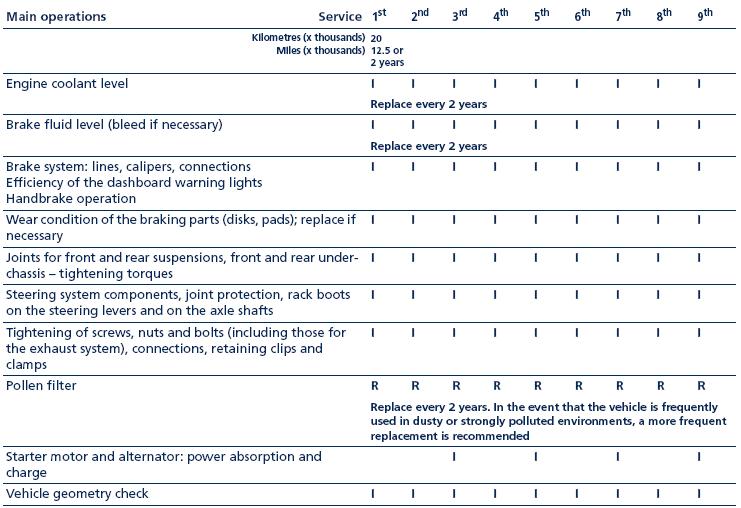

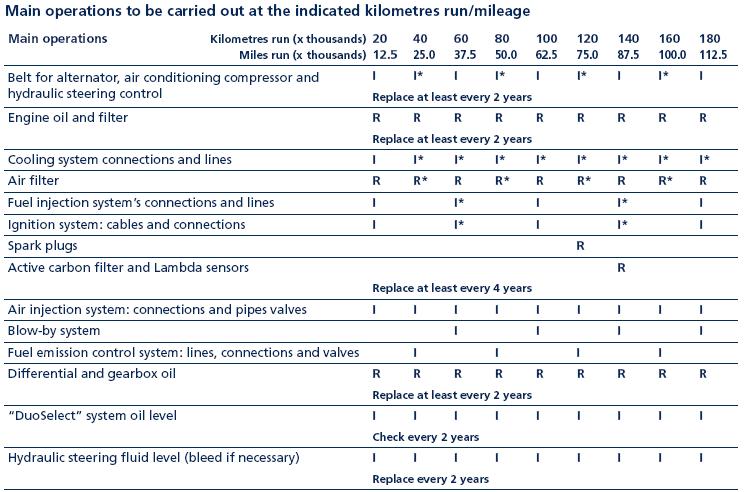

ScheduledMaintenanceQuattroporte Duoselect:

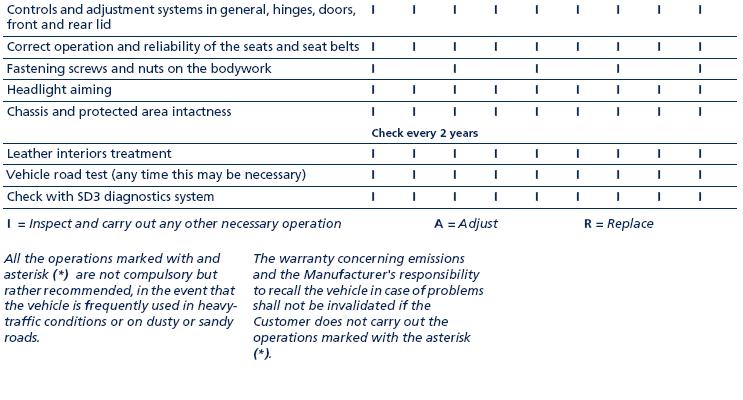

ScheduledMaintenanceQuattroporte Automatic:

Quattroporte

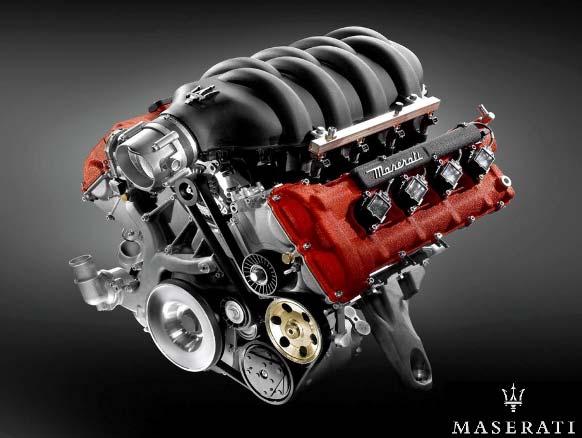

1. Engine

The Maserati Quattroporte isfittedwithtwo differentengines(F136S and F136UC). Both enginesare all-alloy90°8 cylinderV-engineswith a total displacementof 4.2 litres. The maindifferencebetweenbothenginesliesin the lubricationsystem. Power and torque figuresof bothenginesare comparable.

The F136S dry sumpengineisusedin the Quattroporte modelswithDuoselect transmission. Thisengineisanevolutionof the F136R engineasusedin the M138 models. Certainmodificationsweremadeto the cylinderheads, intakemanifoldand enginesoftware.

The F136UC wetsumpengineisusedforthe Quattroporte modelswithZF automatic transmission. Althoughthisengineisconsideredasanevolutionof the F136R/S engine, 80% of itscomponentsare new.

Bothenginescan easilybeidentifiedwhenopening the bonnetasthe dry sumpengine hasredcylinderhead covers, whileforthe wetsumpenginetheyare paintedin blue.

Forthe introductionof the Quattroporte withautomatictransmission, a new enginewitha traditional, wetsumplubricationsystem was developped. Thissolutionisconsideredas more adequateforthe applicationin Maserati vehiclesasitislessnoisyasa dry sump enginewithitsexternal, multiple oil pump. Thisenginehasmaintainedthe high power and torquevaluesof the dry sumpenginewhileat the sametime itistechnicallylesscomplex and thusmore economical. Also, reliabilityand fueleconomy of the new enginehasbeen improved.

In ordertoobtainanideal weightdistributionthe engineisput wellback in the quattroporte chassis, positionedcompletelybehind the front wheelaxis. Seechapter3 formore technicaldetailson bothengines.

Oil levelcheckand fillingproceduresare specificforbothengines

CAUTION!
