Instructions for removing and reassembling the booms

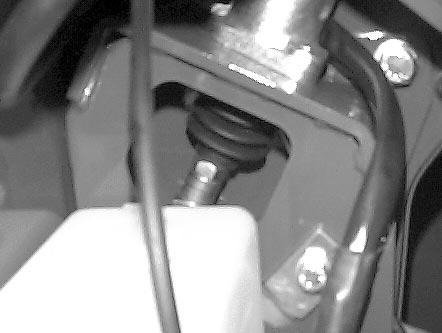

- Keep the brake levers on the axle open and then fit the cable (Ref. 1,2 - Fig. 14).

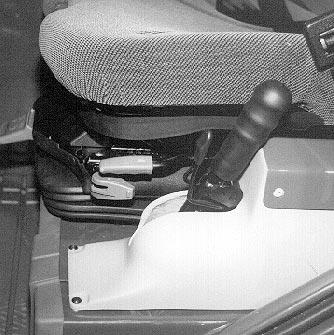

- Position the brake lever in the released position, checking on the dashboard that the light is off (microswitch not excited) (Ref. A - Fig.15).

- Turn the handbrake knob clockwise or anti-clockwiseto adjust both the stroke of the brake lever and the tension of the cable (Ref. B - Fig. 15).

ADJUSTING THE BRAKE PUMP SHOE

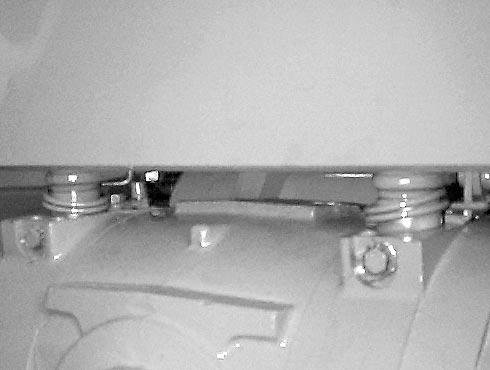

- Adjust the shoe of the brake pump so that there is 1mm of clearance between the pump and the shoe (Ref. 1 - Fig.16). 1

A

Fig. 14

2

Fig. 15

B

Fig. 16

1
