Toe-in Adjustment

TO CHECK THE TOE-IN, USE THE FOLLOWING PROCEDURE:

1. Put the tractor on ground and the wheels in the straight-ahead position.

2. Place chalk marks at points A on the centerlines of both front tires at the same height as the centerline of the hubcap.

3. Measure the distance (L1) between the chalk marks at points A.

4. Move the tractor forward a distance equal to one-half revolution of the front wheels.

5. The chalk marks will now be at points B. Measure the distance (L2) between the chalk marks at points B.

6. The figure of L1 minus L2 is the toe-in. Make sure the toe-in is adjusted properly. If not, adjust the toe-in.

TURN THE WHEELS ONE-HALF REVOLUTION

TO ADJUST THE TOE-IN, USE THE FOLLOWING PROCEDURE:

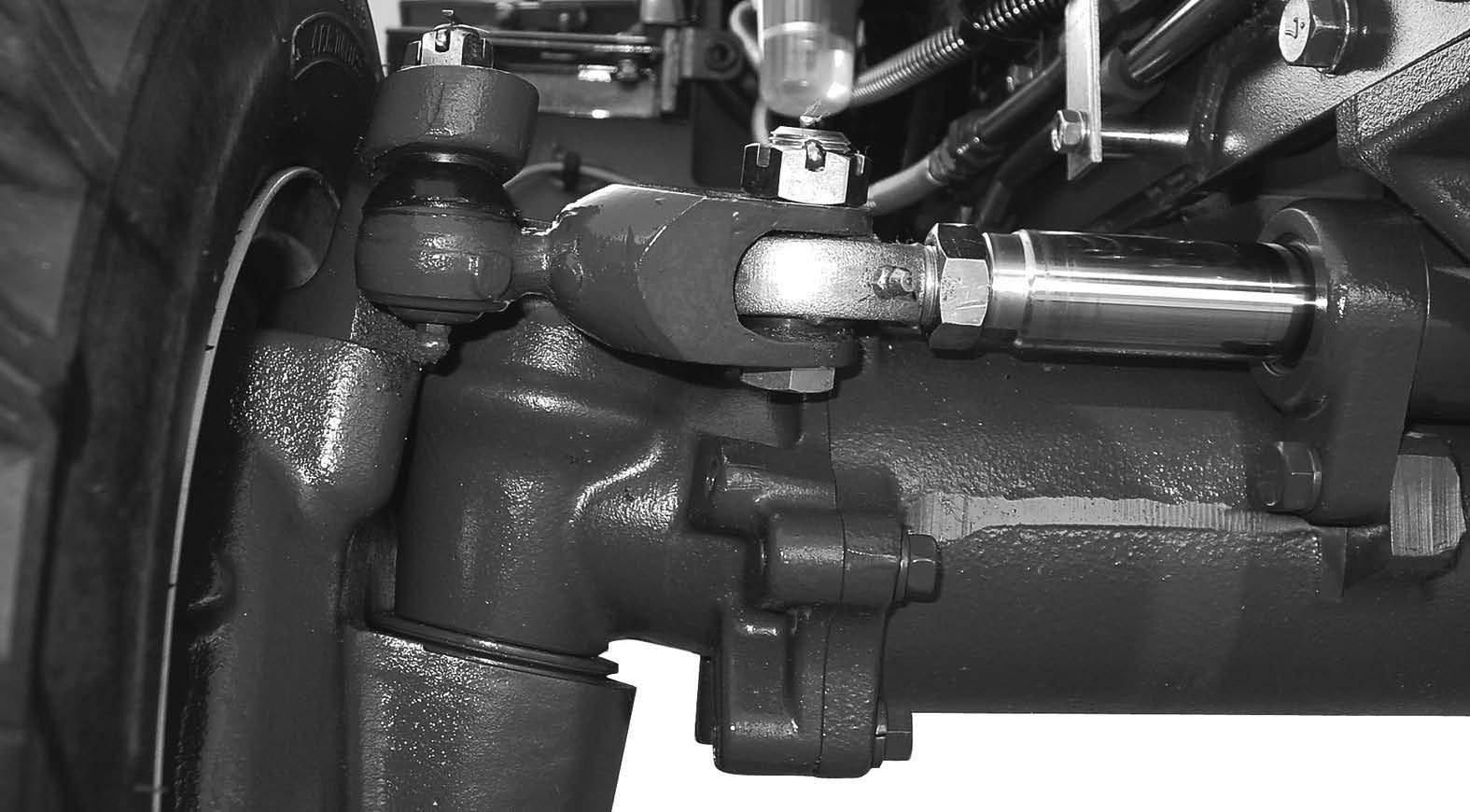

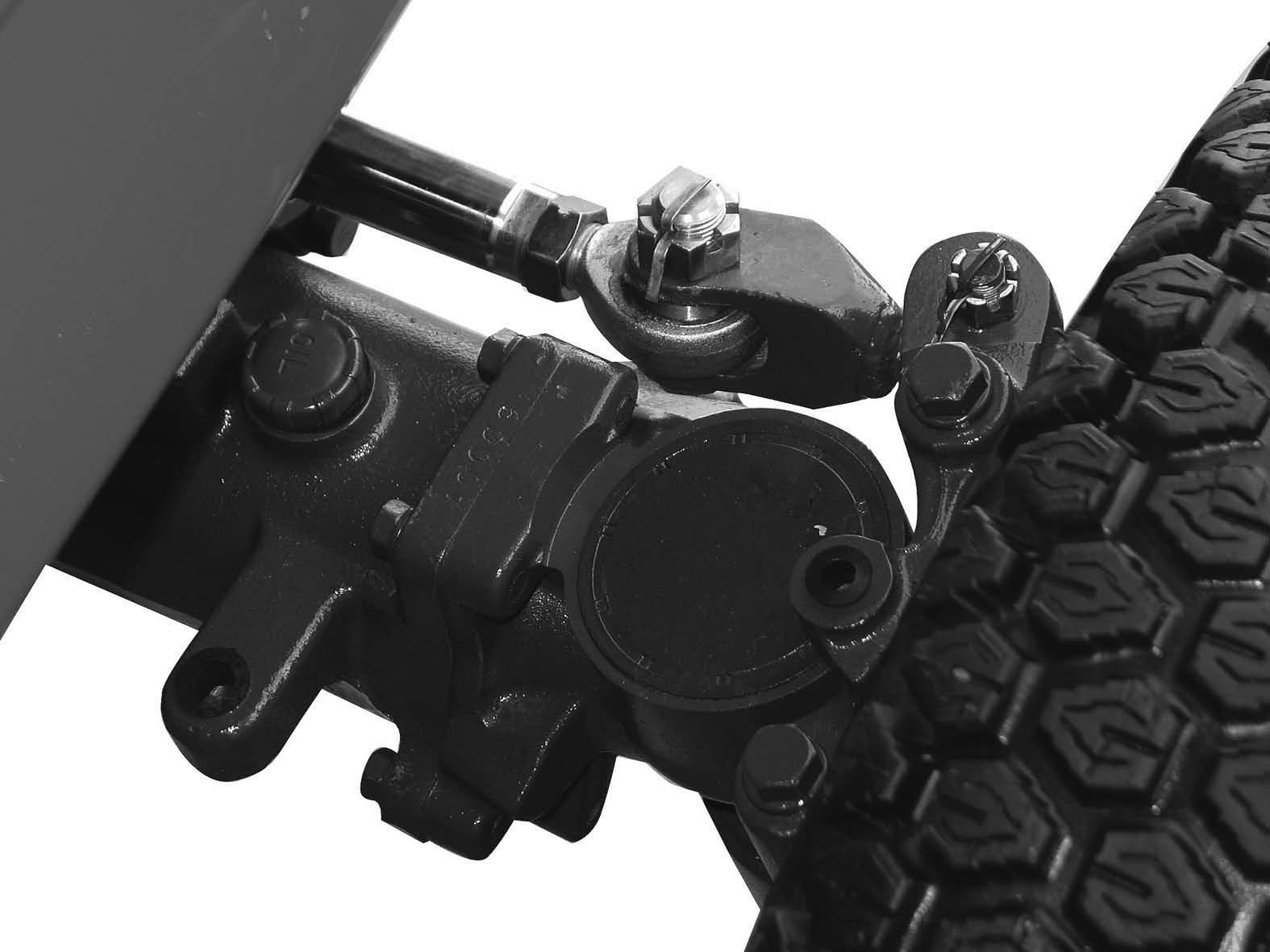

Adjust the rods to be equal the dimensions A on both side.

1. Loosen the lock nut at the rod end.

2. Turn the rod end to shorten or lengthen.

3. Lock the lock nuts.

Tightening torque ……………………………………147 to 166 N-m(109 to 123Lbft)

TIRE SIZE COMBINATIONS-MFD

Your MFD Tractor must use front and rear tire combinations that are correctly matched. The use of recommended tire combinations will give maximum tractor performance, extended tire and reduced wear on drive train components.

IMPORTANT: The tire size combinations shown below are specified to provide matched ground speeds of the front and rear tires. Mixing worn and new tires or tires of different diameters or loaded radii can give incorrect ground speed match. When replacing tires, consult your Dealer.

MODEL Max XL 28 Max 26 XL

Tire Size

AGTires(Front/Rear)7-12/9.5-16

IndustrialTires(Front/Rear)23 x 8.50 - 12 /12 x 16.5
