CLUTCH PEDAL ADJUSTMENT

Service Specifications

Clutch Pedal Check and Adjustment Interval…………… Every 50 hours of operation or yearly Free Pedal Movement………………………………………………………… 20-30mm (0.8-1.2 inch)

Free Movement Adjustment

Clutch pedal free movement is very important and must be checked at the recommended intervals. If there is no free movement, the clutch disc will wear quickly. If there is too much free movement, the clutch will not disengage correctly and the transmission will be difficult to shift.

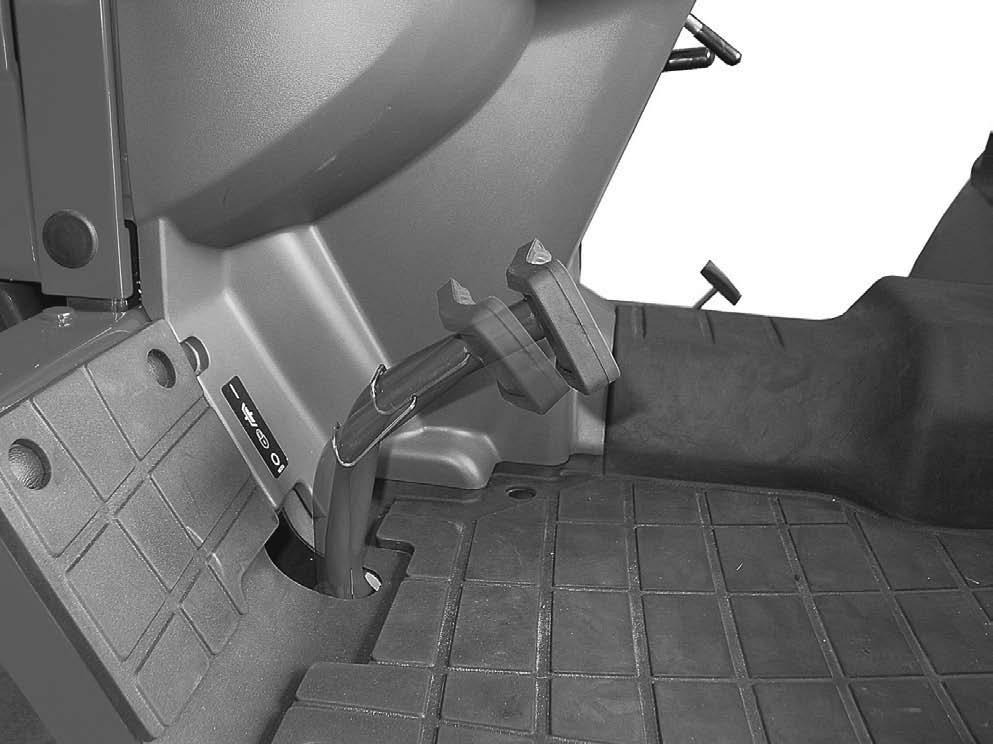

1.Put the tractor on level ground, move the range shift lever in the L position, apply the park brake, stop the engine and adjust the clutch pedal free movement as follows.

2.Push the clutch pedal down by hand, to measure the amount of pedal free movement.

3.The pedal free movement must be with in the specification shown above.

4.Loosen the lock nut.

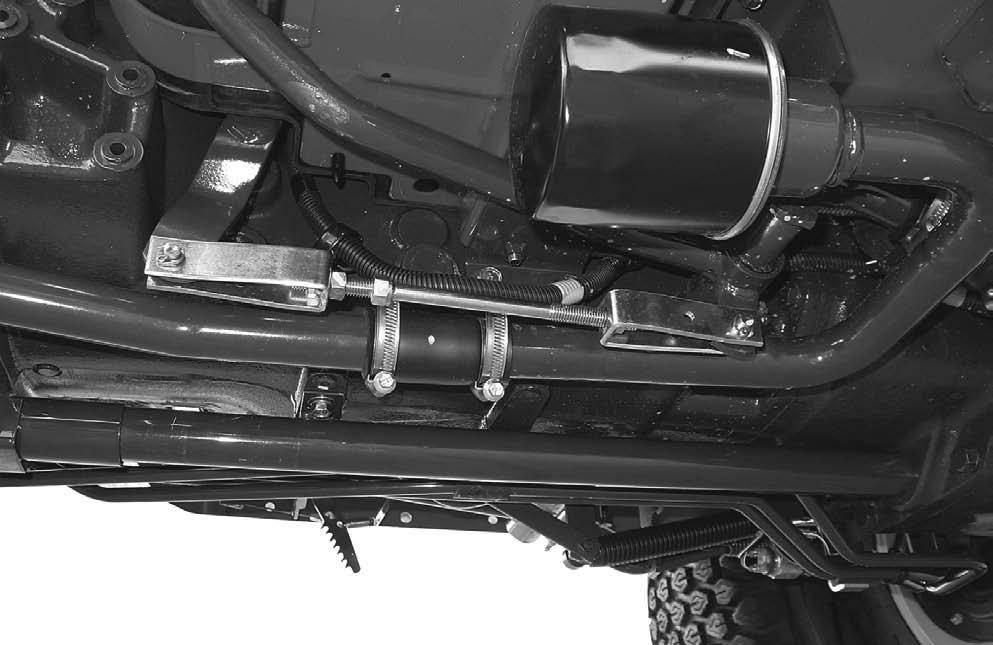

5.Adjust the pedal free movement as necessary with the adjusting nuts on the clutch rod.

6.To increase free movement, turn the nuts at inside.

7.To decrease free movement, turn the nuts at outside.

20~30mm

8.Tighten the lock nuts to the torque of 44 to 54 N-m (32 to 40 Lbft).
