Emission Warranty

Important

The following warranty applies to the engines that have been certified to the emission regulation of the U.S. Environmental Protection Agency.

Warranty coverage

Mitsubishi Heavy Industries, Ltd. warrants to the first owner and each subsequent purchaser of a new non-road diesel engine that the emission control system of your engine:

is designed, built and equipped so as to conform at the time of sales with all applicable regulation of the U.S. Environmental Protection Agency. This engine is a non-road certified to requirements in 40 CFR Part 1039.

This 1990 amendments to the federal Clean Air preempt California control of emissions from new farm and construction under 175 horse powers are beyond ARB's authority to regulate . The U.S.EPA has sole authority to establish emission standards for these preempt engines used in new farm and construction equipment under 175 horsepower.

is free from the defects in material and workmanship which will cause the engine to fail to meet these regulations within the warranty period.

Warranty period

The emission warranty period is shown below.

However, if your engine warranty period is longer than the emission warranty period, the emission warranty period extends to same as the engine warranty period.

Below warranty period shall begin on the date the engine is delivered to the first owner.

Warranted parts

Mitsubishi Heavy Industries, Ltd. warrants the parts which will increase the emission of pollutants when they become defective.

The followings are examples.

I. For exhaust emissions, emission-related components include any engine parts related to the following systems:

1. Air-induction system.

2. Fuel system.

3. Ignition system.

4. Exhaust gas recirculation systems.

II. The following parts are also considered emission-related components for exhaust emissions: devices.

III. The following parts are considered emission-related components for evaporative emissions: 1.

*As related to the evaporative emission control system.

IV. Emission-related components also include any other part whose only purpose is to reduce emissions or whose failure will increase emissions without significantly degrading engine/equipment performance.

Limited warranty

Refer to "LIMITED WARRANTY".

Introduction

This instruction manual contains information on the operation, lubrication and maintenance of your tractor. The information contained is comprehensive and essential, and is designed to assist you, even if unexperienced, in utilizing your tractor. How well your tractor continues to give satisfactory performance depends greatly upon the manner in which it is operated. It is, therefore, requested that this manual be read carefully and kept ready for use so that the operation and maintenance service will properly be carried out in order to keep the tractor in top mechanical condition at all times. Should any information as to your tractor be required, consult your local dealer or distributor stating the machine and engine serial numbers of the tractor concerned. We are sure you will be happy with your tractor.

NOTE: Expressions such as LEFT, RIGHT, FRONT, or REAR used in this manual should be understood in accordance with following rules:

FRONT means the front grill end while REAR means the lifting arm end of the tractor. LEFT or RIGHT means the left or right hand side of the tractor looking forward from operator’s seat.

Turn Leftturn Right

Serial Numbers

Serial Number

Write your machine Model Name and Serial Numbers of major components on the lines provided. If needed, give these numbers to your dealer when you need parts or information for your machine.

1. TRACTOR MODEL NUMBER

2. TRACTOR SERIAL NUMBER

3. ENGINE SERIAL NUMBER

4. ROPS SERIAL NUMBER

Serial Number Locations

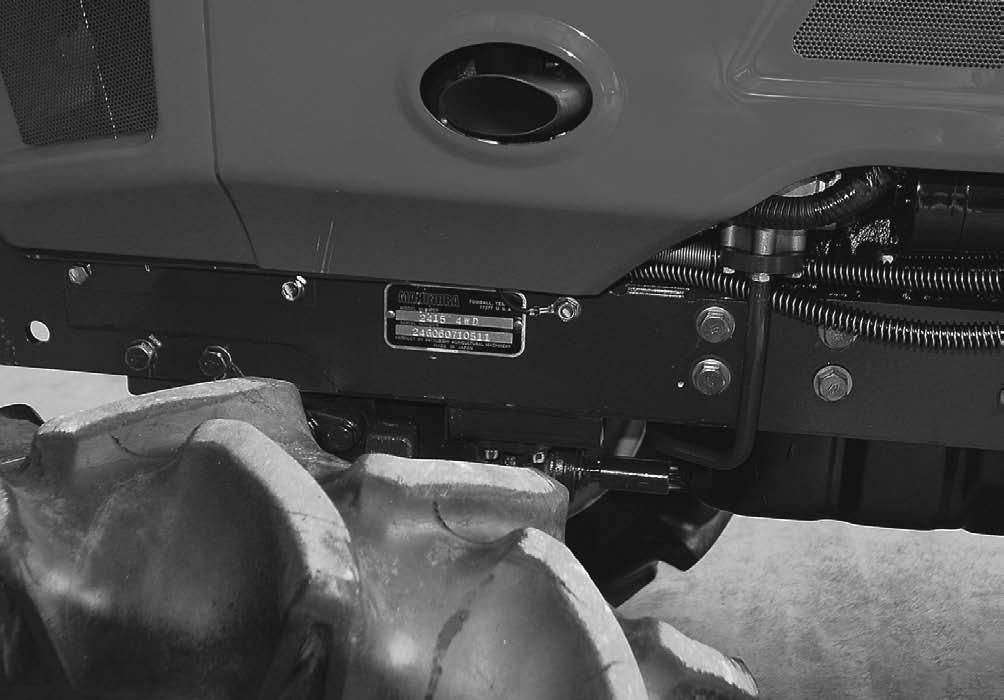

ROPS SERIAL NUMBER PLATE TRACTOR MODEL NUMBER AND SERIAL NUMBER PLATE

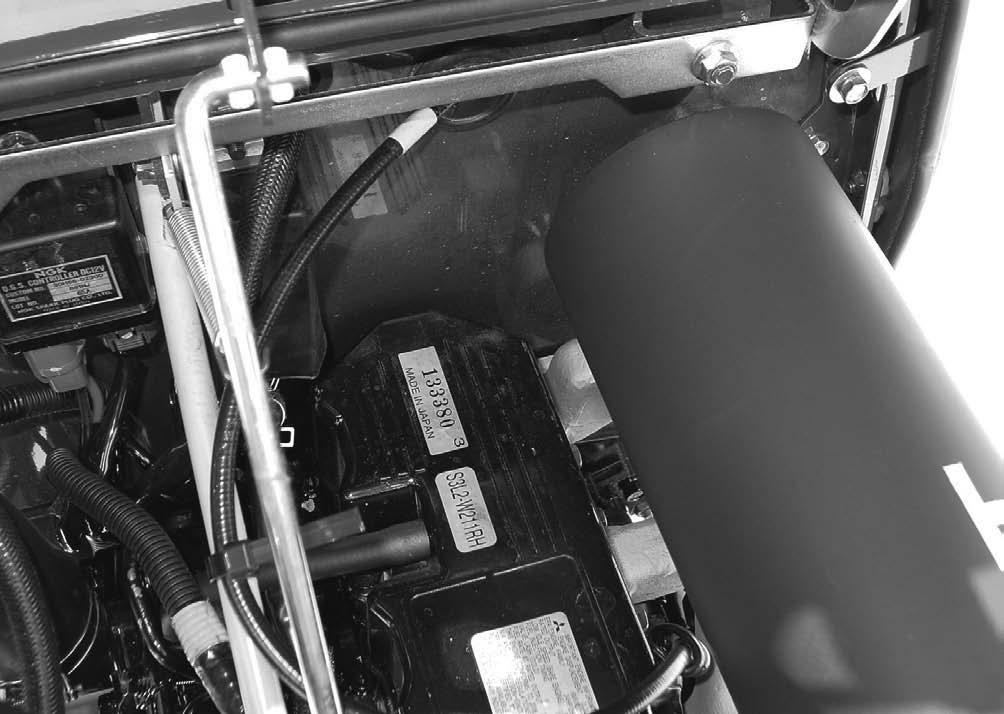

ENGINE SERIAL NUMBER

General Table Of Contents

Safety/Decals ……….….….….….….….….….….….….….….…..….….….….….….….1-14

Specifications ……….….….….….….….….….….….….….….….….….….….….….15-19

Instruments/Controls ….….….….….….….….….….….….….…….….….….….….20-36

Operating Instructions ….….….….….….….….….….….….….…….….….….….….38-59

Field Operation ….….….….….….….….….….….….….….….….….….….…….….60-69

Tires/Wheels/Spacing/Ballast .….….….…..…….….….….….….….….….….….….70-79

Lubrication/Filters/Fluids ….….….….….….….….….….….….….….….….….….….….….….80-106

Maintenance/Adjustments ….….….….….….….….….….….….….….….….….….….….….107-114

Electrical System ….….….….….….….…..….…….….….….….….….….….….….….….115-121

Storage ….….….….….….….….….….….….….….….….….….….….….….….….….….….122-123
