Controls

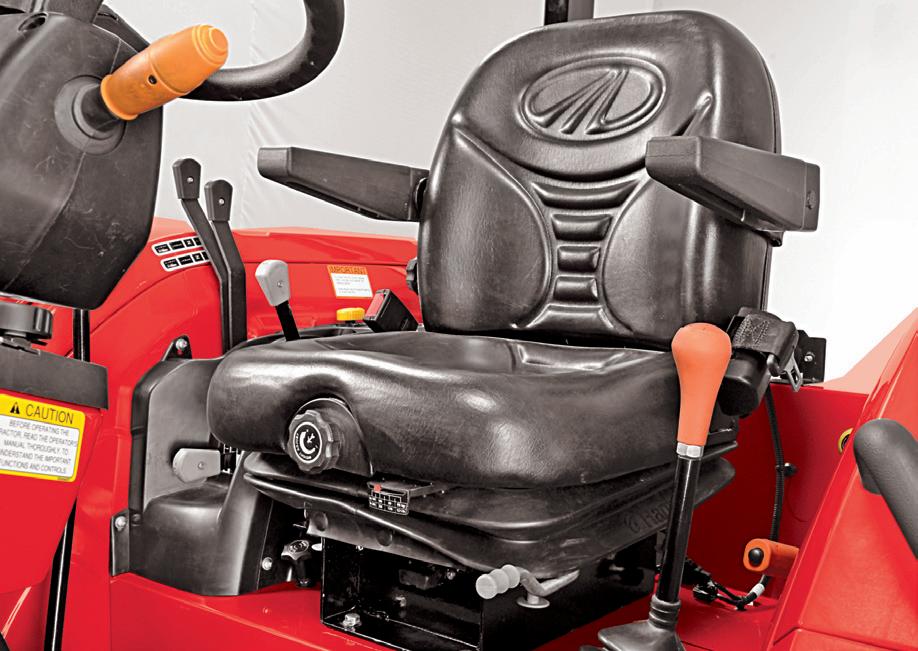

Operator Seat

The operator seat can be adjusted for position, tilt and weight of operator. These adjustments are to be done prior to starting the engine.

Adjusting Seat Position

1. Sit on the operator seat.

2. Lift the lever (D) upwards & slide the seat forward or rearward to desired position.

3. Release lever to lock seat in position. Ensure that all controls can be accessed easily.

Weight Adjustment

To achieve optimum seat suspension, turn the knob (B) till the weight indicator registers your approximate weight on indicator (C).

Tilt Adjustment

To achieve optimum seat tilt, turn the knob (F) till the desired angle of tilt is achieved.

Using Seat belt

Use a seat belt when you operate with roll over protective structure (ROPS) to minimise chance of injury from an accident such as an overturn. Do not jump if machine tips.

Fasten Seat belt

1. Pull belt end (A) across operator lap.

2. Install tab into buckle (G). A click will be heard when the tab locks into the buckle.

Release Seat belt

Press red button (E). The seat belt will automatically retract.

Attempting to adjust the seat while driving the tractor may cause the operator to lose control of the tractor.

Do not use seat belt if operating without a ROPS or with an optional folding ROPS in the folded position.

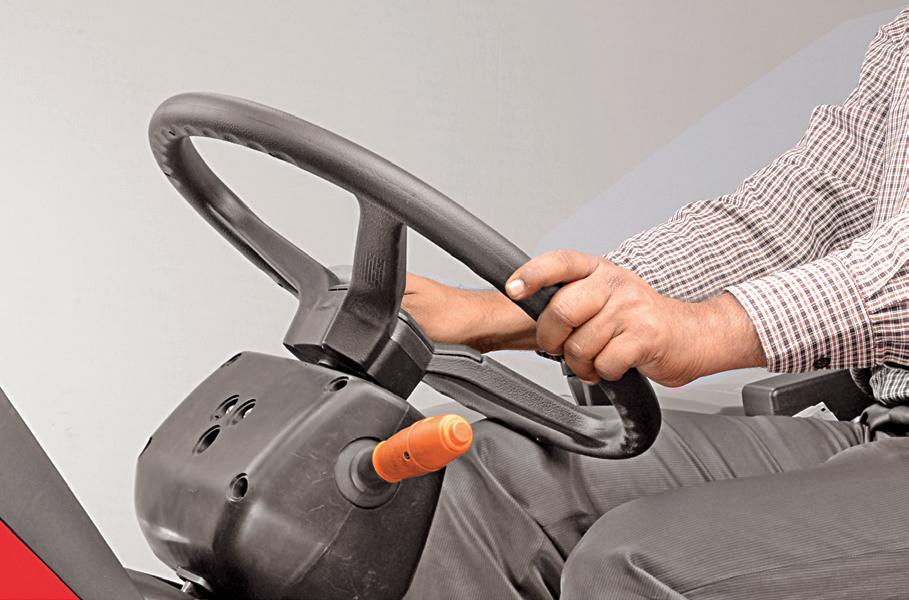

Tilt Steering

The steering can be tilted towards or away from the operator as per the need and convenience of operator and is recommended to be done in tractor parked condition.

Tilt Adjustment

1. Park the tractor safely.

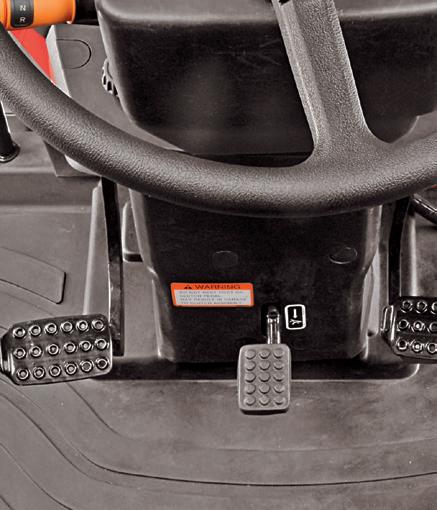

2. Press the tilt steering pedal (H) by foot.

3. Tilt the steering wheel to desired position.

4. Release foot pressure on the pedal.

Attempting to adjust the steering wheel while driving the tractor may cause the operator to lose control of the tractor. Lock the steering wheel in position before driving the tractor. H
