Toe-in Setting & Brake Pedal Free Play

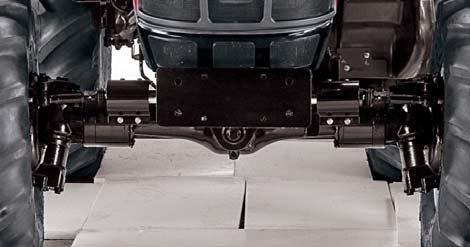

Front Axle - Front Wheel “Toe-in” Check

In the event of the tie rod setting being interfered with, it is necessary to adjust the TOE-IN. Before measuring and adjusting the TOE-IN, ensure the front wheels are in the straight ahead position and the front axle is not tilted. After adjusting the front wheel tread and with all connections secured, the front wheel Toe-in shall be as follows,

Model

3640/36500-0.230-6

Measure the distance between the outer edges of the wheel rims at the same height as the hub caps. Mark the point measured and turn the wheels half revolution so that the marked points are at the rear. Measure again the distance between these two points and this distance must be the same as measured before without variance. To adjust the TOE-IN shorten or extend the tie rod clockwise or anti-clockwise.

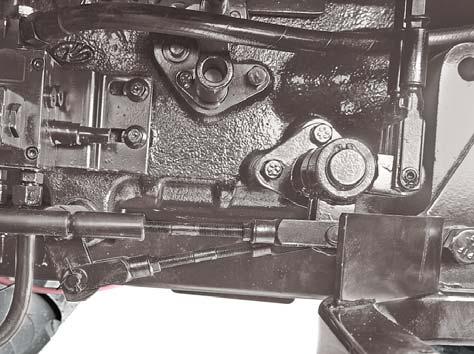

Check and Adjust Brake Pedal Free Play

Measure free play of pedal stroke (A). Ensure free play is within specified limits. If free play is not within specified limits, adjust brake linkage as shown below.

1.Loosen jam nut (B).

2.Turn the Turn Buckle (C) anti-clockwise to increase play and clockwise to decrease play.

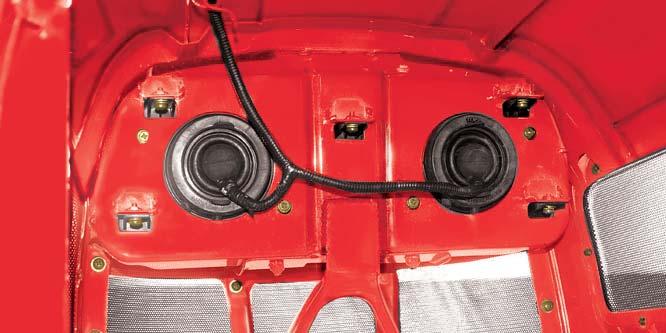

Head Lamp Adjustment

1.Tighten screws (W), (X), (Y) and (Z) fully.

2.Turning screw (W) & (Y) in anti-clockwise direction will raise the Beam.

3.Turning screw (X) & (Z) in anti-clockwise direction will lower the Beam and move towards Right of the operator’s view.

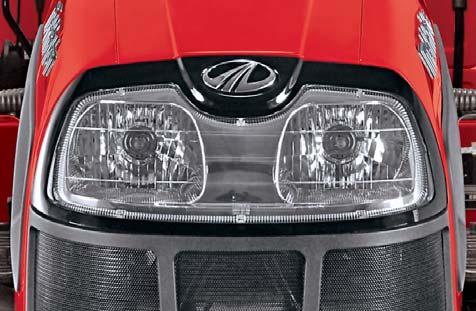

Aiming Head Lamps

1.Park tractor on level ground, with lights 9.8 ft. (3 m) from a wall.

2.Measure centre of head lamp to ground height (A). Place a strip of masking tape (B) on the wall at the same height.

3.Place a piece of tape, folded in the middle to make a point, on the top front center of the Hood.

4.Using the Hood tape as a guide, sight across steering wheel and Hood to locate tractor center line. Mark tractor center line (C) on wall.

5.From tractor center line (C), mark a point (D) 5 inch. (127 mm) out in each direction.

6.Turn light switch to dim position.

7.Locate point (E) of bright light projected by each lamp by adjusting screws (W), (X), (Y) and (Z) as required. Cover other lamps, if necessary.
