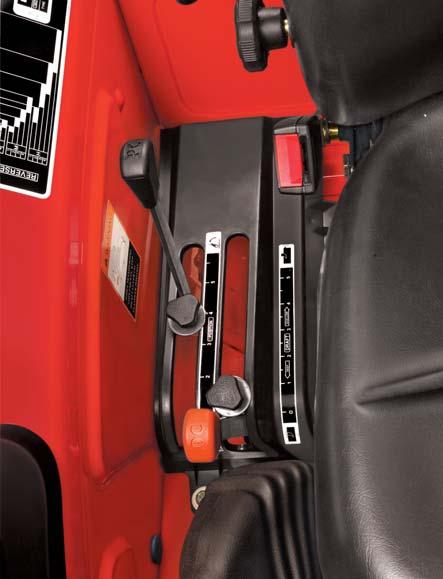

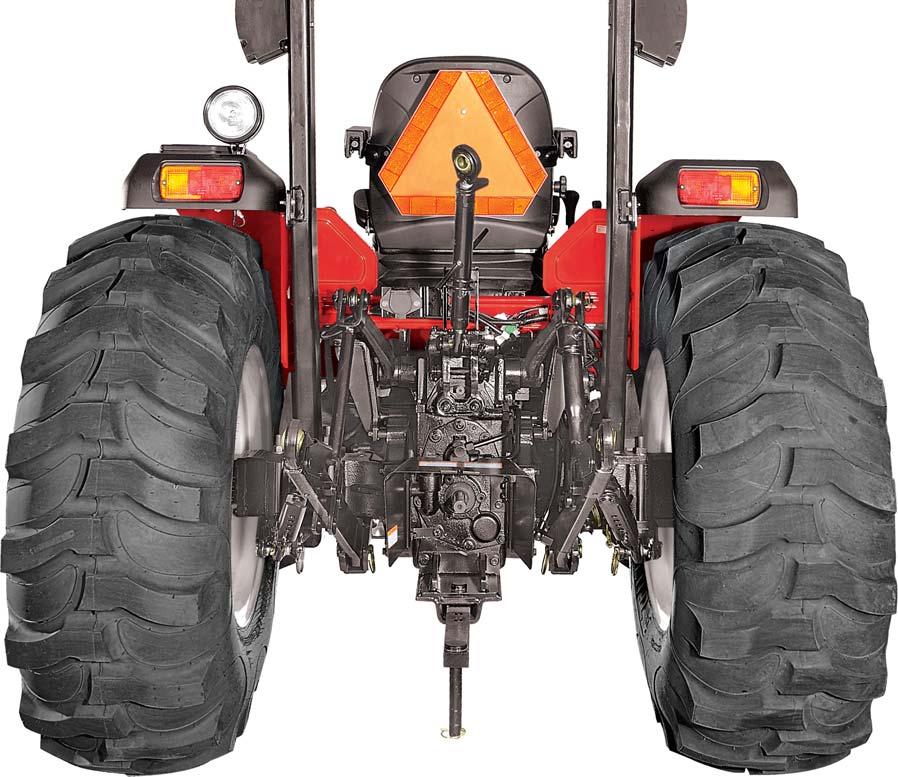

Controls

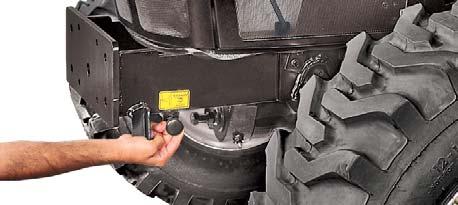

Loader

An easy option of connecting the loader valve is provided and the same can be connected as follows :

1.Remove the U-Tube (A) from elbows (B) and (C).

2.Connect pressure line of Loader valve to elbow (B).

3.Connect High Pressure Carry-Over line (HPCO) of Loader valve to elbow (C).

4.Remove the plug from adapter (D). Connect tank line of Loader valve to adapter (D).

Opening the Hood

Hood is hinged at rear side, near the fire wall (at junction of bonnet and firewall) and opens towards operator as follows:

1.Pull the knob (E). The hood will unlock.

2.Lift the hood upwards by hand. A gas spring provided inside will assist in minimising the effort for lifting.

Closing the Hood

1.Ensure that side panels are properly locked.

2.Press the hood downwards till it gets locked.

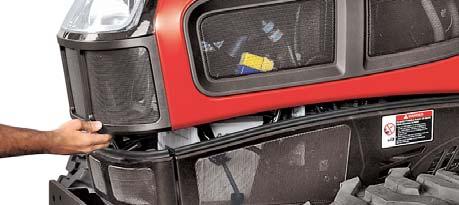

Removing The Side Panels

1.Open the hood.

2.Lift the side panels gently out of locating front and rear pins.

Assembling The Side Panels

Locate the side panels in front and rear locating pins.

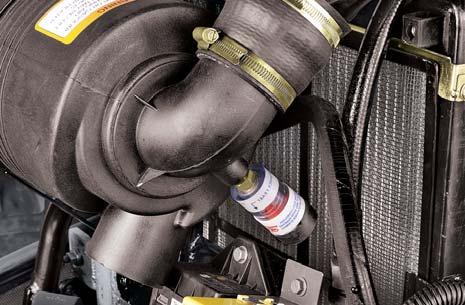

Air Cleaner Clog Indicator

It is fitted on air cleaner outlet connecting to air intake manifold. This is a mechanical type indicator set to 80 milli-bar vacuum in intake system. The red band will be visible in the transparent cover, when the 80 milli-bar vacuum is reached. At this stage air cleaner has to be cleaned / Serviced.

After servicing, reset the clog indicator by pressing rubber cap. (As marked in the figure).
