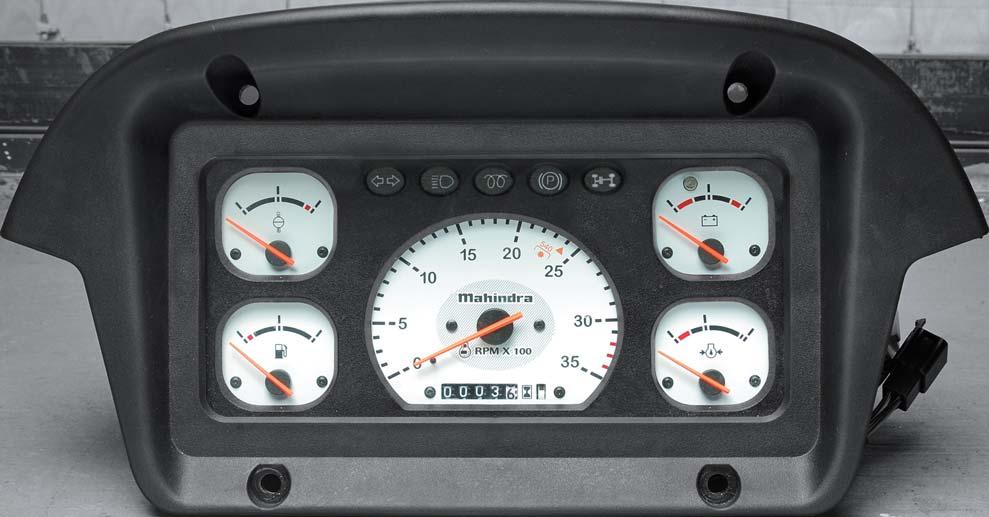

Instrument Cluster

The Instrument Cluster is a descriptive unit that gives the user various indications about the working of the tractor and its various features. It consists of the following.

Engine RPM Meter

This meter gives the number of Revolution Per Minute of the engine. To arrive at the RPM value at any given point of time, multiply the pointer reading by 100.

Example : If the reading shows 15, the actual engine RPM value = 15 x 100 = 1500.

PTO 540 RPM Mark

This mark is located in the Engine RPM Meter. It indicates Engine RPM at which the PTO shaft will rotate at 540 RPM.

Hour Counter

This is a Digital Hour Counter located in the RPM meter. It is operated by pulses coming from Alternator when the engine is running. Hour counter displays the cumulative engine running hours.

Do not drive the vehicle when Engine RPM is in Red Zone for longer duration.

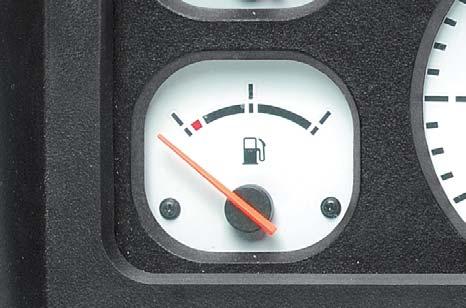

Fuel Gauge

The Fuel Gauge indicates quantity of fuel available in the fuel tank. Refill the fuel tank when the pointer lies in Red Band.

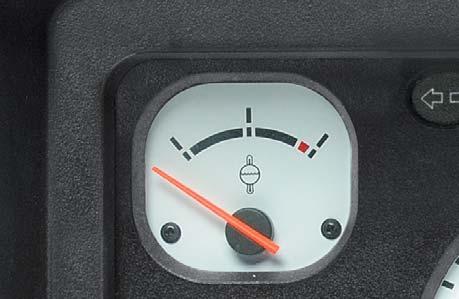

Coolant Temperature Gauge

This gauge indicates coolant temperature of the engine. When the pointer lies in RED band :

1.Indicates excessive engine coolant temperature.

2.Get the cause identified.

3.Further engine operation should be done only after elimination of the problem.
