Brake Pedal Free Play

Check and adjust brake pedal free play

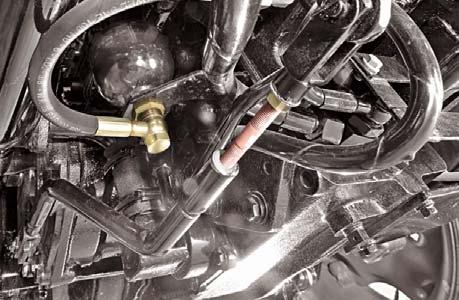

Measure free play of pedal stroke (A). Ensure free play is within specified limits. If free play is not within specified limits, adjust brake linkage as shown below.

Free Play - Distance 1.57 to 1.77 inch (40 to 45 mm)

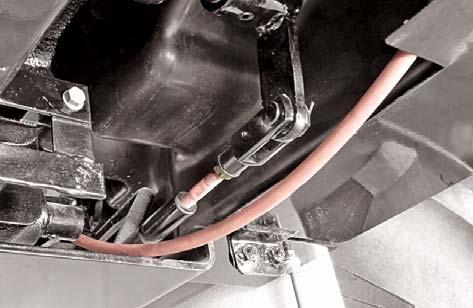

1.Loosen jam nut (B).

2.Turn the Turn Buckle (C) anti-clockwise to increase play and clockwise to decrease play.

Head Lamp Adjustment

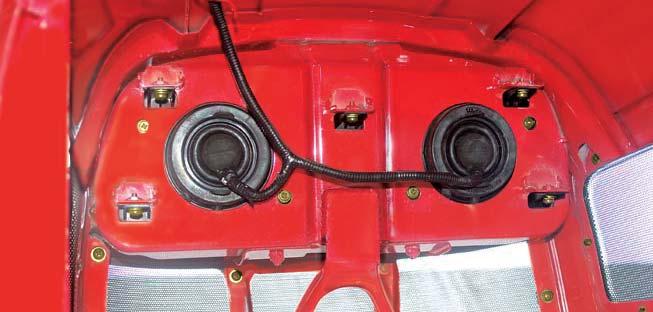

1.Tighten screws (W), (X), (Y) and (Z) fully.

2.Turning screw (W) & (Y) in anti-clockwise direction will raise the Beam.

3.Turning screw (X) & (Z) in anti-clockwise direction will lower the Beam and move towards Right of the operator’s view.

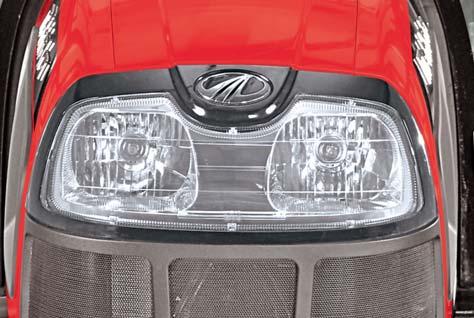

Aiming Head Lamps

1.Park tractor on level ground, with lights 9.8 ft. (3 m) from a wall.

2.Measure centre of head lamp to ground height (A). Place a strip of masking tape (B) on the wall at the same height.

3.Place a piece of tape, folded in the middle to make a point, on the top front center of the Hood.

4.Using the Hood tape as a guide, sight across steering wheel and Hood to locate tractor center line. Mark tractor center line (C) on wall.

5.From tractor center line (C), mark a point (D) 5 inch. (127 mm) out in each direction.

6.Turn light switch to dim position.

7.Locate point (E) of bright light projected by each lamp by adjusting screws (W), (X), (Y) and (Z) as required. Cover other lamps, if necessary.
