HITCH SYSTEM ADJUSTMENTS

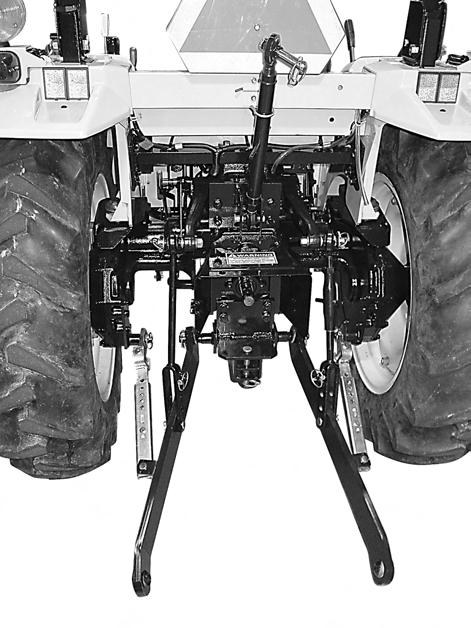

The upper and lower links must be adjusted correctly so the implement can work at the needed depth and the links are free to move up and down with the shape of the ground.

LIFT LINKS

STABILIZERS

LOWER LINKS

Lift Links

LOCK NUT

TURN BUCKLE

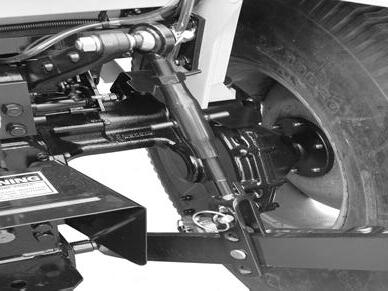

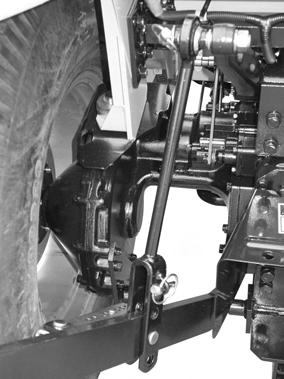

Connect the lift links to the tractor and to the lower links. Make sure the lift links are installed on the proper Sides as shown.

RH LIFT LINK

LH LIFT LINK

The RH side lift link is adjustable by turnbuckle to obtain the desired position of the hitch point. Turn the turnbuckle clockwise to shorten the link or counterclockwise to lengthen the link.

IMPORTANT: After the lift link is adjusted, make sure the locknut is tightened against the turnbuckle.
