BRAKE PEDAL ADJUSTMENT

Service Specifications

Brake Pedal Check and Adjustment Interval… Every 200 hours or yearly Free Pedal Movement Specification… 35 to 45mm (1.38 to 1.77inch)

Brake pedal free movement is very important and must be checked at the recommended intervals. If there is no free movement, the brake disks will wear quickly

If there is too much free movement, accidents may occur. If there is not the same free movement between LH pedal and RH pedal, it may cause serious accidents.

Put the tractor on level ground, move the range lever in the L position. Stop the engine.

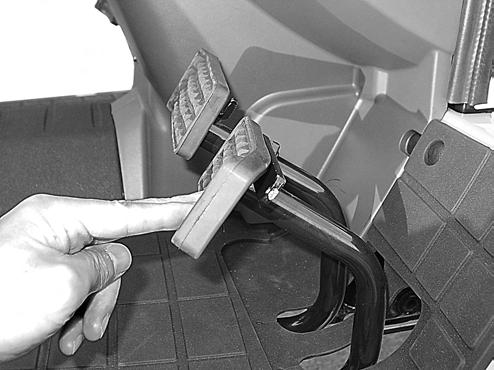

35~45mm at the brake pedal. With this free movement is obtained, tighten the lock nut.

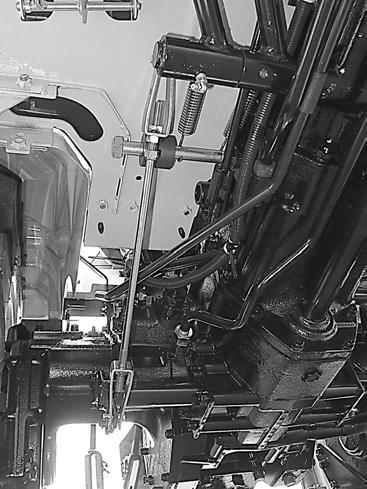

Loosen lock nut and rotate the brake rod to make a free play of 35 to 45 mm (1.38 to 1.77 inch.)

Confirm that the right and left brakes operate simultaneously by running the tractor. If not, adjust both of them by means of the brake rods. ADJUSTING
