POWER TAKEOFF (PTO):GEAR

Mid PTO (OPTION)

The Mid PTO has a 25.4 mm(1 inch) diameter 15 spline output shaft.

ENGAGE THE MID PTO AS FOLLOWS:

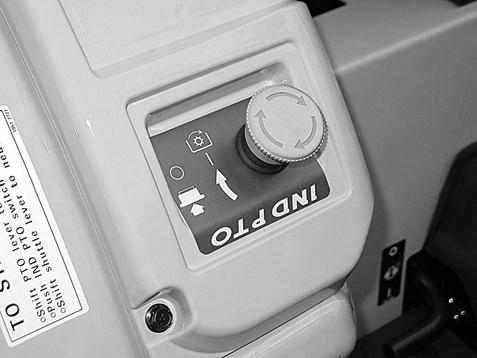

1. Confirming disengage the clutch, pushing the PTO switch.

2. Turn right PTO switch to engage the PTO clutch. (turning the PTO shaft)

3. Move the Mid PTO control lever to the ON position.

DISENGAGE THE MID PTO AS FOLLOWS:

1. Push the PTO switch to disengage the PTO clutch. (stop the turning of PTO shaft)

2. Move the Mid PTO control lever to the OFF (Engine Start) position.

NOTE: Keep the Mid PTO control lever in the OFF (Engine Start) slot when starting the engine and when the PTO is not being used. The following table shows the required engine speed to get the required Mid PTO output shaft speed. Push the PTO switch in the emergency. The rotation of PTO stops.

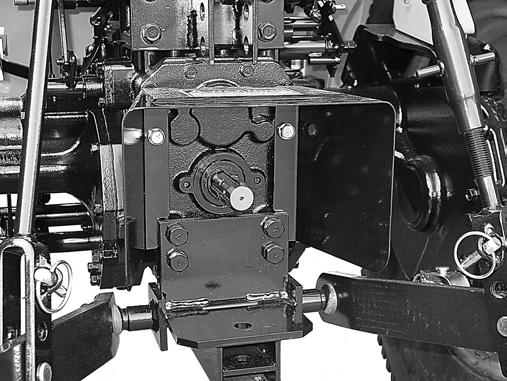

Power Takeoff Guards

All tractors have a safety guard for the Rear PTO shaft and safety cover for the Mid PTO shaft.

Whenever a PTO driven machine is in operation, the PTO guard must be in place for most operations to prevent injury to the operator or bystanders. Where attachments, such as pumps, are installed on the PTO shaft (especially if the tractor PTO guard is moved upward or removed) extended shielding equivalent to the PTO guard must be installed with the attachment. Install the PTO guard to its original position immediately when the attachment is removed.
