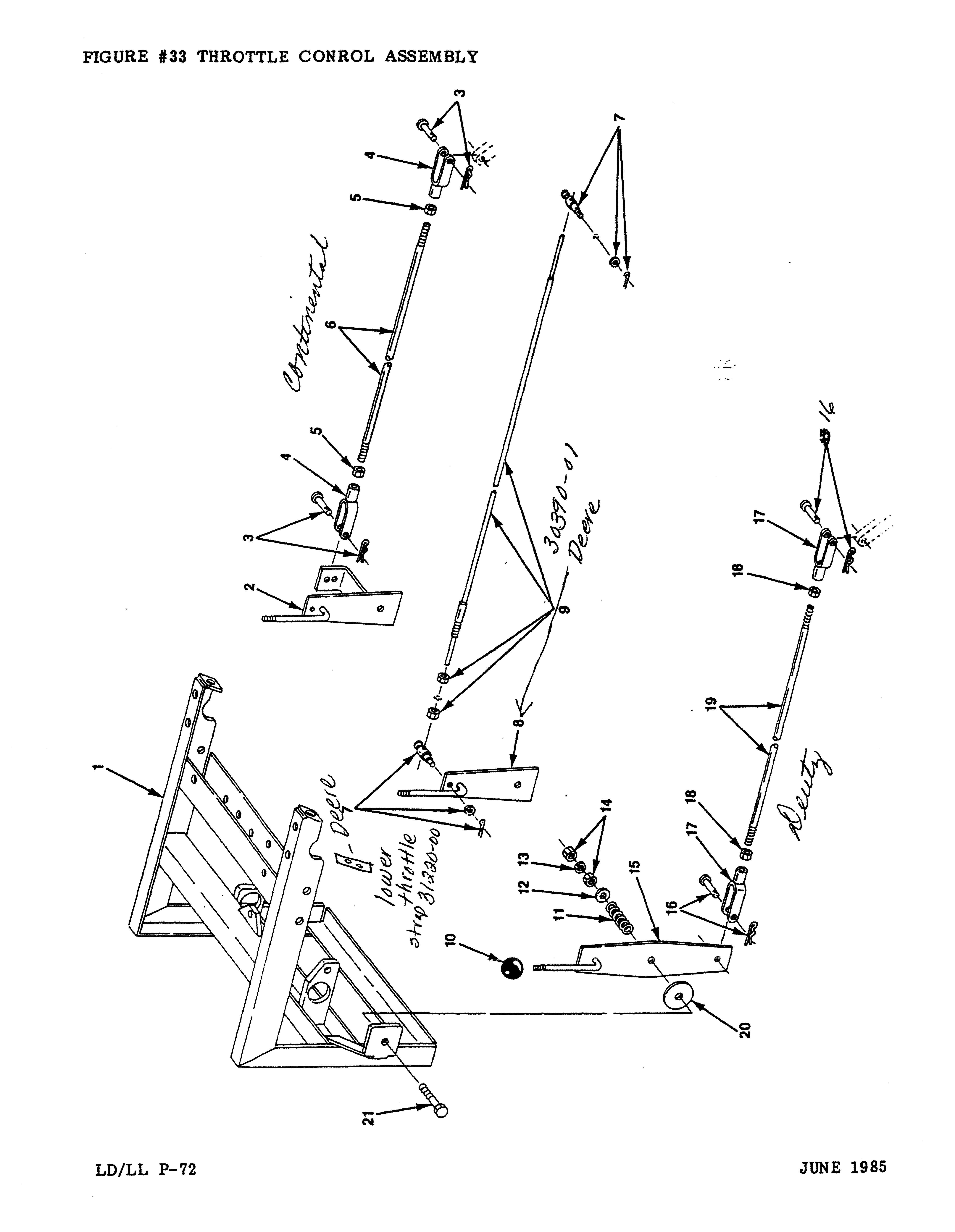

2 Throttle control assem bly 33

Fig. Item # # PART # NAME 32 1 A-14864-00 Knob 32 2 B-30857 -00 Lever 32 3 P-ll020-27 Bearing 32 4 P-1l160-14 Fitting, grease 32 5 A-30508 -00 Pin 32 6 P-ll025-15 Ring, retainer 32 7 A-14861-oD Spring 32 8 P-11016-06 Washer, fiat 32 9 P-ll073-23 Pin, roll 32 10 A-30510 -bD Tube 32 11 P-l1160-11 Fitting, grease 32 12 A-ll057-02 Key 32 13 B-30727-6D Rod 32 14 P-ll020-16 Bearing 32 15 0-30371-00 Bracket 32 16 P-1l261-06 Nut 32 17 P-l1009-06 Lockwasher 32 18 A-14813-oo Link 32 19 B-30731-eO Crank, bell 32 20 P-ll020-21 Bearing 32 21 A-30652 Adapter 32 22 P-l1016-03 Washer 32 23 P-1l143-10 Screw, cap 32 24 P-ll025-12 Ring, retainer 32 25 P-11857-03 Washer, fiat 32 26 A-11936-04 Shim .030" 32 26 A-11936-05 Shim .092" 32 26 A-11936-08 Shim .060" 32 27 B-30771-W' Arm 32 28 A-30289-0 D Link 32 29 P-ll025-12 Ring. retainer 32 30 P-1l857-03 Washer, fiat 32 31 A-30729-bO Cam 32 32 P-1l890-05 Pin, dowel 32 33 P-1l857-03 Washer, fiat 32 34 P-1l936-08 Bearing, thrust 32 35 A-14814-02 Spacer 32 36 P-ll020-17 Bearing 32 37 A-30288-01 Crank, bell 32 38 P-llOI6-05 Washer fiat 32 39 P-11429-03 Pin, cotter 32 40 P-1l135-04 Pin with cotter pin 32 41 P-22120 -cD End, rod 32 42 P-1l486-06 Nut 32 43 A-30416 _cC Rod 32 44 A-14814-01 Spacer 32 45 A-30651-01 Pin with R 'rings 32 46 A-30653 -00 Link 32 47 P-ll020-17 Bearing 32 48 A-30288-02 Crank, bell 32 49 P-l1016-05 Washer, fiat 32 50 P-11429-03 Pin, cotter 32 51 P-1l135-04 Pin with cotter pin 32 52 P-22120-0D End, rod 32 53 P-1l486-06 Nut 32 54 A-14811-01 Rod Assy. Unit 1 1 2 1 1 2

1 1 1 1 1 1 1 2 1 1 LL-40 1 LL-40 1 LL-40 1 LL-40 1 LL-40 1 LL-40 1 LL-40 1 LL-40 1 LO-50 2 LO-50 As Req'd As Req'd /is Req'd 1 LO-50 2 LO-50 1 LO-50 1 LO-50 1 LO-50 1 LO-50 1 LO-50 1 LO-50 1 LO-50 1 LO-50 1 LO-50 1 LO-50 1 LO-50 2 LO-50 2 LO-50 2 LO-50 1 LO-50 1 LL-40 2 LL-40 2 LL-40 1 LL-40 1 LL-40 1 LL-40 1 LL-40 2 LL-40 2 LL-40 2 LL-40 1 LL-40
