2 8 TM27 gas engine installation 21

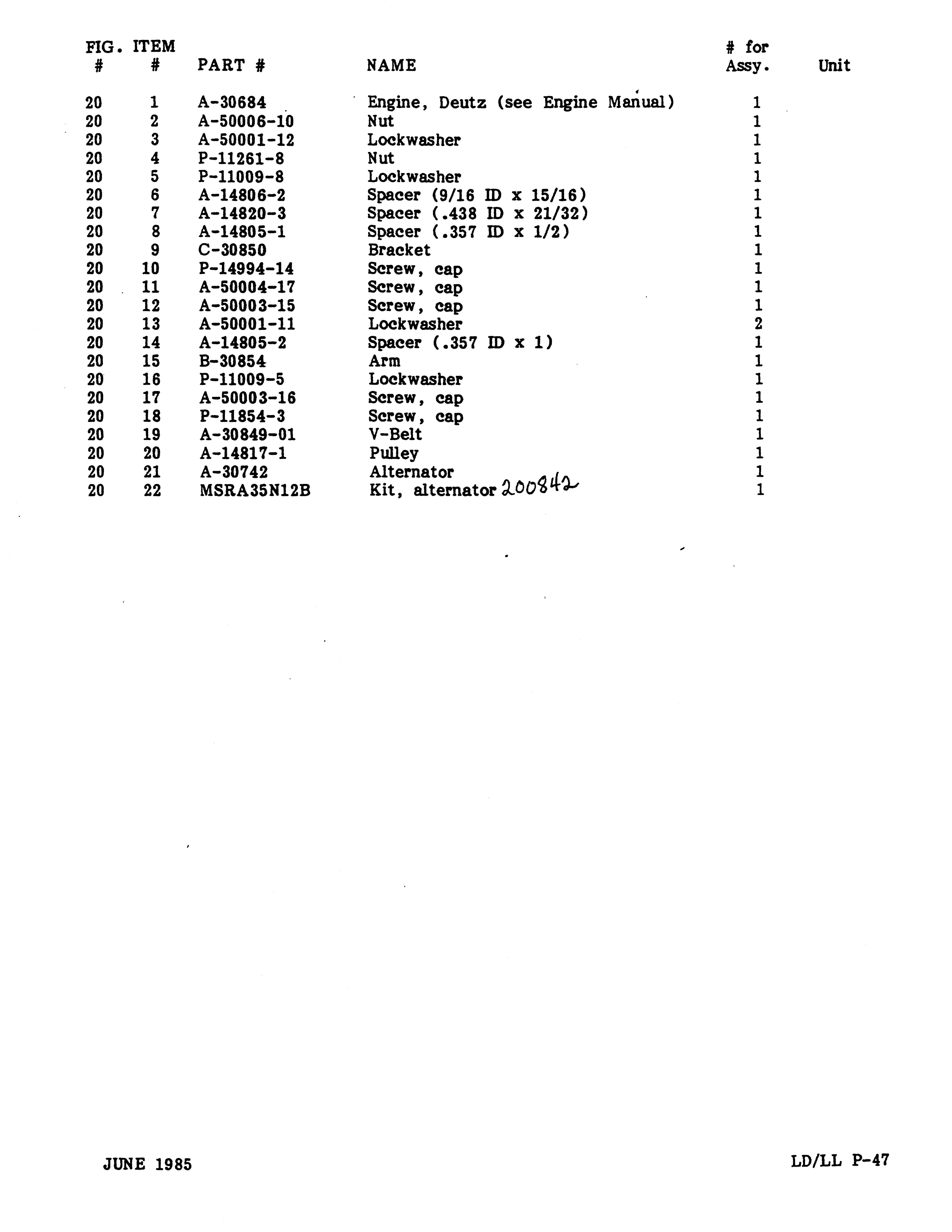

Assy • unit 20 1 A-30684 Engine, Deutz (see Engine • Manual) 1 20 2 A-50006-10 Nut 1 20 3 A-50001-12 Lockwasher 1 20 4 P-1l261-8 Nut 1 20 5 P-l1009-8 Lockwasher 1 20 6 A-14806-2 Spacer (9/16 to x 15/16) 1 20 7 A-14820-3 Spacer (.438 to x 21/32) 1 20 8 A-14805-1 Spacer (.357 to x 1/2) 1 20 9 C-30850 Bracket 1 20 10 P-14994-14 Screw, cap 1 20 11 A-50004-17 Screw, cap 1 20 12 A-50003-15 Screw, cap 1 20 13 A-50001-11 Lockwasher 2 20 14 A-14805-2 Spacer (.357 to x 1) 1 20 15 B-30854 Arm 1 20 16 P-l1009-5 Lockwasher 1 20 17 A-50003-16 Screw, cap 1 20 18 P-1l854-3 Screw, cap 1 20 19 A-30849-01 V-Belt 1 20 20 20 21 A-14817-1 A-30742 Pulley Alternator 4 1 1 20 22 MSRA35N12B Kit, altemator 1

15

26 '\'(1:- . rl3S 33 '.
