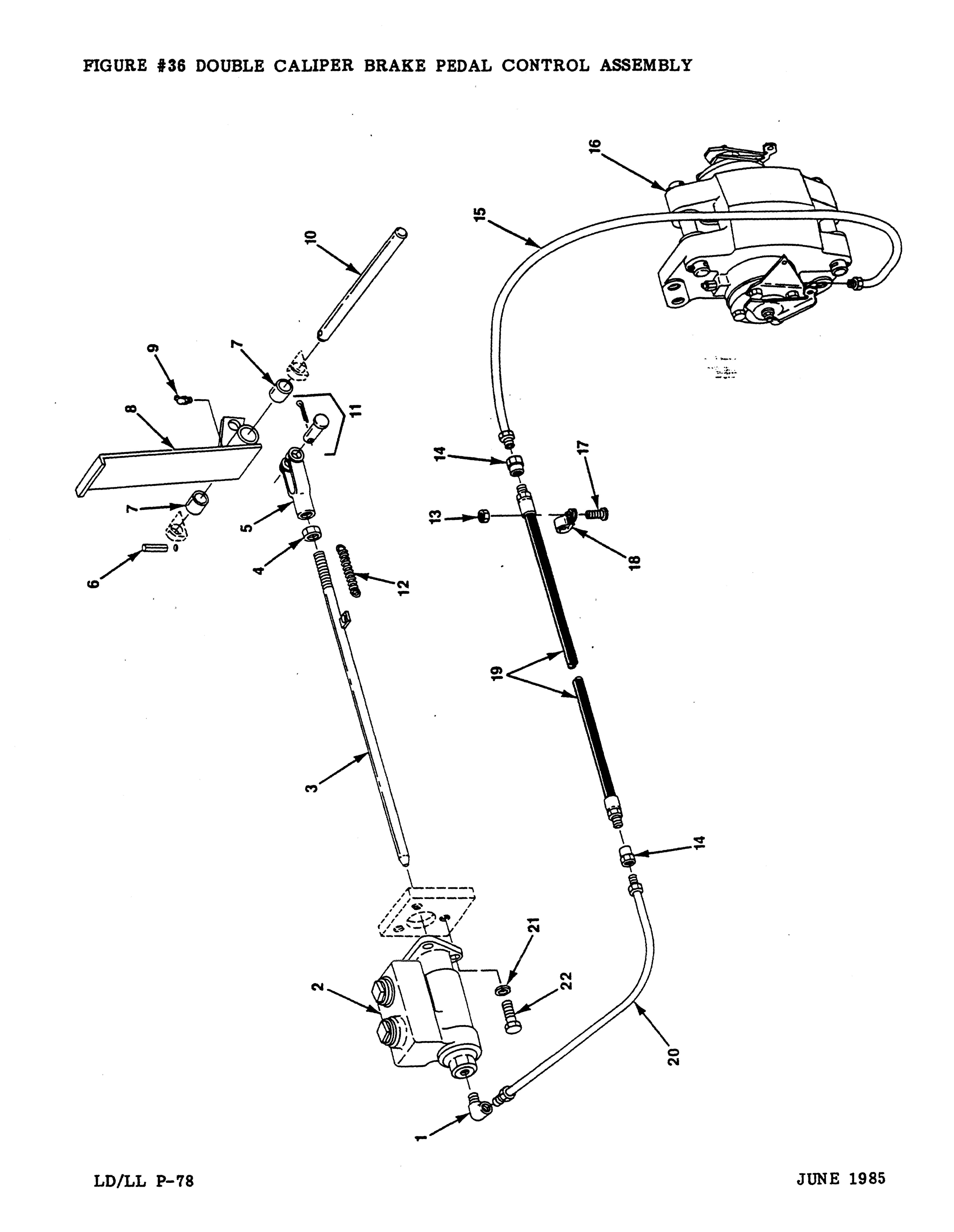

2 15 Double caliper brake pedal control assy. 36

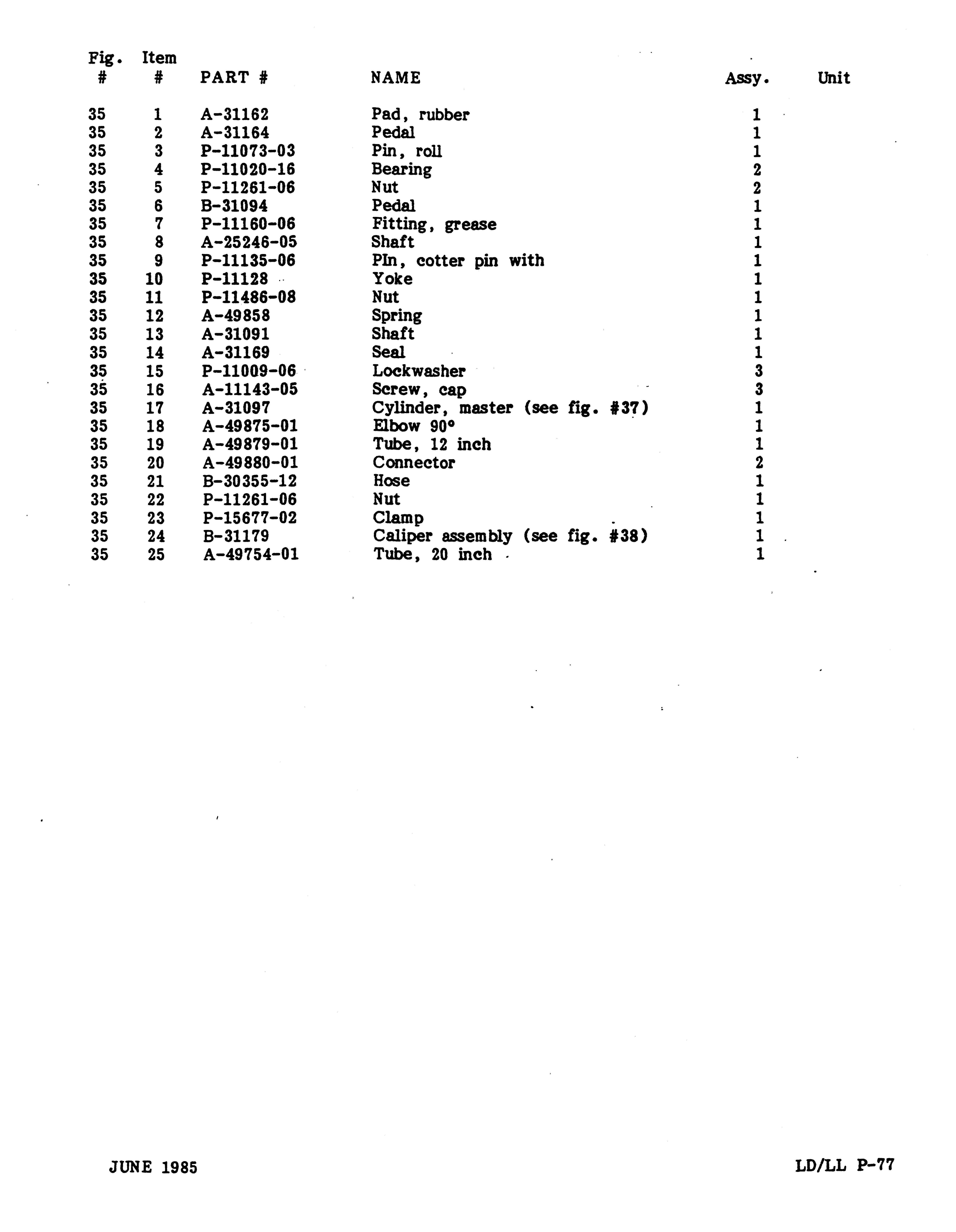

35 1 A-31162 Pad, rubber 35 2 A-3l164 Pedal 35 3 P-ll073-03 Pin, roll 35 4 P-ll020-16 Bearing 35 5 P-11261-06 Nut 35 6 8-31094 Pedal 35 7 P-11160-06 Fitting. grease 35 8 A-25246-05 Shaft 35 9 P-11135-06 PIn. cotter pin with 35 10 P-11128 .. Yoke

1 1 1 2 2 1 1 1 1 1

35 11 P-11486-08 Nut 35 12 A-49858 Spring 35 13 A-31091 Shaft 35 14 A-31169 Seal 35 15 P-llOO9-06 Lockwasher

1 1 1 1 3 35 16 A-11143-05 Screw, cap 3 35 17 A-31097 Cylinder, master (see fig. t31) 1 35 18 A-49875-01 Elbow 900 1 35 19 A-49879-01 Tube, 12 inch 1 35 20 A-49880-01 Connector 2 35 21 8-30355-12 Hose 1 35 22 P-11261-06 Nut 1 35 23 P-15677-02 Clamp 1 35 24 B-31179 Caliper assembly (see fig. 138) 1 35 25 A-49754-01 Tube, 20 inch . 1
