TOOL SUPPLY VALVES (OPTIONAL

A24690

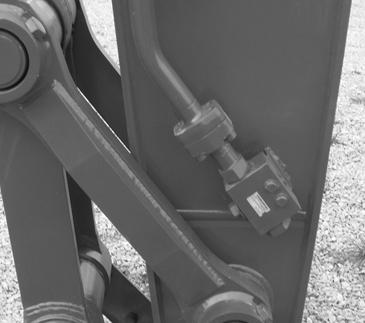

Located on the end of the arm, these two valves are used to ensure oil supply to optional tools, for example, hydraulic breakers, etc... These valves have two positions.

CD00E055

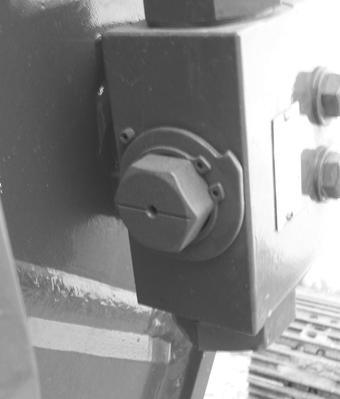

To open the flow to the tool turn the shut-off valve 90° counterclockwise till the stop hits. In this position, oil is supplied to the tool.

1

CD00E056

The line (1) across the shut off valve shows the position of the valve. In this position the shut-off valve is closed.
