DECALS

WARNING: Make sure that the decals are perfectly legible, clean them regularly and replace decals that are destroyed, lost, painted over or no longer legible. When parts bearing decals are replaced, be sure to put new decals on each new part.

KHP1525 When you clean the decals, use only a cloth, water and soap. Do not use solvents, gasoline, etc. This chapter only covers decals relating to safety and machine operation and servicing. For information on all decals on the machine, consult your LBX LinkBelt Parts Manual. New decals can be obtained from your authorized LBX Link-Belt distributor. The part numbers are shown at the bottom of each decal.

CS96D164

This decal located in the cab advises to engage the gate lock when leaving the cab for any reason.

STANDARD PEDALS

STANDARD AND SINGLE PEDAL TRAVEL

KHP1498-00 161468A1

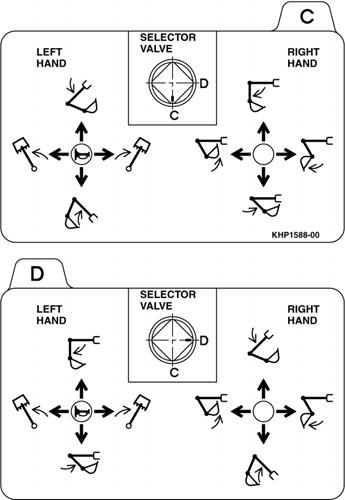

These decals located in the cab show the function of the travel control levers and pedals. This card located in the cab shows the function of the left-hand and right-hand control levers. See “Left-hand control lever” and “Right-hand control lever” in the “Controls/Instruments/Accessories” Section.

1 1

BD01E033

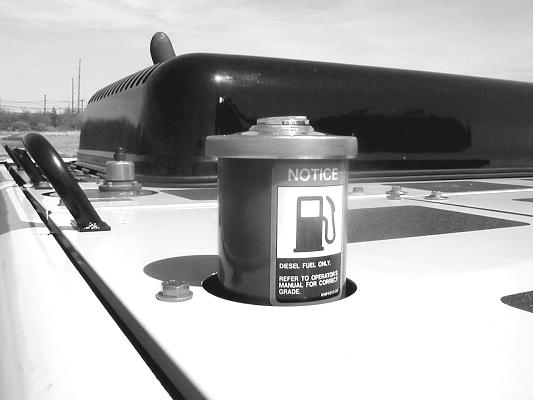

This decal instructs you to use diesel fuel only.

2 A B C

KHP1537 These three labels located in the back right cab window show the following: (A) This decal warns of Electrocution Hazard. (B) This decal warms of improper use of the excavator can cause death or injury. (C)This decal draws attention to the fact that, in certain positions, there can be interference between the attachment tool and the operator’s compartment.

3

3

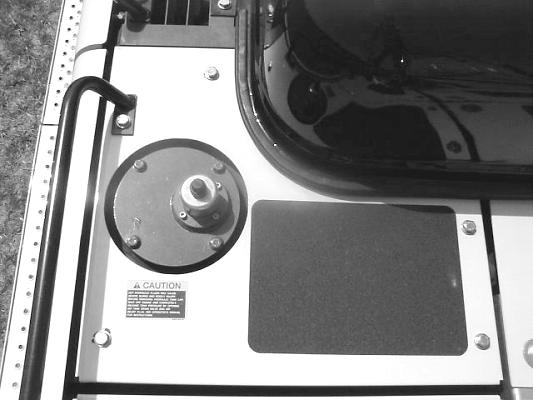

KHP1542-00 / BD01E066 This decal advises that before removing the hydraulic tank cap the pressure should be relieved. See “Releasing Pressure” in the Hydraulic System.

s

4

4

KHP1534-00 / BD01E034 This decal warns of the hazards associated with removing the radiator cap before relieving the pressure.

5 5

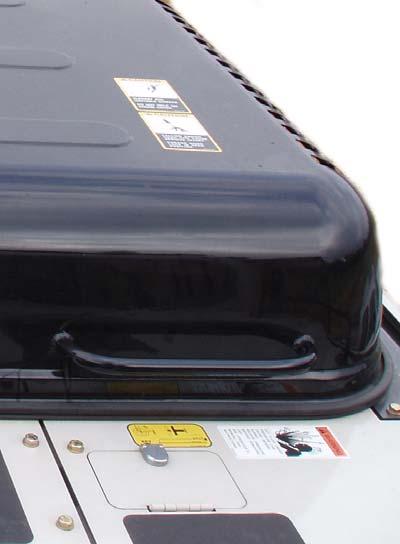

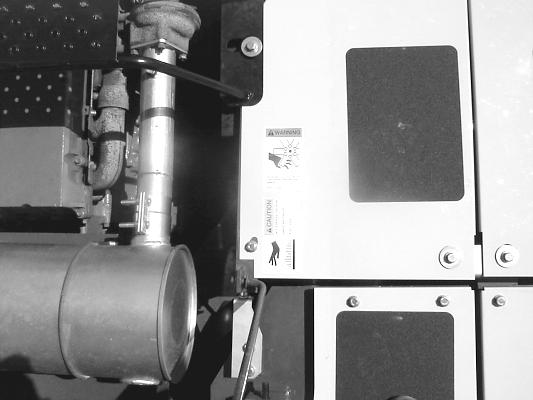

BD01E035 / KHP1525-01 / KHP1533-00 These decals warn that rotating parts and components may be dangerous and some surfaces associated with the engine compartment may be hot to the touch and cause burns.

6

6

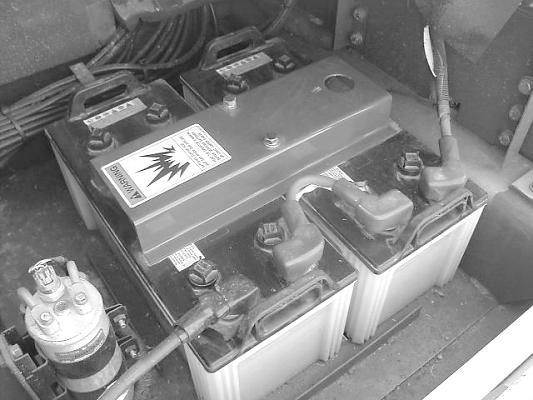

KHP1536-00 / BD01E065 This decal warns of the hazards that may be encountered when servicing the batteries and using jumper cables.

BS00M134 This decal Warns the operator that grease may be under Heavy spring pressure. Pressure should be released before disassembly. This decal is located on both tracks.

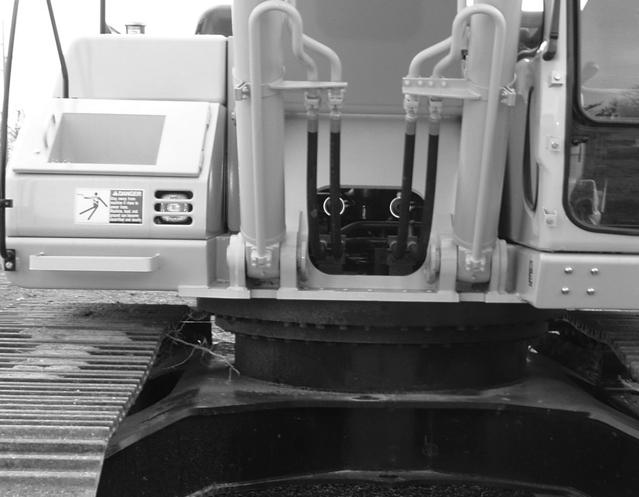

BS00M141 This decal warns of Danger and to keep clear of swinging upperstructure to prevent serious bodily injury. This decal is located on both sides of the counterweight.

This decal reminds the operator proper procedures for checking the hydraulic oil level. This decal is located inside the back left side door.

This decal warns of the danger if standing too close to a machine that becomes electrified.

7

KHP1015-00

7

8

KHP1011-00 These decals warn the operator of slippery surfaces and also to engage the hood lock.

KHP1360-00 This decal is located on the back glass inside the operator’s cab. It shows the operator procedures for an emergency exit.

9

10

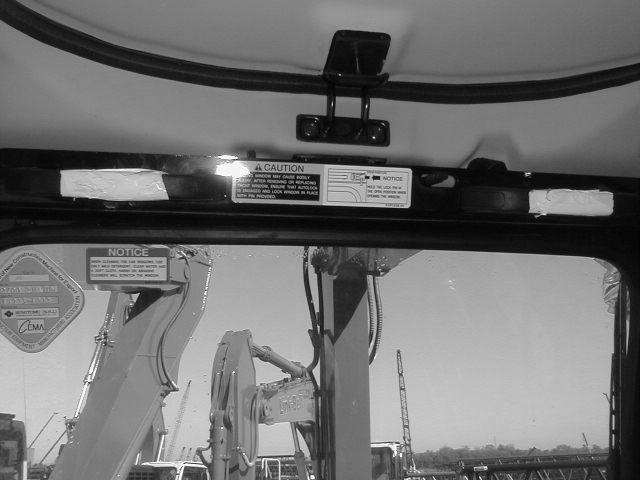

P9290020 This decal cautions the operator to lock the front window after removing or replacing in order to ensure that it will remain in a safe position.
