STEPS AND ACCESS HANDLES

1

1 2

2 2

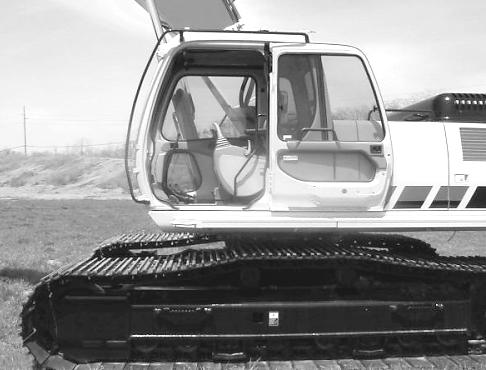

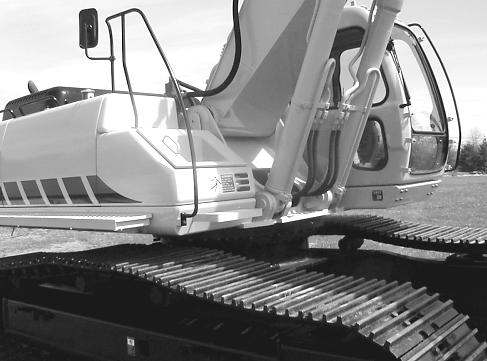

BD01E089 To get on or off of the machine use the steps (2) and access handles (1).

CD01E036

WARNING: Always maintain three point support while getting on and off the machine and entering or exiting the operators cab. A three point support system has been provided that enables a person to us simultaneously two hands and one foot or two feet and one hand while ascending, descending or moving about the machine.

WARNING: When getting in or out of the cab, it is imperative that the upper structure frame is in line with the undercarriage.

WARNING: Never jump down from the machine. When leaving the machine or the upper structure, always face the machine and use the steps and access handles. WARNING: To get in or out of the cab, never use the left-hand control lever, the left-hand control arm or the door handle.

WARNING: Clean the steps and access handles and remove all traces of grease, oil, mud, and (in winter) ice.

Gate Lock and Gate Lock Lever

2

1 1 2

BD01E067

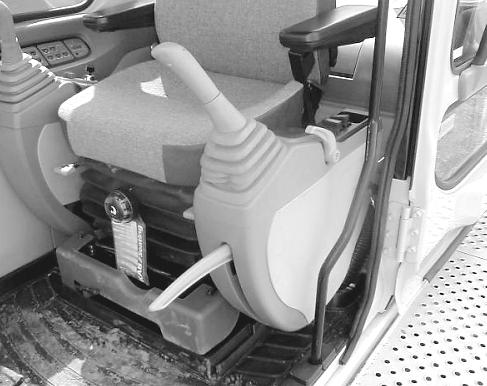

The gate lock (1) is designed to prevent the operator from leaving the operator’s compartment without first having lowered this bar. The gate lock lever (2) operates the safety bar (1) and cancels the functioning of the control levers and pedals. When the lever (2) is in raised position, the gate lock (1) is in retracted position in the control arm and the attachment, travel and swing functions will not operate.

WARNING: Before leaving the operator’s compartment, it is mandatory for the gate lock lever (2) to be raised and the gate lock lever (1) to be in the retracted position.

BD01E068

To make the attachment, travel and swing functions operational once more, lower the gate lock lever (2) for the gate lock (1) to come out of the control arm. NOTE: It is also possible to cancel all controls by completely raising the lefthand control arm. See “Left-hand control lever”.
