WINDSHIELD WASHER RESERVOIR

.LOWER PANELS

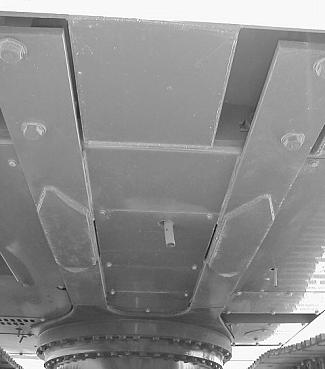

BD01G027 These panels are located under the upper structure frame and gives access to certain machine components. IMPORTANT: Do not operate the machine with the panels removed.

WARNING: Before undertaking any travel, make sure the panels are correctly secured.

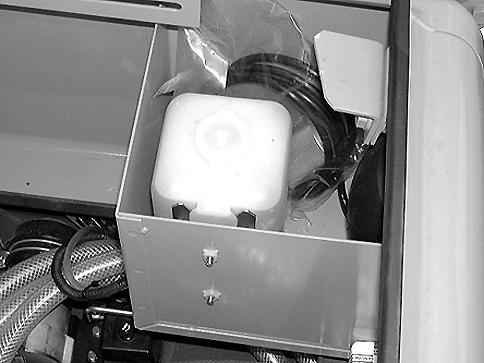

CD00E041 This reservoir, located on the front box, is equipped with an electric pump which is operated from the control panel. See item 16 under “Systems display and control panel”. IMPORTANT: Never operate the windshield washer control when the reservoir is empty. This could cause damage to the electric pump. Remove the cap to fill the reservoir. IMPORTANT: In cold weather, add anti-freeze to the windshield washer water.

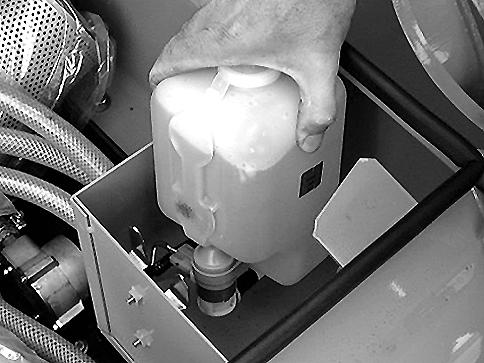

CD00E042 The reservoir can be lifted out of its support.
