Control and operation

Working with the machine

Bucket will be tilted inwards. Move the joystick to the right f Bucket will be tilted outwards.

Shake the bucket (with backhoe attachment only)

You can shake the bucket to remove dirt collected in the backhoe bucket. Operate very quickly the right joystick 3 as follows: While you do this sequence, the bucket shakes.

Caution!

Repetitive shakings cause fast wear of the components.

Operating the bottom dump bucket for shovel attachment

Danger!

Additional operating and control elements (joysticks/pedals) can have different functions.

Always check functions of operating and control elements when you start a machine which has an additional attachment.

Manual flap control

You can control the bottom dump shovel bucket with the pedal or with the joystick.

Fig. 3-72 Rotary switch for control selection

Use the rotary switch S256 to select one of the two control modes:

Manual flap control with the pedal

Make sure that the related mode is selected with the rotary switch S256.

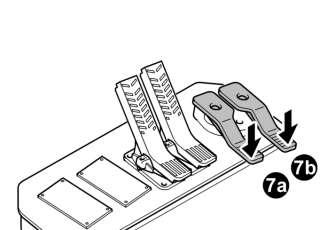

Fig. 3-73 Operating the bottom dump shovel bucket

The bottom dump shovel bucket is moved with the two pedals 7a and 7b

Push pedal 7a. Shovel bucket will be opened. Push pedal 7b Shovel bucket will be closed. Manual flap control with the analog stick

Make sure that the related mode is selected with the rotary switch S256

3-74 Flap control with the analog stick

Push the analog stick on the right joystick 3 to the right 7a Shovel flap will be opened.

Push the analog stick on the right joystick 3 to the left 7b Shovel flap will be closed.
