Control and operation

The submenu list S-Exxx lists all the operating faults, just like the submenu list Exxx, but this time only faults appeared in service mode, i. e. when a service connector was connected.

The sub-menu allows to separate the faults occuring during maintenance works,in particular during the troubleshootings.

For each error, an overview is shown and can be paged in just like for the "list Exxx" selection.

When exiting the service mode, the memory "list S-Exxx" is reset, the service mode operating faults are not stored.

Menu "set clock" - Time setting

Via this menu the clock displayed in the upper right corner of the main screen can be set.

Fig. 3-27 Setting of the clock

After function start, the presently set time will appear in the lower section of the screen with the digit completely right inversely displayed (unity digit of the minutes).

Press the UP or DOWN key to adjust the selected digit.

Press the MENU key: the immediately more left digit is now inversely displayed.

Repeat the procedure until all the digits have been set.

Press the Enter key:

Fig. 3-28 Confirmation of the storage of the new time

The confirmation message “update xx : xx” will appear momentarily on the screen and the new time is stored. The menu "set clock" is closed and the main menu is displayed on the screen.

3.1.7Controls and instrumentation for optional equipments

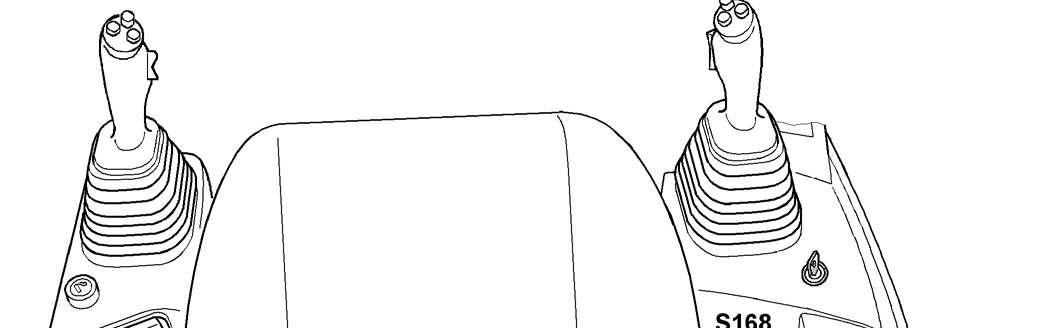

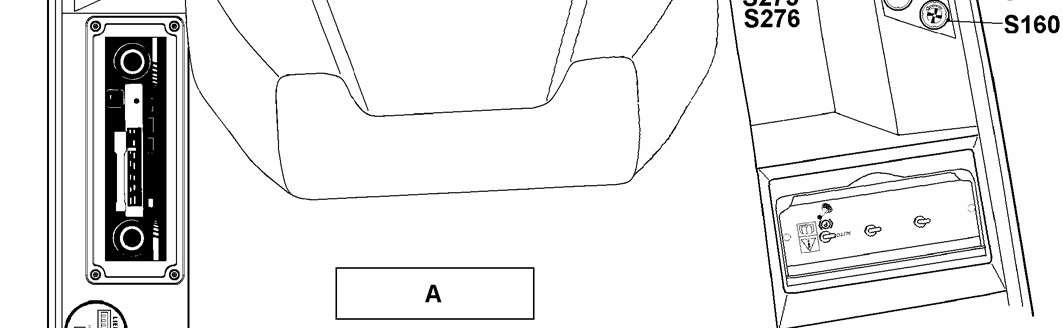

Fig. 3-29 Controls for optional equipments

The location of these controls may be different, depending on the type of the other installed optional equipments.

H90 – Control light / Rotation in opposite direction of reversible fan

On machines fitted with the special equipment "cooler fan reversible", this control light lights up to indicate that the fan has been changed over to rotation in opposite direction via the push button S160, see also the section "Reversible cooler fan (Optional equipment)" in the chapter "maintenance".
