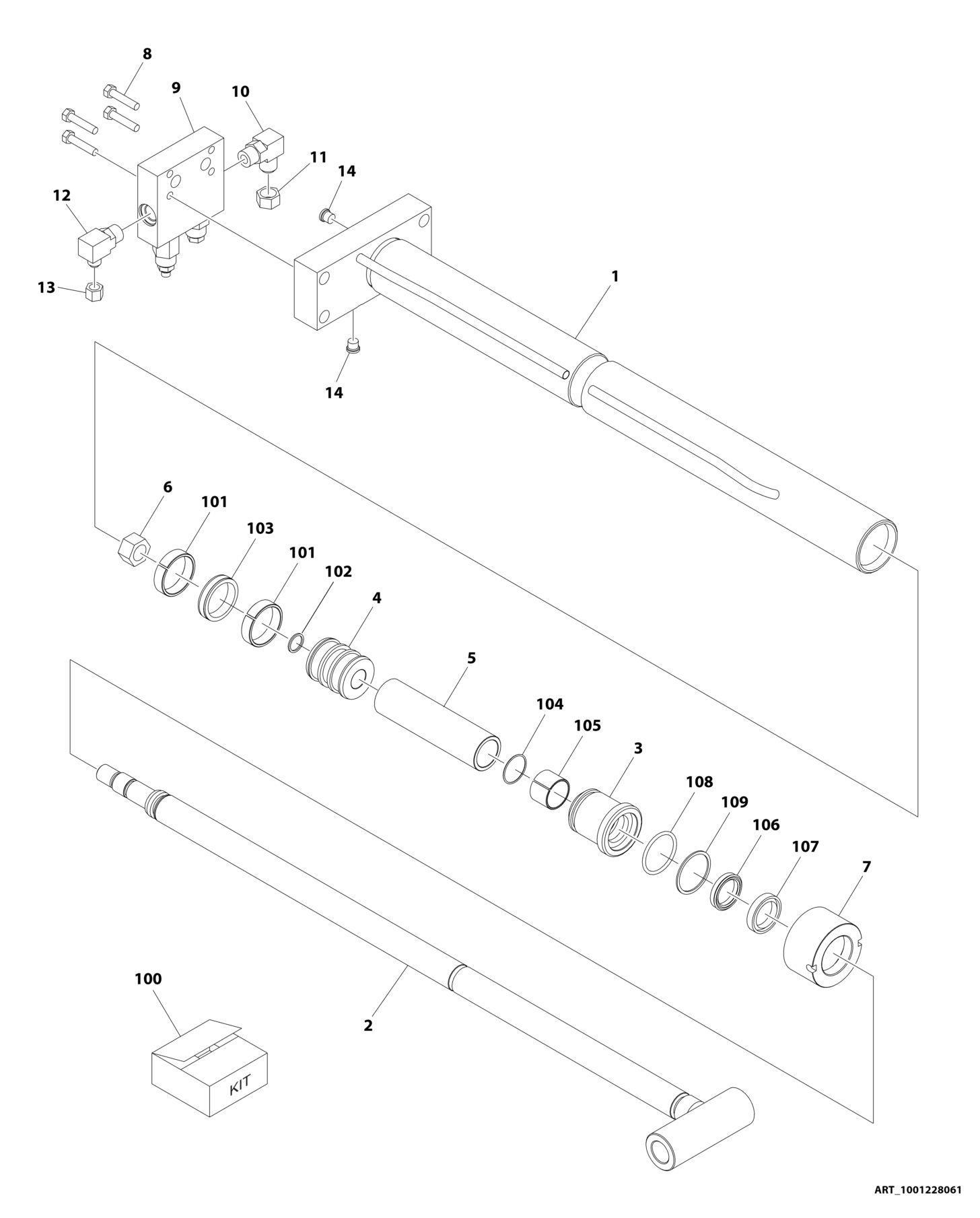

FIGURE 5 27. TELESCOPE CYLINDER ASSEMBLY E450AJ/M450AJ (SERVICE REPLACEMENT
ITEM PART NUMBER QTY
DESCRIPTION
1001228061 Ref TELESCOPE CYLINDER ASSEMBLY Ref Note: Original Cylinder may have been replaced with Service Replacement. Identify PN Stamped on Cylinder Before Ordering Parts. 1 See Note NSS Barrel (Note: Not Available for Purchase) 2 70006973 1 Rod 3 70006565 1 Head 4 70006564 1 Piston 5 70006972 1 Spacer 6 70006971 1 Nut, Lock 7 70006561 1 Cap, End 8 0641512 4 Bolt, 5/16 X 1-1/2 9 4640807 1 Counterbalance Valve Assembly (See COUNTERBALANCE VALVE ASSEMBLY for Breakdown) 10 2220596 1 Fitting, 90 JIC/ORB 11 2220517 1 Fitting, Cap 12 2220628 1 Fitting, 90 JIC/ORB 13 2220516 1 Fitting, Cap 14 2220883 2 Plug 100 1001152230 1 Seal Kit (Includes Items101-108) 101 See Note NSS Ring, Wear (Note: Use p/n 1001152230) 102 See Note NSS O-Ring (Note: Use p/n 1001152230) 103 See Note NSS Seal, Piston (Note: Use p/n 1001152230) 104 See Note NSS O-Ring (Note: Use p/n 1001152230) 105 See Note NSS Ring, Wear (Note: Use p/n 1001152230) 106 See Note NSS Seal, Rod (Note: Use p/n 1001152230) 107 See Note NSS Wiper, Rod (Note: Use p/n 1001152230) 108 See Note NSS O-Ring (Note: Use p/n 1001152230) 109 See Note NSS Ring, Back-Up (Note: Use p/n 1001152230)
