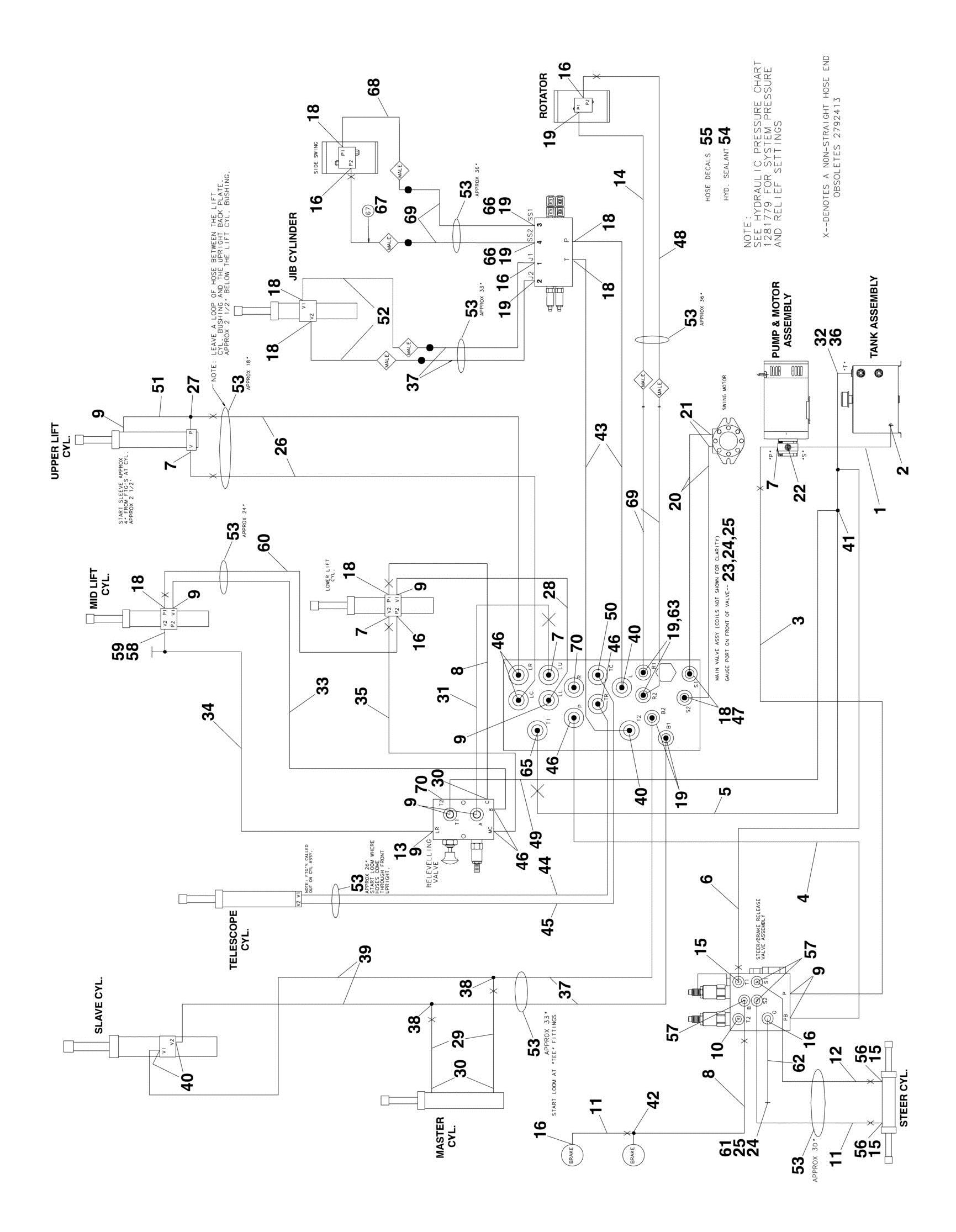

FIGURE 6 3. STANDARD HYDRAULIC DIAGRAM (E/M400AJP
ITEM PART NUMBER QTY
DESCRIPTION
2792509 Ref STANDARD HYDRAULIC DIAGRAM 1 2752675 1 Hose 2 1320033 1 Clamp 3 2752487 1 Hose 4 2752488 1 Hose 5 2751498 1 Hose 6 2752476 1 Hose 7 2220371 4 Fitting, Straight 8 2752600 2 Hose 9 2220473 8 Fitting, Elbow 10 2220885 1 Plug 11 2752595 2 Hose 12 2752446 1 Hose 13 2220507 1 Fitting, Elbow 14 2753337 1 Hose 15 2220998 3 Fitting, Straight 16 2220466 6 Fitting, Elbow 18 2220415 9 Fitting, Straight 19 2220502 8 Fitting, Elbow 20 2752459 2 Hose 21 2221033 2 Fitting, Straight 22 2220593 1 Fitting, Straight 23 2220873 1 Fitting, Straight 24 2220428 2 Fitting, Quick Coupling 25 2220429 2 Dust Cap 26 2752619 2 Hose 27 2220899 1 Fitting, Tee 28 2752466 1 Hose 29 2752437 2 Hose 30 2220472 3 Fitting, Elbow 31 2750910 1 Hose 32 2220999 1 Fitting, Tee 33 2753335 1 Hose 34 2753334 1 Hose 35 2752611 1 Hose 36 2220386 1 Fitting, Elbow 37 2752571 4 Hose 38 Ref Fitting, Tee Options: 38 2220605 2 Fitting, Tee (Prior to SN 0300168138) 38 2220504 2 Fitting, Tee (SN 0300168138 through 0300189901) 39 2753333 2 Hose 40 2220582 4 Fitting, Straight 41 2221054 1 Fitting, Tee 42 2220711 1 Fitting, Tee 43 2752430 2 Hose 44 2753474 1 Hose 45 2753475 1 Hose 46 2220501 7 Fitting, Elbow 47 2220677 2 Fitting, Elbow 48 2753336 1 Hose
REV
G
ITEM PART NUMBER QTY DESCRIPTION
49 2752611 1 Hose 50 2220600 2 Fitting, Straight 51 4567946 1 Tube 52 2753329 2 Hose 53 4100026 AR Nylon, Sleeve 54 0100020 AR Sealant (Not Shown) 55 1702124 1 Hose, Tags (Not Shown) 56 2220609 2 Fitting, Reducer 57 2220923 3 Fitting, Adapter 58 2220934 1 Fitting, Tee 59 4640861 1 Bleeder, Kit 60 2751890 1 Hose 61 2220414 1 Fitting, Straight 62 2750900 1 Hose 63 2220909 2 Orifice (.015) 65 2220374 1 Fitting, Straight 66 2221039 2 Orifice (.022) 67 2753330 1 Hose 68 2753331 1 Hose 69 2753332 4 Hose 70 2220237 2 Fitting, Plug
