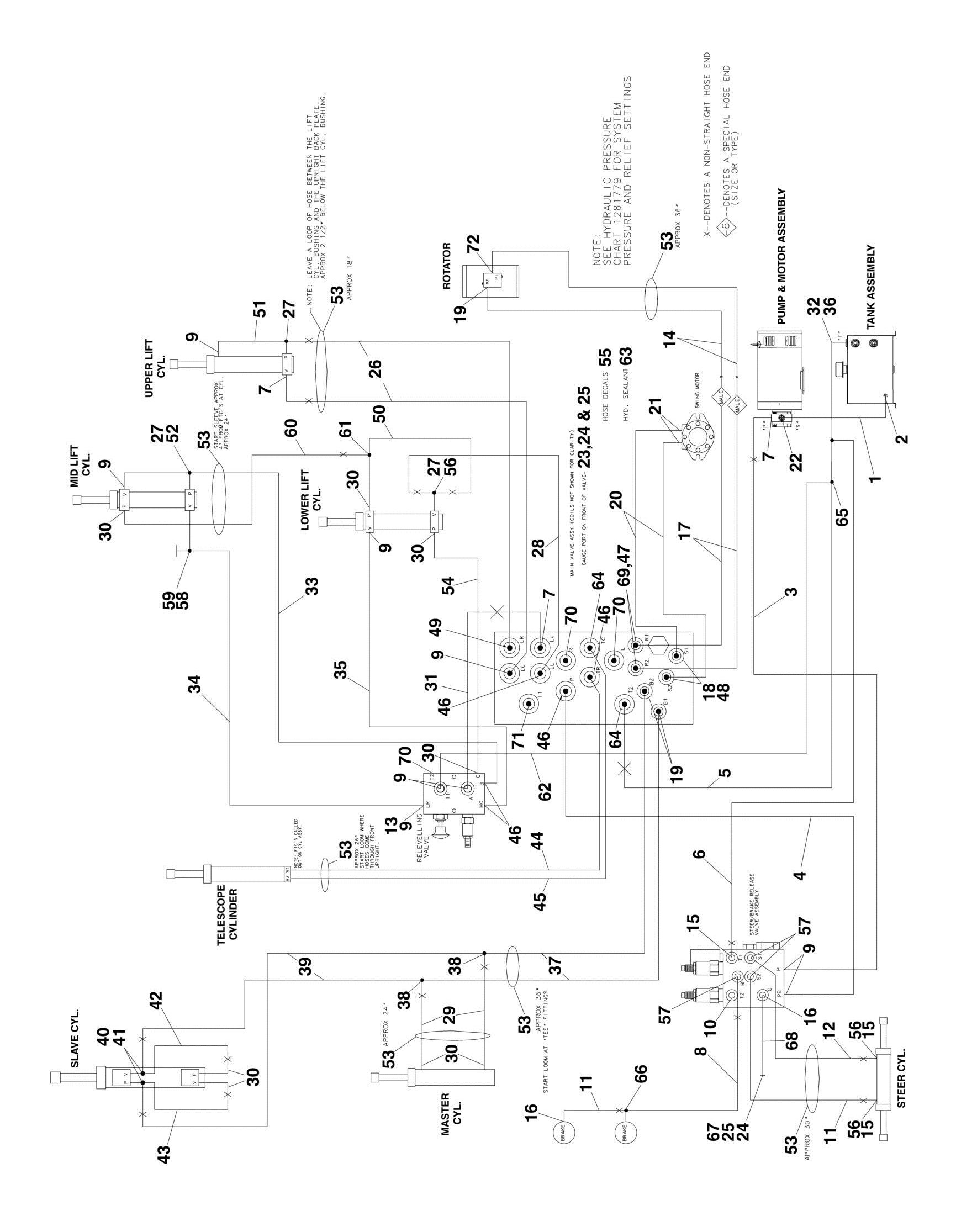

FIGURE 6 1. STANDARD HYDRAULIC DIAGRAM (E/M400A & E/M450A
ITEM PART NUMBER QTY
DESCRIPTION
Ref STANDARD HYDRAULIC DIAGRAM 2792506 Ref Standard Hydraulic Diagram (E/M450A) 2792510 Ref Standard Hydraulic Diagram (E/M400A) 1 2752675 1 Hose 2 1320033 1 Clamp 3 2752487 1 Hose 4 2752488 1 Hose 5 2751498 1 Hose 6 2752476 1 Hose 7 2220371 AR Fitting, Straight 8 2752600 1 Hose 9 2220473 AR Fitting, Elbow 10 2220885 5 Plug 11 2752595 2 Hose 12 2752446 1 Hose 13 2220507 AR Fitting, Elbow 14 Ref Hose Options: 14 2753337 2 Hose (E/M400A) 14 2753326 2 Hose (E/M450A) 15 2220998 3 Fitting, Straight 16 2220466 AR Fitting, Elbow 17 Ref Hose Options: 17 2753332 2 Hose (E/M400A) 17 2752795 2 Hose (E/M450A) 18 2220415 2 Fitting, Straight 19 2220502 AR Fitting, Elbow 20 2752459 2 Hose 21 2221033 2 Fitting, Straight 22 2220593 1 Fitting, Straight 23 2220873 1 Fitting, Straight 24 2220428 2 Fitting, Quick Coupling 25 2220429 2 Dust Cap 26 Ref Hose Options: 26 2753519 2 Hose (E/M400A) 26 2753050 2 Hose (E/M450A) 27 2220899 3 Fitting, Tee 28 2752620 1 Hose 29 Ref Hose Options: 29 2752437 2 Hose (E/M400A) 29 2752580 2 Hose (E/M450A) 30 2220472 8 Fitting, Elbow 31 2750910 1 Hose 32 2220999 1 Fitting, Tee 33 Ref Hose Options: 33 2753335 1 Hose (E/M400A) 33 2751127 1 Hose (E/M450A) 34 Ref Hose Options: 34 2753334 1 Hose (E/M400A) 34 2751126 1 Hose (E/M450A) 35 2752475 1 Hose
REV
8-H 9-H
ITEM PART NUMBER QTY DESCRIPTION
36 2220386 1 Fitting, Elbow 37 Ref Hose Options: 37 2753520 2 Hose (E/M400A) 37 2752585 2 Hose( E/M450A) 38 2220504 2 Fitting, Tee 39 Ref Hose Options: 39 2753535 2 Hose (E/M400A) 39 2752572 2 Hose (E/M450A) 40 2220727 2 Fitting, Straight 41 2220684 2 Fitting, Tee 42 2752435 1 Hose 43 2752573 1 Hose 44 Ref Hose Options: 44 2753474 1 Hose (E/M400A) 44 2750996 1 Hose (E/M450A) 45 Ref Hose Options: 45 2753475 1 Hose (E/M400A) 45 2751508 1 Hose (E/M450A) 46 2220501 AR Fitting, Elbow 47 2220502 2 Fitting, Elbow 48 2220677 2 Fitting, Adapter 49 Ref Fitting, Long Options: 49 2220819 AR Fitting, Long (Prior to SN 0300067501) 49 2221147 AR Fitting, Long (E/M400A) (SN 0300067501 through
0300189901)
49 2221147 AR Fitting, Long (E/M450A) (SN 0300067501 through
0300189898)
50 2752581 1 Hose 51 4566188 1 Tube 52 Ref Tube Options: 52 4566187 1 Tube (E/M400A) 52 4566623 1 Tube (E/M450A) 53 4100026 AR Nylon, Sleeve 54 2752983 1 Hose 55 1702124 1 Hose, Tags 56 2220609 3 Fitting, Reducer 57 2220923 3 Fitting, Adapter 58 2220934 1 Fitting, Tee 59 4640861 1 Bleeder, Kit 60 2752440 1 Hose 61 2220605 1 Fitting, Tee 62 2752611 1 Hose 63 0100020 AR Sealant 64 2220600 2 Fitting, Straight 65 2221054 1 Fitting, Tee 66 2220711 1 Fitting, Tee 67 2220414 1 Fitting, Straight 68 2790900 1 Hose 69 2220909 2 Fitting, Restrictor 70 2220237 3 Fitting, Plug 71 2220239 1 Fitting, Plug 72 Ref Fitting Options:
REV
ITEM PART NUMBER QTY
DESCRIPTION
72 2220466 1 Fitting, Elbow (Prior to SN 0300114239) 72 2220502 1 Fitting, Elbow (E/M400A) (SN 0300114239 through
0300189901)
72 2220502 1 Fitting, Elbow (E/M450A) (SN 0300114239 through
