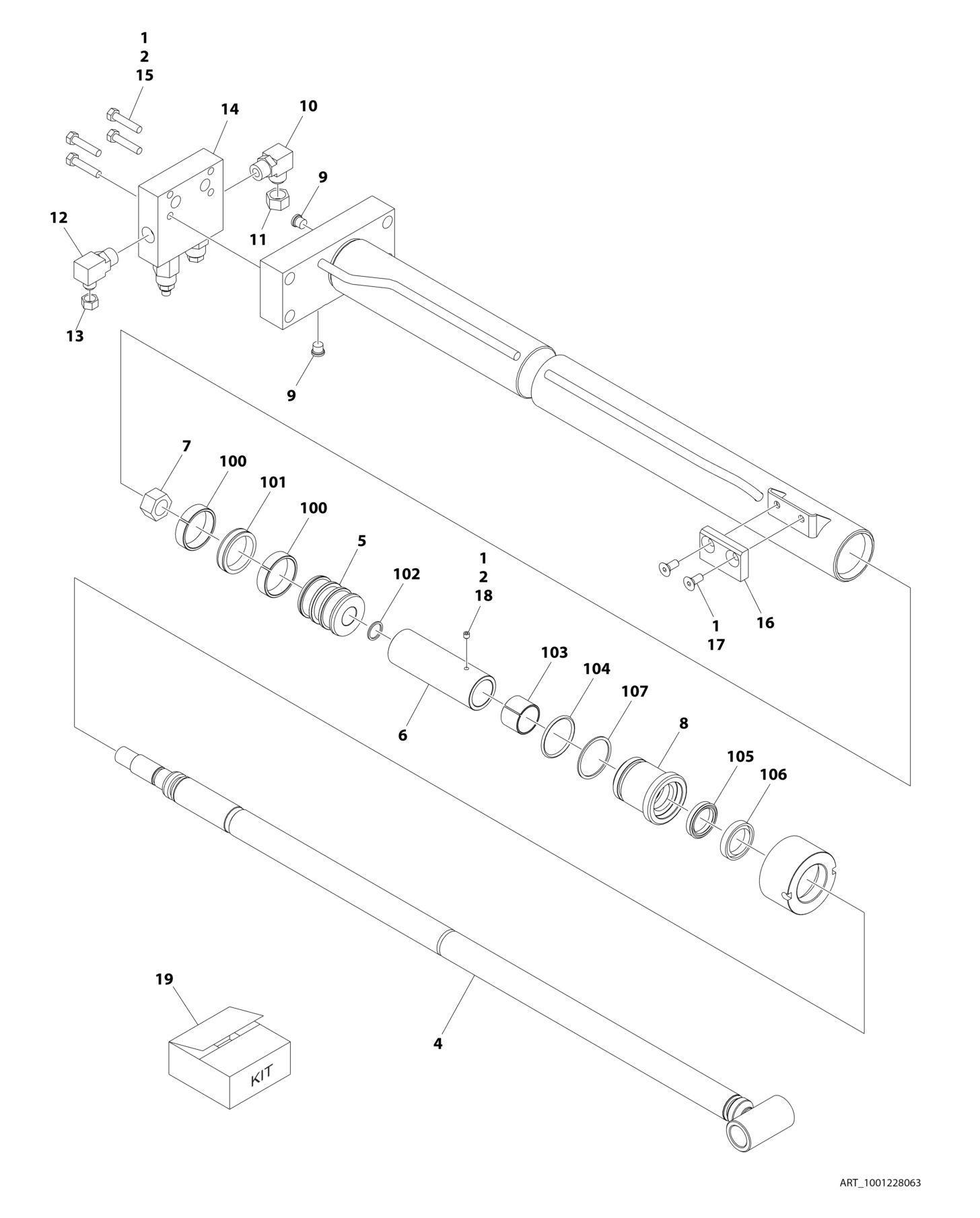

FIGURE 5 25. TELESCOPE CYLINDER ASSEMBLY (E/M400A) (SERVICE REPLACEMENT
ITEM PART NUMBER QTY
DESCRIPTION
1001228063 Ref TELESCOPE CYLINDER ASSEMBLY Ref Note: Original Cylinder may have been replaced with Service Replacement. Identify PN Stamped on Cylinder Before Ordering Parts. 1 0100011 AR Compound, Locking 2 0100038 AR Primer, Locking 4 70006566 1 Rod 5 70006564 1 Piston 6 70006563 1 Spacer 7 70006971 1 Nut 8 70006565 1 Head 9 2220883 1 Plug 10 2220596 1 Fitting, 90 JIC/ORB 11 2220517 1 Fitting, Cap 12 2220628 1 Fitting, 90 JIC/ORB 13 2220516 1 Fitting, Cap 14 4640807 1 Counterbalance Valve Assembly (See COUNTERBALANCE VALVE ASSEMBLY for Breakdown) 15 0641512 4 Bolt, 5/16 x 1-1/2 16 3340679 1 Pad, Wear 17 70006976 2 Screw 18 70023915 1 Setscrew, M6 x 8 19 1001152230 1 Seal Kit (Includes Items 100-107) 100 See Note NSS Ring, Wear (Note: Use p/n 1001152230) 101 See Note NSS Seal, Piston(Note: Use p/n 1001152230) 102 See Note NSS O-Ring (Note: Use p/n 1001152230) 103 See Note NSS Ring, Wear (Note: Use p/n 1001152230) 104 See Note NSS O-Ring (Note: Use p/n 1001152230) 105 See Note NSS Seal, Rod (Note: Use p/n 1001152230) 106 See Note NSS Seal, Rod (Note: Use p/n 1001152230) 107 See Note NSS Ring, Back-Up (Note: Use p/n 1001152230)
REV
E
