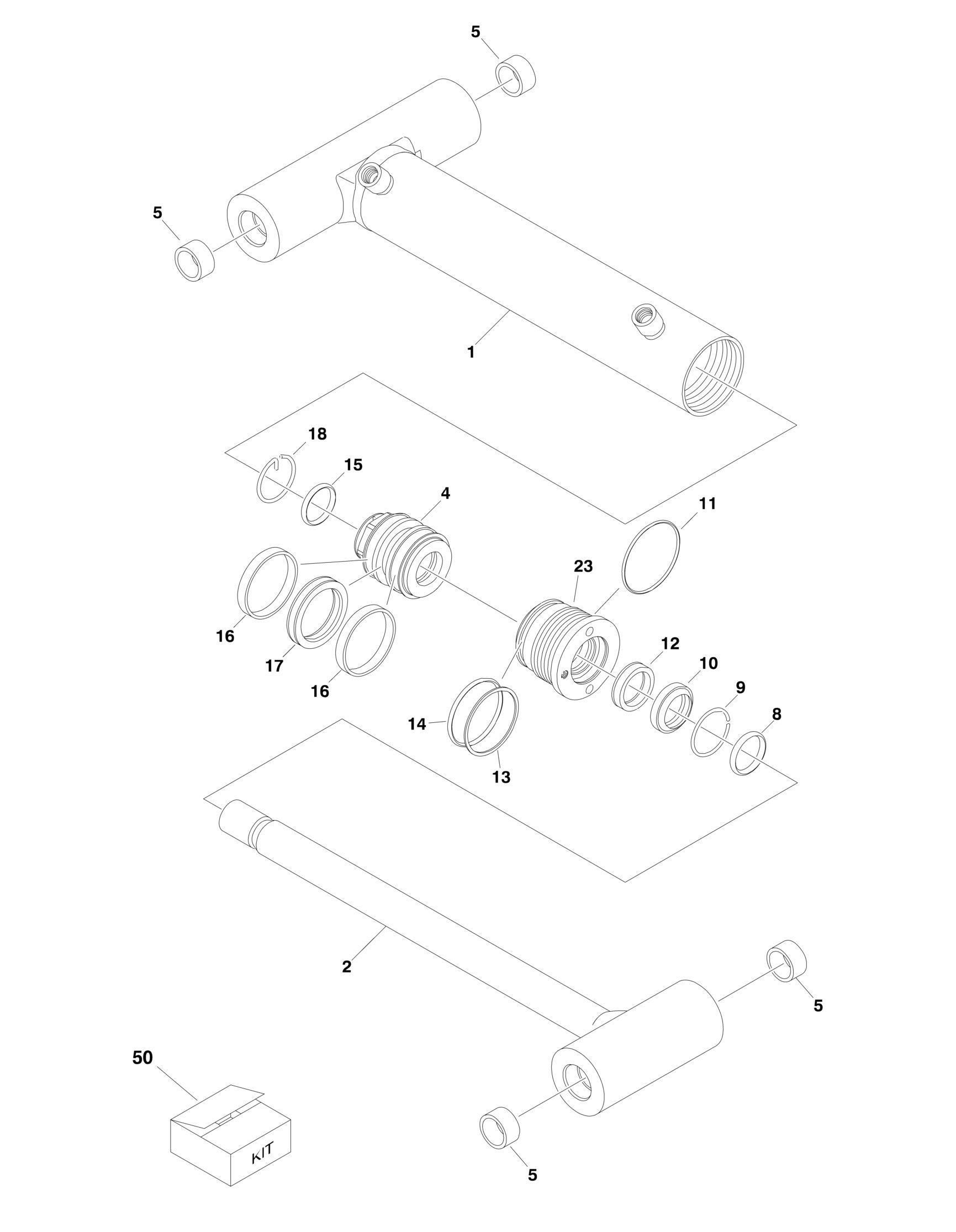

FIGURE 5 21. MASTER CYLINDER ASSEMBLY (E/M450AJ & E/M400AJP
ITEM PART NUMBER QTY
DESCRIPTION
1001140278 Ref MASTER CYLINDER ASSEMBLIES Ref Note: Original Equipment components may have been
replaced with Service Replacement components part. Identify p/n stamped on cylinder before ordering parts.
1 70003843 1 Barrel 2 70003844 1 Rod 4 70003819 1 Piston 5 0961951 4 Bushing 8 7026084 1 O-Ring 9 70002217 1 Ring, Retaining 10 See Note 1 Wiper (Note: Use Item 50) 11 See Note 1 O-Ring (Note: Use Item 50) 12 See Note 1 Seal (Note: Use Item 50) 13 See Note 1 Ring, Back-up (Note: Use Item 50) 14 See Note 1 O-Ring (Note: Use Item 50) 15 See Note 1 O-Ring (Note: Use Item 50) 16 See Note 2 Ring, Wear (Note: Use Item 50) 17 See Note 1 Seal (Note: Use Item 50) 18 70002216 1 Retainer 23 7026082 1 Head 50 70003845 1 Seal Kit (Includes Items 10-17)
REV
A
