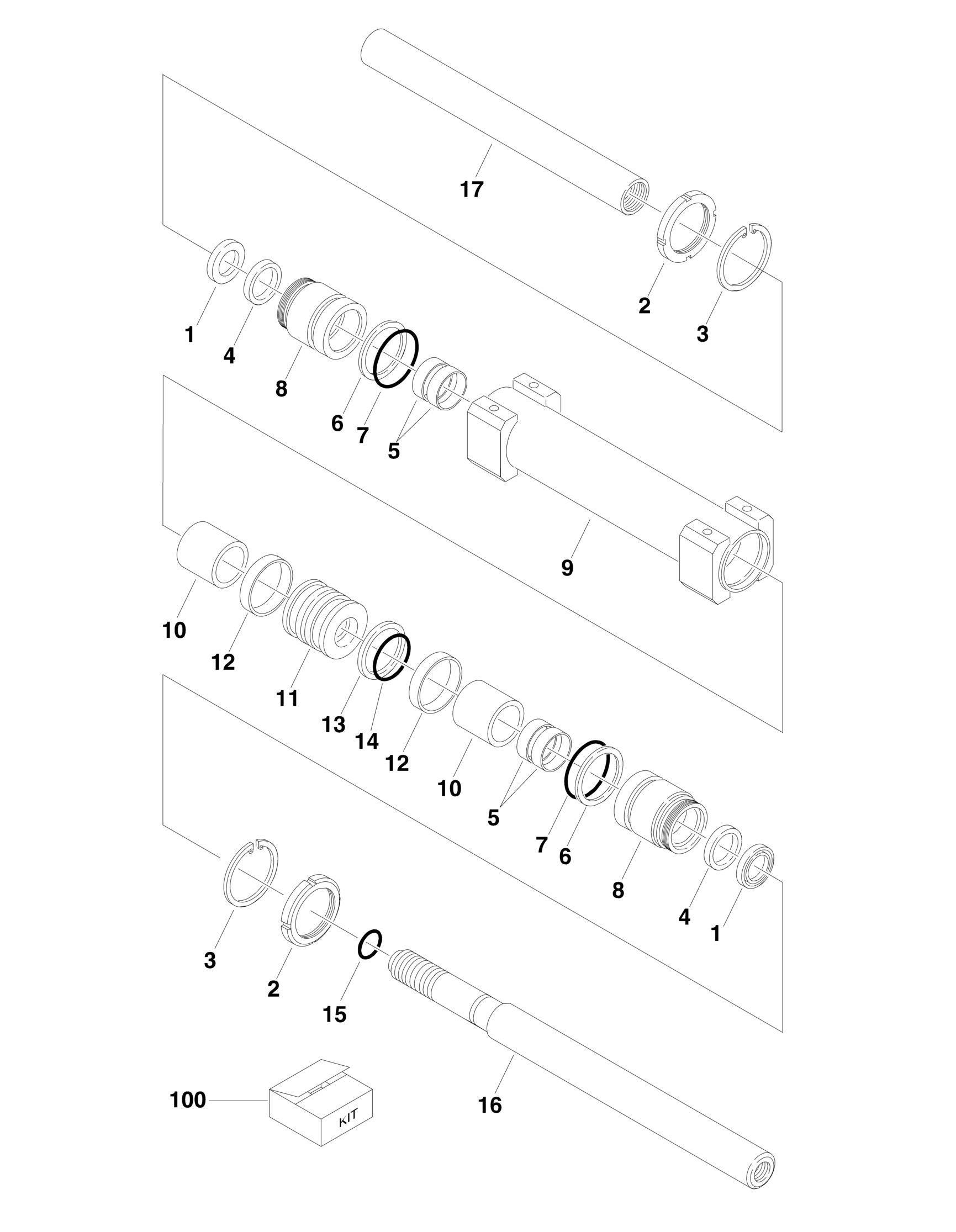

FIGURE 5 22. STEER CYLINDER ASSEMBLY
FIGURE 5-22. STEER CYLINDER ASSEMBLY
FIGURE 5-22. STEER CYLINDER ASSEMBLY
ITEM PART NUMBER QTY
DESCRIPTION
1683591 Ref STEER CYLINDER ASSEMBLY 1 See Note 2 Wiper (Note: Use Item 100) 2 7001630 2 Nut, Spanner 3 7017247 2 Ring, Retaining 4 See Note 2 Seal, Lip (Note: Use Item 100) 5 See Note 4 Ring, Wear (Note: Use Item 100) 6 See Note 2 Ring, Back-up (Note: Use Item 100) 7 See Note 2 O-Ring (Note: Use Item 100) 8 7017248 2 Guide 9 70003341 1 Barrel Weldment 10 7017249 2 Tube 11 7017250 1 Piston 12 See Note 2 Ring, Wear (Note: Use Item 100) 13 See Note 1 Seal (Note: Use Item 100) 14 See Note 1 O-Ring (Note: Use Item 100) 15 See Note 1 O-Ring (Note: Use Item 100) 16 7017251 1 Rod (Male End) 17 7017252 1 Rod (Female End) 100 7017246 1 Seal Kit (Includes Items 1, 4-7 & 12-15)
REV
B
ITEM PART NUMBER QTY
DESCRIPTION

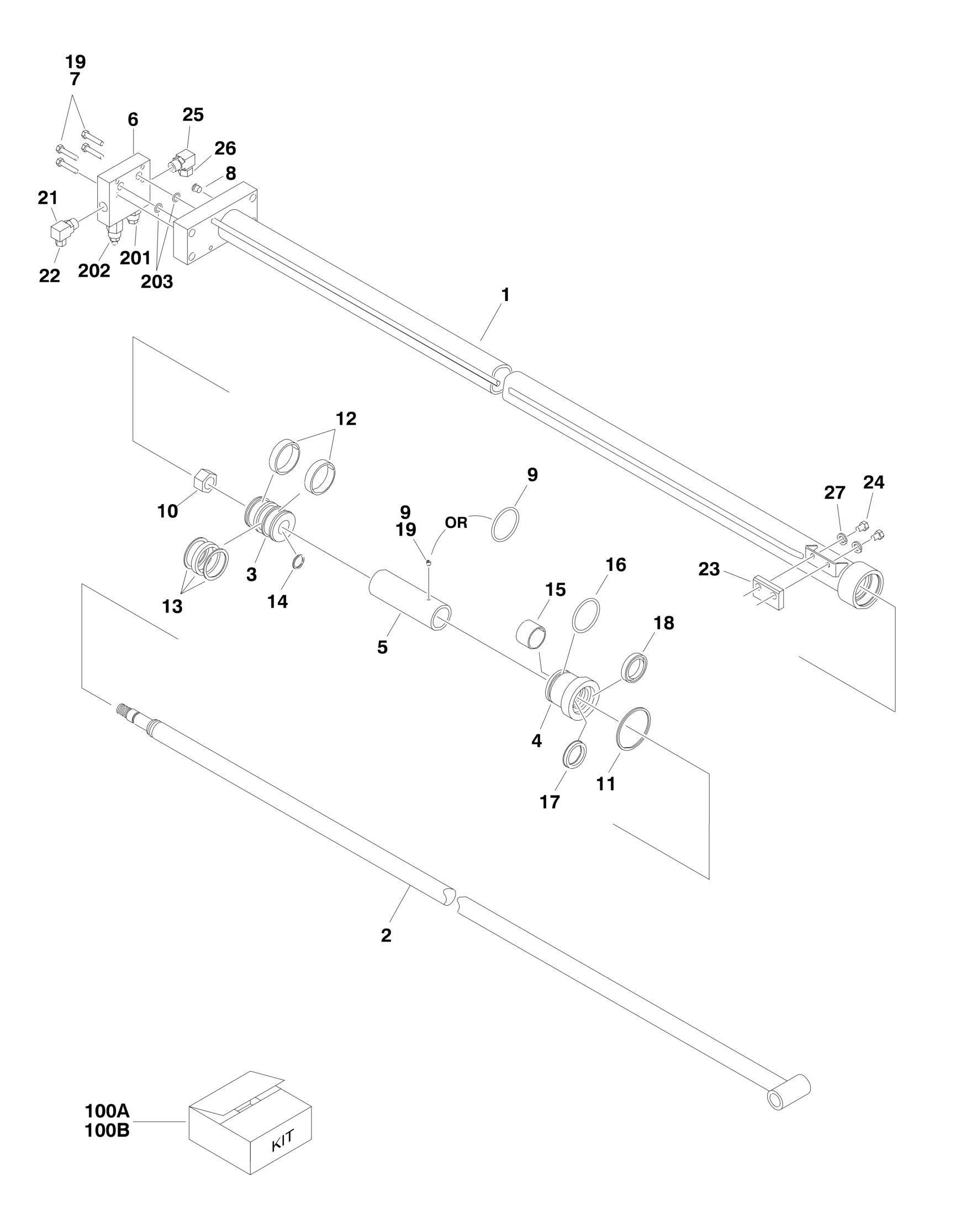

Ref TELESCOPE CYLINDER ASSEMBLY 1683704 Ref Telescope Cylinder Assembly (E/M450A) 1683798 Ref Telescope Cylinder Assembly (E/M450AJ) 1684030 Ref Telescope Cylinder Assembly (E/M400A) Ref Note: Original Cylinder may have been replaced with Service Replacement. Identify PN Stamped on Cylinder Before Ordering Parts. 1 Ref Barrel Weldment Options: 1 1682948 1 Barrel Weldment (E/M450A) 1 1683800 1 Barrel Weldment (E/M450AJ) 1 1682888 1 Barrel Weldment (E/M400A) 2 Ref Rod Weldment Options: 2 1683706 1 Rod Weldment (E450A & M450A) 2 1683802 1 Rod Weldment (E450AJ & M450AJ) 2 1684029 1 Rod Weldment (E/M400A) 3 3480239 1 Piston 4 1683705 1 Head 5 Ref Spacer, Tube Options: 5 4567704 1 Spacer, Tube (E/M450A & E/M400A) 5 4566027 1 Spacer, Tube (E/M450AJ) 6 4640807 1 Counterbalance Valve Assy (See Items 201-203 for Breakdown) 7 0641512 4 Bolt 5/16in-18NC x 1-1/2in 8 2220883 2 Plug, O-Ring 9 3951402 1 Setscrew 1/4in-20NC x 1/4in 9 See Note 1 O-Ring (Note: Use Item 100B) 10 3322205 1 Locknut 11 3760318 1 Ring, Retaining 12 See Note 2 Ring, Wear (Note: Use Item 100A or 100B) 13 See Note 1 Seal, Cap (Note: Use Item 100A or 100B) 14 See Note 1 O-Ring (Note: Use Item 100A or 100B) 15 See Note 1 Ring, Wear (Note: Use Item 100A or 100B) 16 See Note 1 O-Ring (Note: Use Item 100A or 100B) 17 See Note 1 Seal, Rod (Note: Use Item 100A or 100B) 18 See Note 1 Wiper (Note: Use Item 100A or 100B) 19 0100011 AR Compound, Locking 19 0100038 AR Primer, Locking 21 2220628 1 Fitting, Elbow 22 2220516 1 Fitting, Cap 23 3340679 1 Wear Pad Assembly 24 0641604 2 Bolt 3/8in-16NC x 1/2in 25 2220596 1 Fitting, Elbow 26 2220517 1 Fitting, Cap 27 4761600 2 Lockwasher 3/8in 100 Ref Seal Kit Options: 100A 2901807 1 Seal Kit (Includes Items 12-18) (Telescope Cylinder p/n 1683704 & p/n 1684030) 100B 1001141760 1 Seal Kit (Includes Items 12-18 & 9) (Telescope Cylinder p/n 1683798) 4640807 Ref COUNTERBALANCE VALVE ASSEMBLY
REV
D E B
ITEM PART NUMBER QTY
DESCRIPTION
201 4640771 1 Cartridge, Counterbalance 201 2900770 1 Seal Kit - 4640771 Cartridge 202 4640709 1 Cartridge, Vented Counterbalance 202 2900770 1 Seal Kit - 4640709 Cartridge 203 3790113 2 O-Ring (Between Valve and Cylinder Block)
