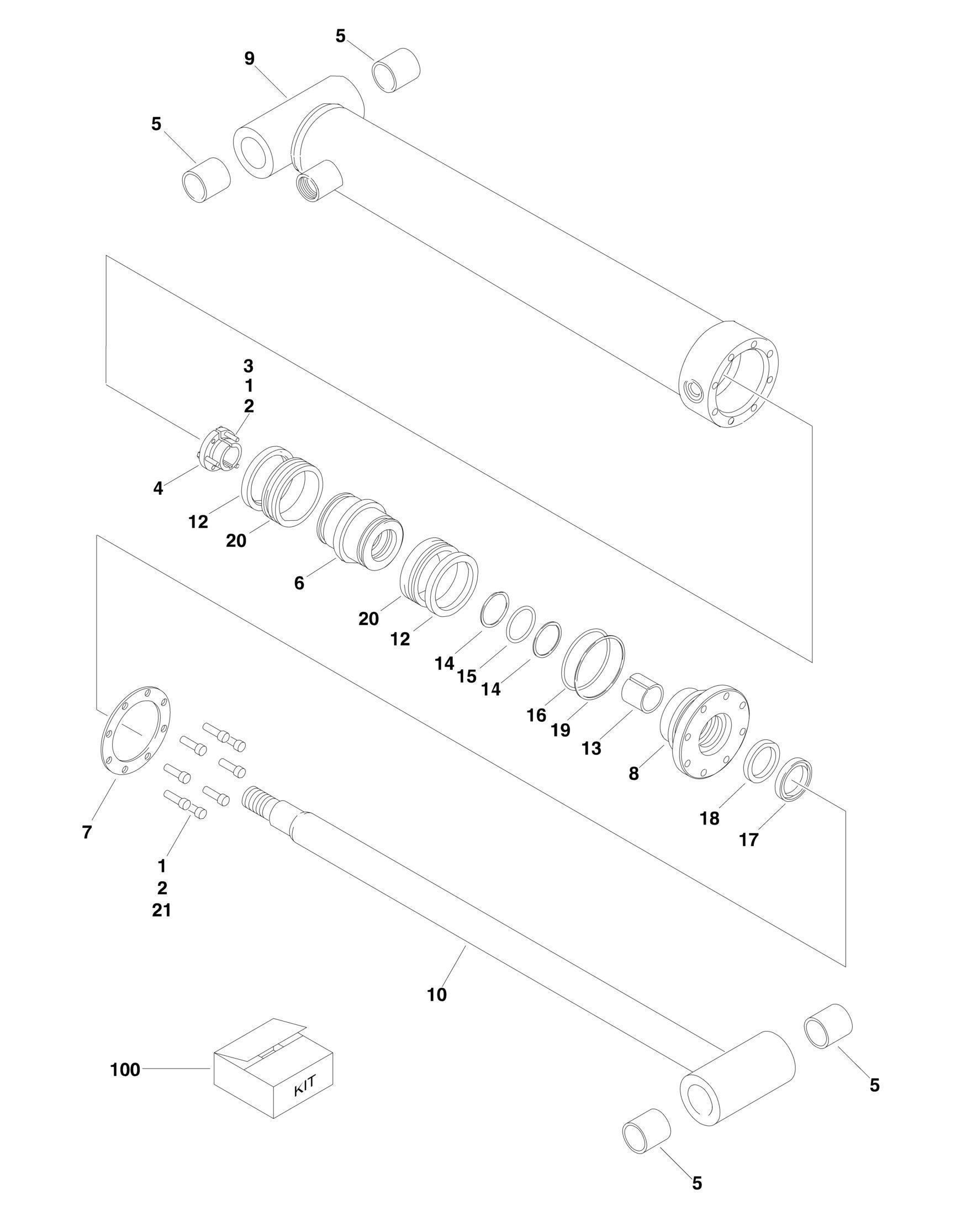

FIGURE 5 20. MASTER CYLINDER ASSEMBLY (E/M450AJ & E/M400AJP) (Prior to SN 0300163453
ITEM PART NUMBER QTY
DESCRIPTION
1683923 Ref MASTER CYLINDER ASSEMBLIES Ref Note: Original Equipment components may have been
replaced with Service Replacement components part. Identify p/n stamped on cylinder before ordering parts.
1 0100011 AR Compound, Locking 2 0100038 AR Primer, Locking 3 3931016 3 Bolt Socket Head #10-24NC x 1in 4 0962185 1 Tapered Bushing 5 0961951 4 Bushing, Garmax 6 3480259 1 Piston 7 3760368 1 Washer, Ring 8 1683925 1 Head 9 1683756 1 Barrel 10 1683772 Rod 12 See Note 2 Ring, Lock (Note: Use Item 100) 13 See Note 1 Ring, Wear (Note: Use Item 100) 14 See Note 2 Ring Back-up (Note: Use Item 100) 15 See Note 1 O-Ring (Note: Use Item 100) 16 See Note 1 O-Ring (Note: Use Item 100) 17 See Note 1 Wiper (Note: Use Item 100) 18 See Note 1 Seal (Note: Use Item 100) 19 See Note 1 Ring, Back-up (Note: Use Item 100) 20 See Note 2 Seal (Note: Use Item 100) 21 3931516 8 Bolt Socket Head 5/16in-18NC x 1in 100 2901898 1 Seal Kit (Includes Items 12-20)
REV
F
