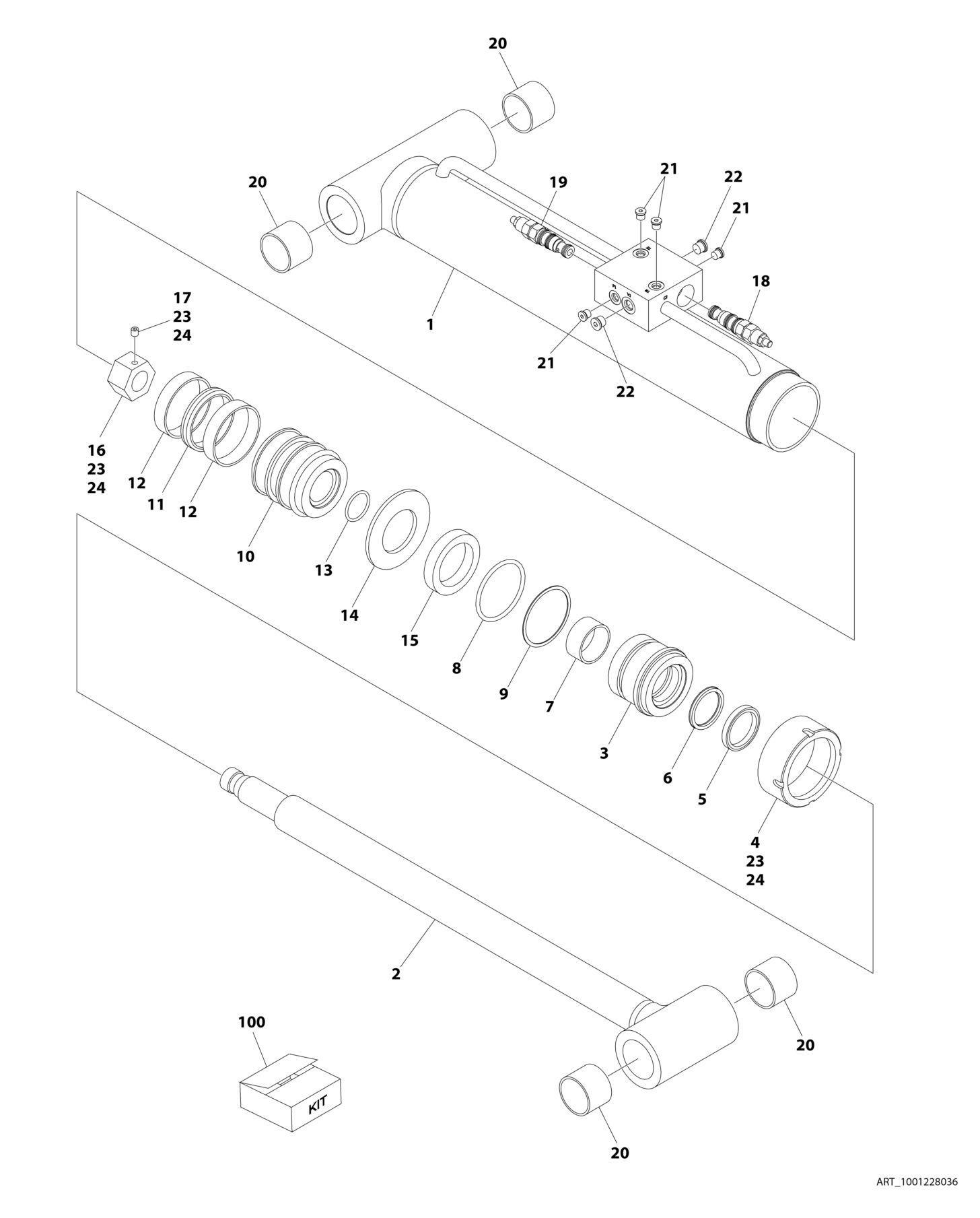

FIGURE 5 13. MID LIFT CYLINDER ASSEMBLY (E/M450AJ & E/M400AJP (SERVICE REPLACEMENT
ITEM PART NUMBER QTY
DESCRIPTION
1001228036 Ref LIFT CYLINDER ASSEMBLY - MID Ref Note: Original Cylinder may have been replaced with Service Replacement. Identify PN Stamped on Cylinder Before Ordering Parts. 1 See Note NSS Barrel Weldment (Note: Not Available for Purchase) 2 70006543 1 Rod Weldment 3 70006542 1 Head 4 70006533 1 Retainer 5 See Note NSS Wiper (Note: Use Item 100) 6 See Note NSS Seal, Rod (Note: Use Item 100) 7 See Note NSS Ring, Wear (Note: Use Item 100) 8 See Note NSS O-Ring (Note: Use Item 100) 9 See Note NSS Ring, Back-up (Note: Use Item 100) 10 70006532 1 Piston 11 See Note NSS Seal (Note: Use Item 100) 12 See Note NSS Ring, Wear (Note: Use Item 100) 13 See Note NSS O-Ring (Note: Use Item 100) 14 4740207 1 Washer 15 70006539 1 Spacer 16 3300281 1 Nut 17 3900170 1 Setscrew 18 4640634 1 Cartridge, Holding Valve 18 2900770 1 Seal Kit - 4640634 Valve 19 4641386 1 Cartridge, Holding Valve 19 7011376 1 Seal Kit - 4641386 Valve 20 0961950 4 Bushing 21 2220883 4 Plug, O-Ring 22 2220885 2 Plug, O-Ring 23 0100011 AR Compound, Locking 24 0100038 AR Primer, Locking 100 2901806 1 Seal Kit (Includes Items 5-9 & 11-13)
REV
E
