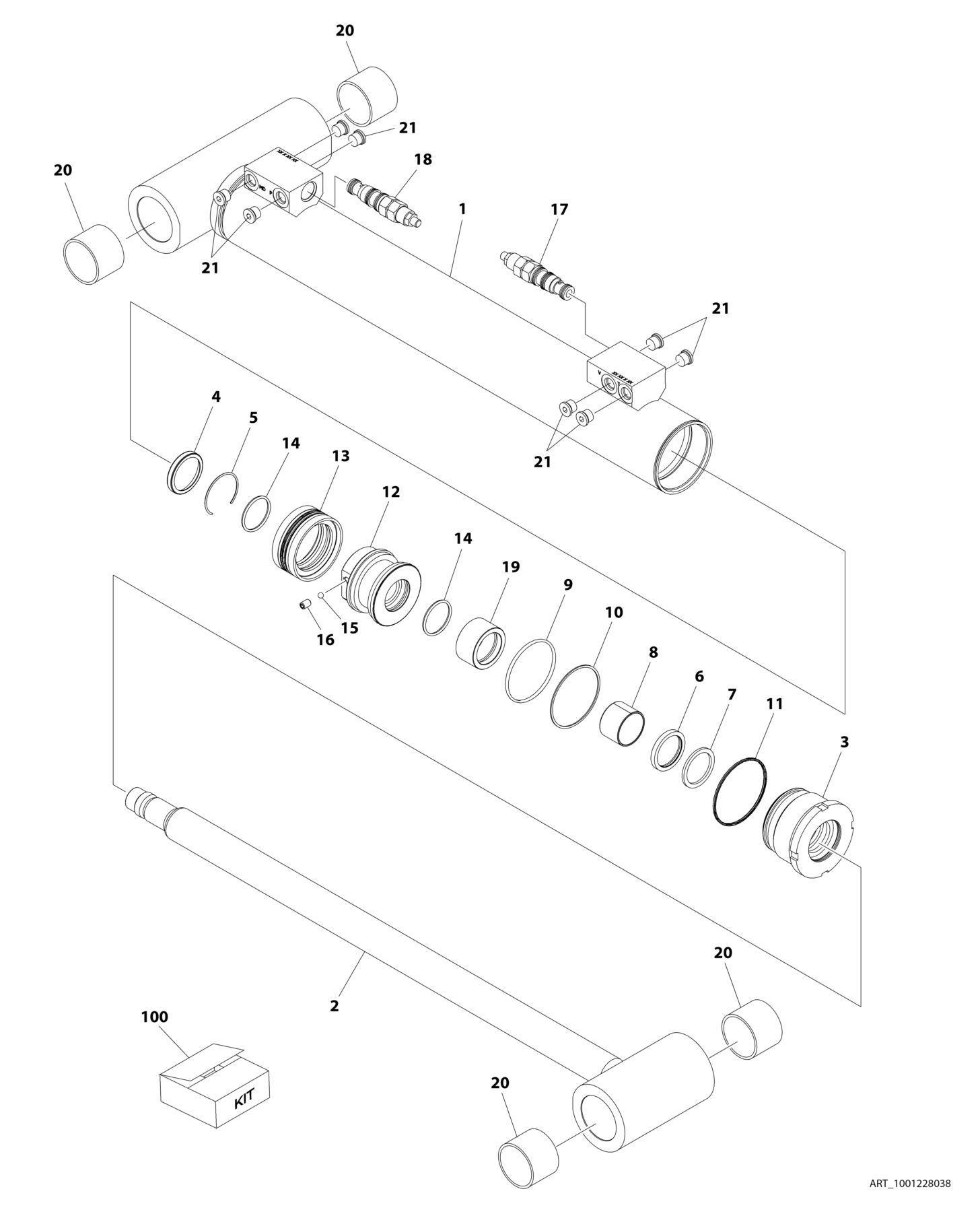

FIGURE 5 14. MID LIFT CYLINDER ASSEMBLY (E/M400A) (SERVICE REPLACEMENT
ITEM PART NUMBER QTY
DESCRIPTION
1001228038 Ref LIFT CYLINDER ASSEMBLY - MID - E400An Ref Note: Original Cylinder may have been replaced with Service Replacement. Identify PN Stamped on Cylinder Before Ordering Parts. 1 See Note NSS Barrel Weldment (Note: Not Available for Purchase) 2 70006600 1 Rod Weldment 3 70006599 1 Head 4 See Note 1 Wiper (Note: Use Item 100) 5 70002373 1 Retainer 6 See Note NSS Seal, Rod (Note: Use Item 100) 7 See Note NSS Ring, Back-up (Note: Use Item 100) 8 70005143 1 Bearing 9 See Note NSS O-Ring (Note: Use Item 100) 10 See Note NSS Ring, Back-up (Note: Use Item 100) 11 70006598 1 O-Ring 12 70006597 1 Piston 13 See Note NSS Seal (Note: Use Item 100) 14 See Note NSS O-Ring (Note: Use Item 100) 15 70022564 1 Ball, Steel 16 70006596 1 Setscrew 17 4640634 1 Cartridge, Holding Valve 17 2900770 1 Seal Kit - 4640634 Valve 18 4641386 1 Cartridge, Holding Valve 18 7011376 1 Seal Kit - 4641386 Valve 19 70006595 1 Spacer 20 0961950 4 Bushing 21 2220885 8 Plug, O-Ring 100 70006594 1 Seal Kit (Includes 4, 6, 7, 9, 10, 13 & 14)
REV
A
