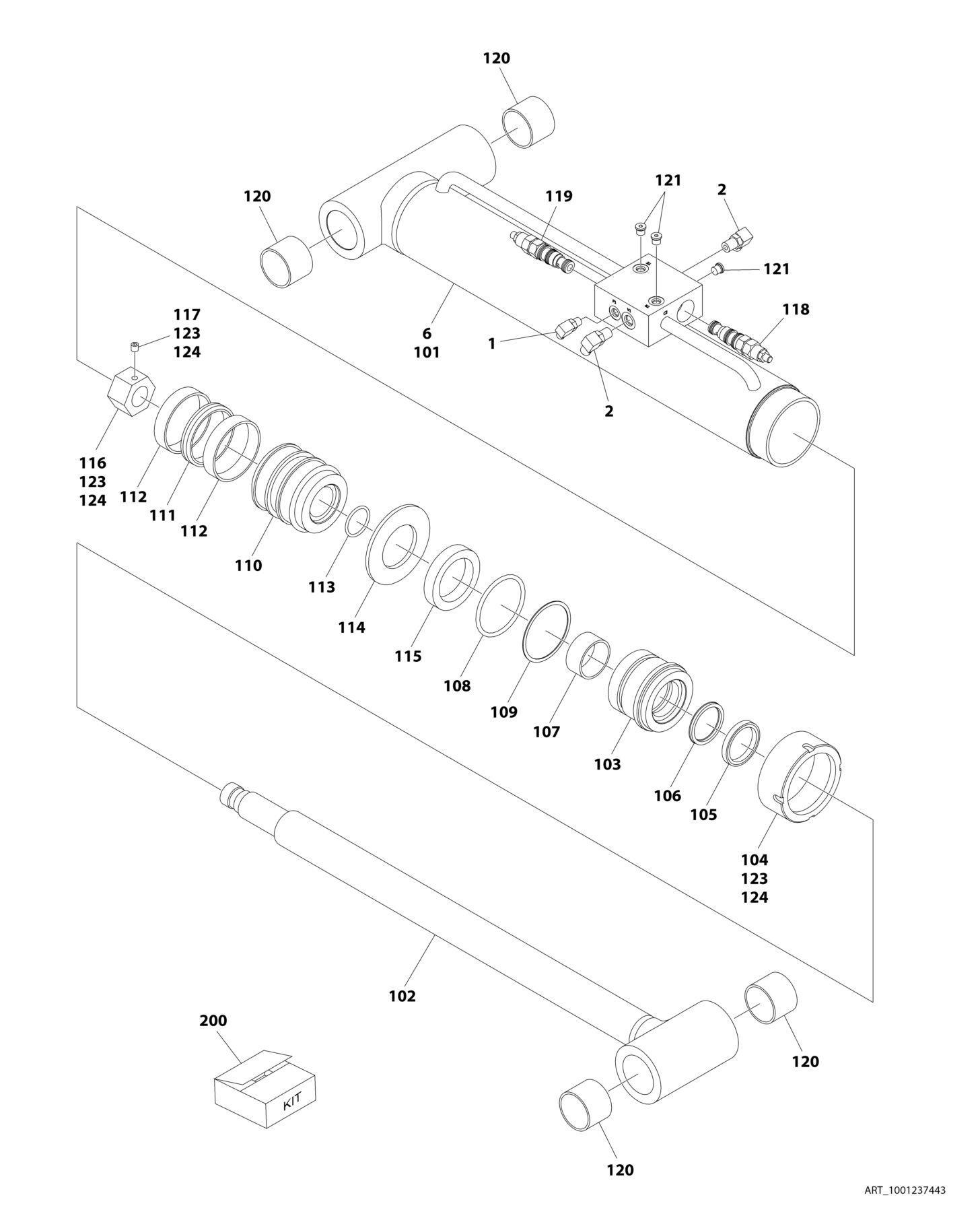

FIGURE 5 12. LIFT CYLINDER ASSEMBLY MID E/M450A (SERVICE REPLACEMENT
ITEM PART NUMBER QTY
DESCRIPTION
1001237443 Ref LIFT CYLINDER ASSEMBLY - MID Ref Note: Original Cylinder may have been replaced with Service Replacement. Identify PN Stamped on Cylinder Before Ordering Parts. 1 2220446 1 Fitting, 90 JIC/ORB 2 2220473 2 Fitting, 90 JIC/ORB See Note Ref Note: See Hydraulic Diagram p/n 1001178385 for item 3 hose replaces hose p/n 2751126 & item 4 hose replaces p/n 2751127. 3 2751009 1 Hose (Not Shown) 4 2753301 1 Hose (Not Shown) 6 1001228036 1 Lift Cylinder Assembly - Mid (See Items 101-124 for Breakdown) 101 See Note NSS Barrel Weldment (Note: Not Available for Purchase) 102 70006543 1 Rod Weldment 103 70006542 1 Head 104 70006533 1 Retainer 105 See Note NSS Wiper (Note: Use Item 200) 106 See Note NSS Seal, Rod (Note: Use Item 200) 107 See Note NSS Ring, Wear (Note: Use Item 200) 108 See Note NSS O-Ring (Note: Use Item 200) 109 See Note NSS Ring, Back-up (Note: Use Item 200) 110 70006532 1 Piston 111 See Note NSS Seal (Note: Use Item 200) 112 See Note NSS Ring, Wear (Note: Use Item 200) 113 See Note NSS O-Ring (Note: Use Item 200) 114 4740207 1 Washer 115 70006539 1 Spacer 116 3300281 1 Nut 117 3900170 1 Setscrew 118 4640634 1 Cartridge, Holding Valve 118 2900770 1 Seal Kit - 4640634 Valve 119 4641386 1 Cartridge, Holding Valve 119 7011376 1 Seal Kit - 4641386 Valve 120 0961950 4 Bushing 121 2220883 3 Plug, O-Ring 123 0100011 AR Compound, Locking 124 0100038 AR Primer, Locking 200 2901806 1 Seal Kit (Includes Items 105-109 & 111-113)
REV
A
