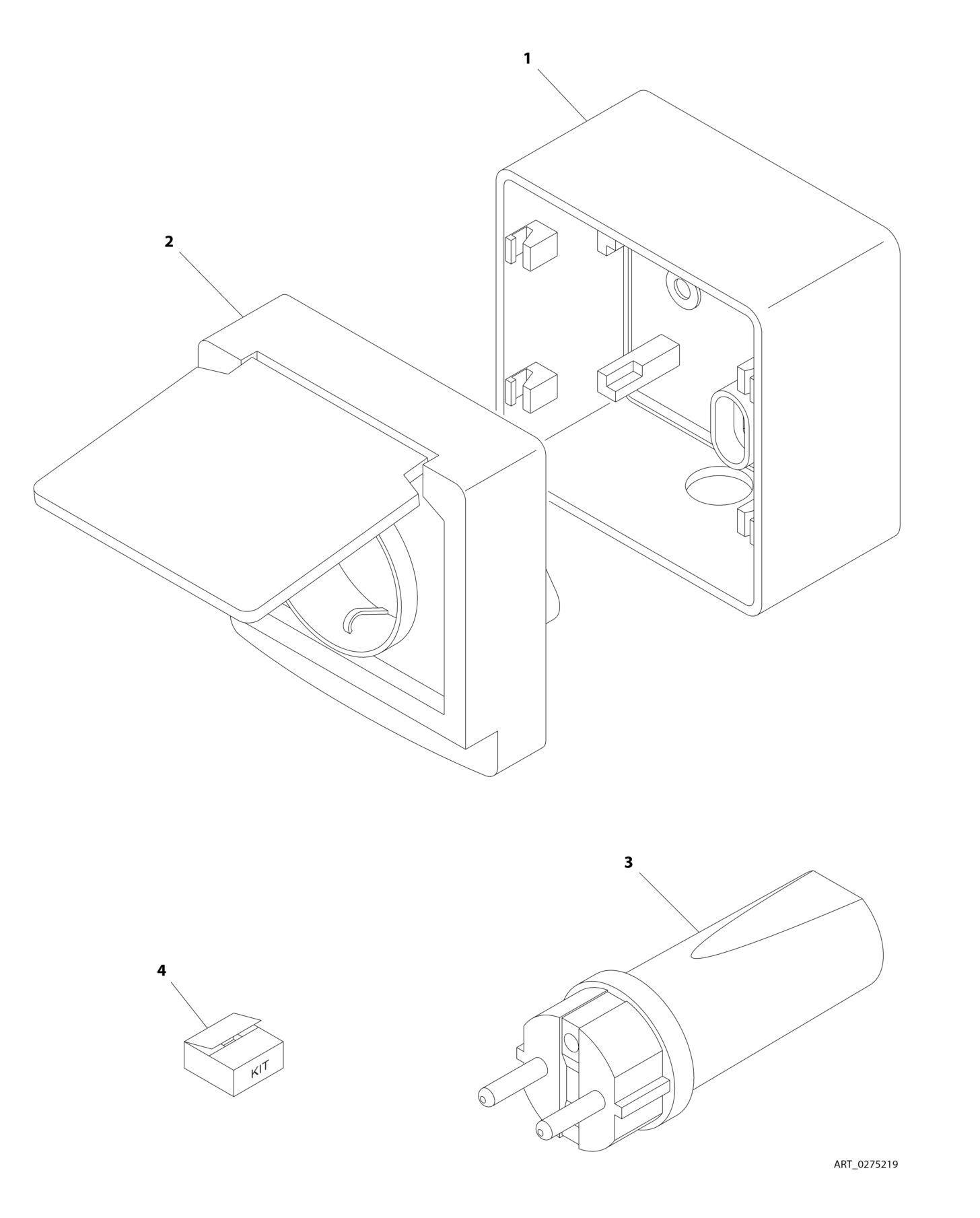

FIGURE 8-43. RECEPT ACLE BOX KIT - 220V CEE7 SIDE GROUND 70MMX70MM (CE SPEC

FIGURE 8-43. RECEPTACLE BOX KIT - 220V CEE7 SIDE GROUND 70MMX70MM (CE SPEC)

FIGURE 8-43. RECEPTACLE BOX KIT - 220V CEE7 SIDE GROUND 70MMX70MM (CE SPEC)

ITEM PART NUMBER QTY

DESCRIPTION

0275219 Ref RECEPTACLE BOX KIT - 220V CEE7 SIDE GROUND 70MMX70MM (CE SPEC) 1 1001141967 1 Box, Switch 2 1001141969 1 Receptacle 3 4461205 1 Plug, Male 4 1001141970 1 Plug and Socket Kit (Includes Items 1-3 and Female Plug p/n 4461206)

REV

B
