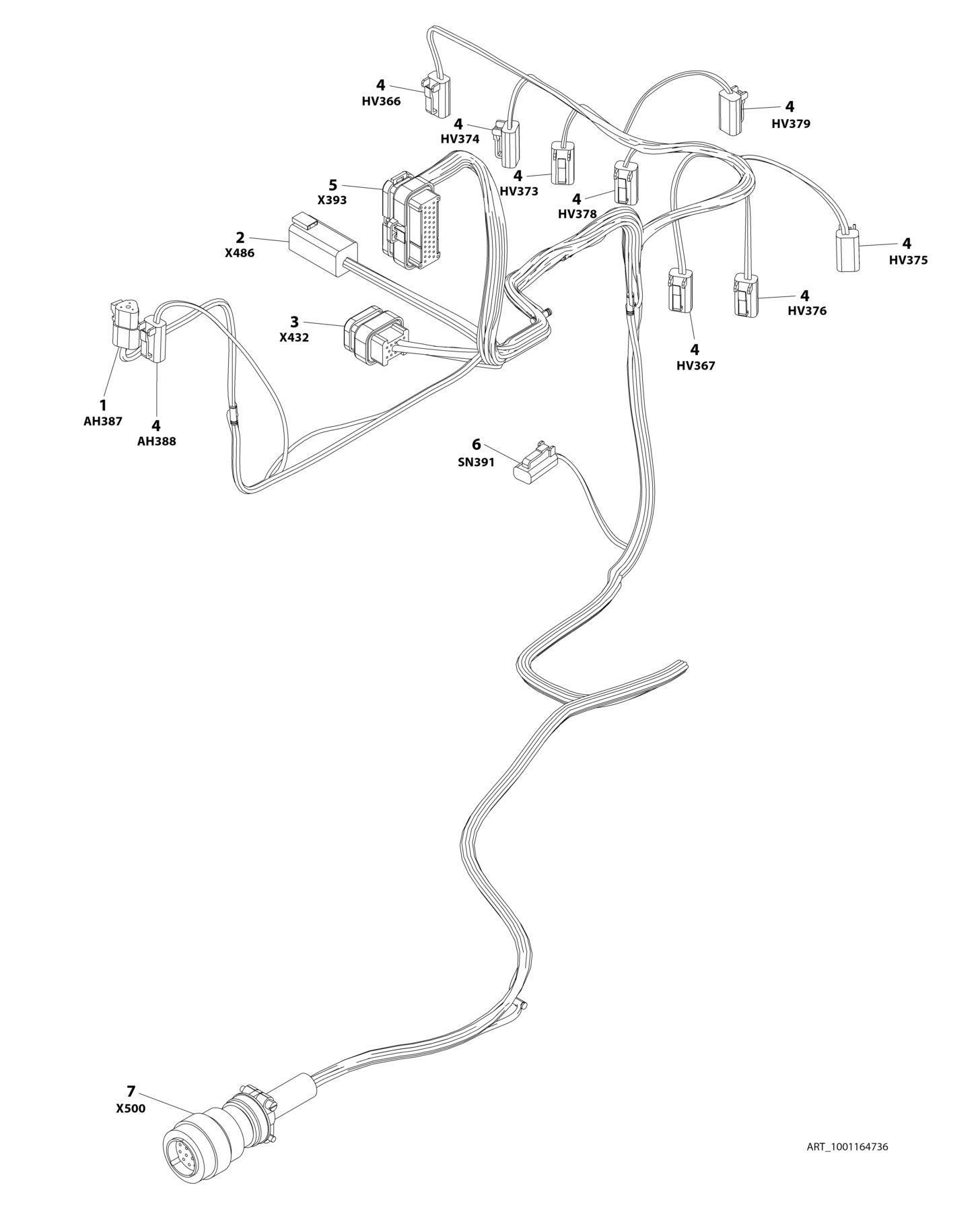

FIGURE 8-51. VALVE HARNESS - MAIN VALVE

FIGURE 8-51. VALVE HARNESS - MAIN VALVE

ITEM PART NUMBER QTY

DESCRIPTION

1001164736 Ref VALVE HARNESS - MAIN VALVE 1 4460539 1 Plug, Male - 3 Position 1 4460465 3 Socket, Female 2 4460899 1 Receptacle, Female - 6 Position 2 4460464 5 Pin, Male 2 4460466 1 Plug, Terminal 3 4460872 1 Connector - 13 Position 3 4460871 9 Socket, Female 3 4460905 4 Plug, Terminal 4 4460891 9 Plug, Male - 2 Position 4 4460465 18 Socket, Female 5 4460875 1 Connector - 35 Position 5 4460871 25 Socket, Female 5 4460905 10 Plug, Terminal 6 4460424 1 Plug, Male - 2 Position 6 4460268 2 Socket, Female 7 4460754 1 Connector - 14 Position 7 4460465 13 Socket, Female 7 4460466 1 Plug, Terminal
