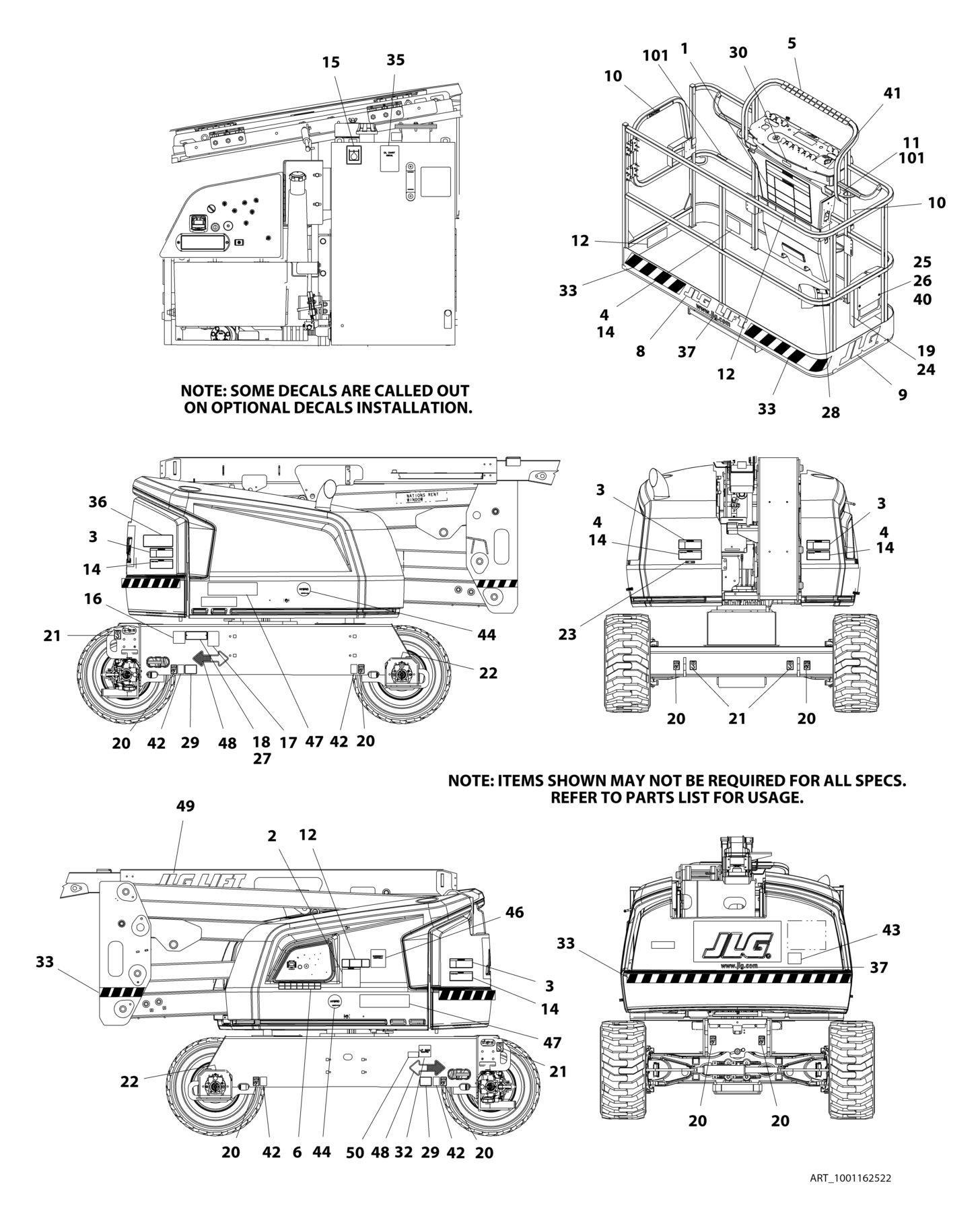

FIGURE 9-1. DECAL INSTALLATION - AUSTRALIAN SPEC ( ENGLISH
ITEM PART NUMBER QTY DESCRIPTION
REV
1001169157 Ref DECAL INSTALLATION - REFERENCE CHART N 1001162522 Ref DECAL INSTALLATION - AUSTRALIAN SPEC (ENGLISH) G 1 1001162429 1 Decal - Tipping/Electrocution 2 1705822 1 Decal - Electrocution/Safety Manual 3 1705961 4 Decal - Danger Electrocution 11 1704277 2 Decal - Attach Lanyard Here (SN E300000100 through
E300005043)
12 1001190913 1 Decal - Max Capacity 14 1701518 6 Decal - Warning/Crushing 15 1701504 1 Decal - Hydraulic Oil 16 See Note NSS Decal - Bar Code (Note: Not Available for Purchase) 19 1701509 1 Decal - Manual 20 1702300 8 Decal - Tie Down /Lift 21 1701500 4 Decal - Tie Down /Lift 22 1703687 2 Decal - Arrow 23 3251242 1 Decal - 240V / 50HZ (SN E300000100 through E300003037) 24 0860520 1 Box, Manual Storage 25 4751400 4 Washer, 1/4 26 3311405 4 Nut, Lock 1/4-20 27 3820001 4 Rivet 28 1705828 1 Decal - Footswitch 35 1704412 1 Decal - Hydraulic Fluid 36 1001172217 1 Decal - Lift Diagram (Without Turntable Lock) 36 1001223118 1 Decal - Lift Diagram (With Turntable Lock) 37 1704885 2 Decal - Website 40 0641406 4 Bolt, 1/4-20 X 3/4 42 1701499 4 Decal - No Tie Down/Lift 43 1001204510 1 Decal – Sound Power Level (SN 1300007286 through
1300007383, SN E300004592 through E300007980)
46 1001112551 1 Decal - Emergency Controls 48 1701529 2 Decal - Arrow 100 1001232026 1 Decal – Platform Lanyard Kit (Not Shown) (SN E300005043
through E300007980)
101 1704277 3 Decal - Attach Lanyard Here
