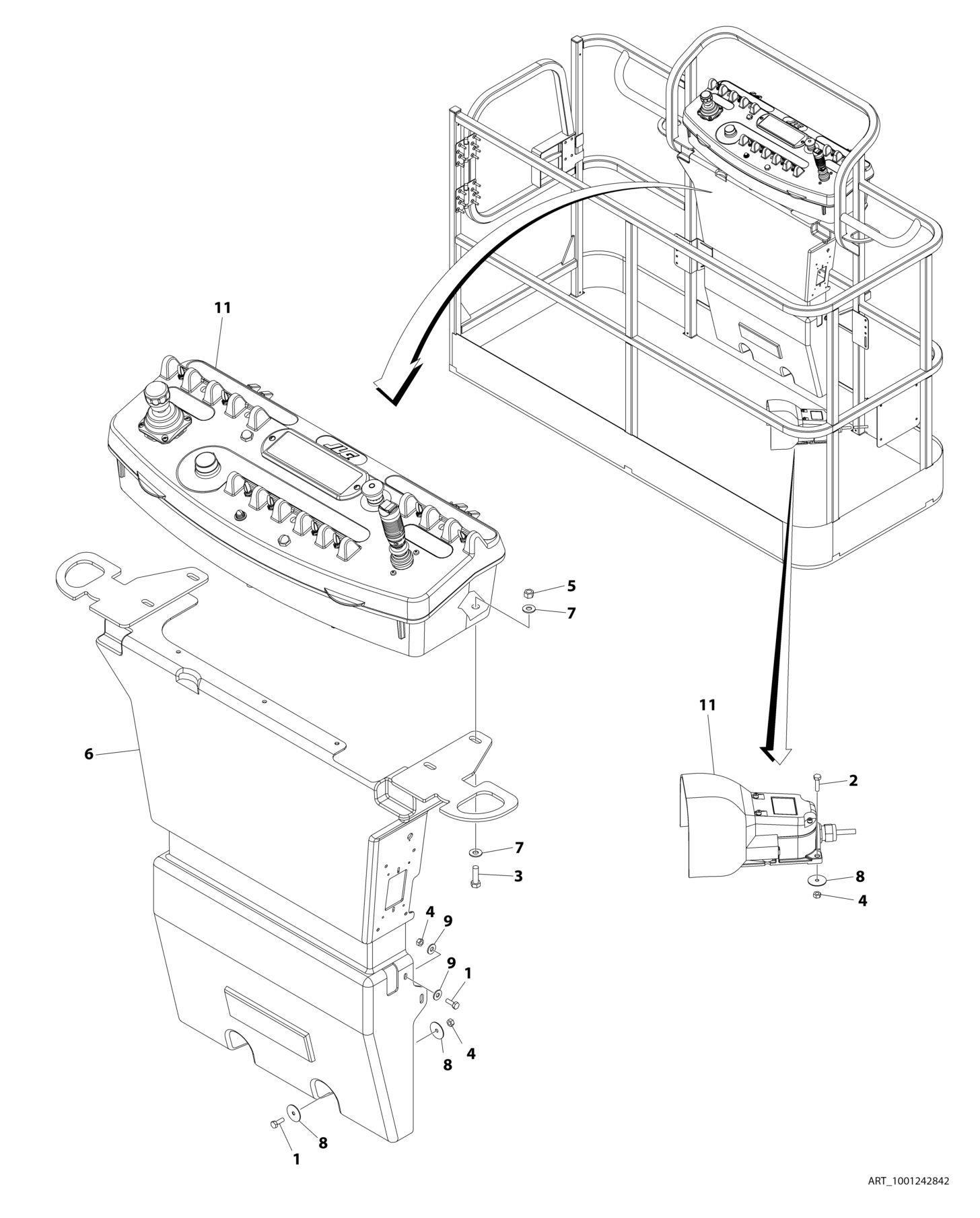

FIGURE 5-10. CONSOLE BOX INST ALLATION - WITH SKYGUARD (SN E3000007543 through E300007980
ITEM PART NUMBER QTY DESCRIPTION REV
1001242842 Ref CONSOLE BOX INSTALLATION - 450AJ WITH SKYGUARD A 1 0641406 4 Bolt 1/4 x 3/4 2 0641408 3 Bolt 1/4 x 1 3 0641610 4 Bolt 3/8 x 1-1/4 4 3311405 7 Nut Lock 1/4 5 3311605 4 Nut Lock 3/8 6 3380434 1 Panel, Decal Mount 7 4751600 8 Washer 3/8 8 4740362 7 Washer 1/4 9 4751400 4 Washer 1/4 10 1001164728 1 Harness, Platform Valve (Not Shown - See ELECTRICAL SECTION for Breakdown) 11 1001242847 1 Platform Console Box Assembly (See PLATFORM CONSOLE BOX ASSEMBLY - WITH SKYGUARD for Breakdown)
