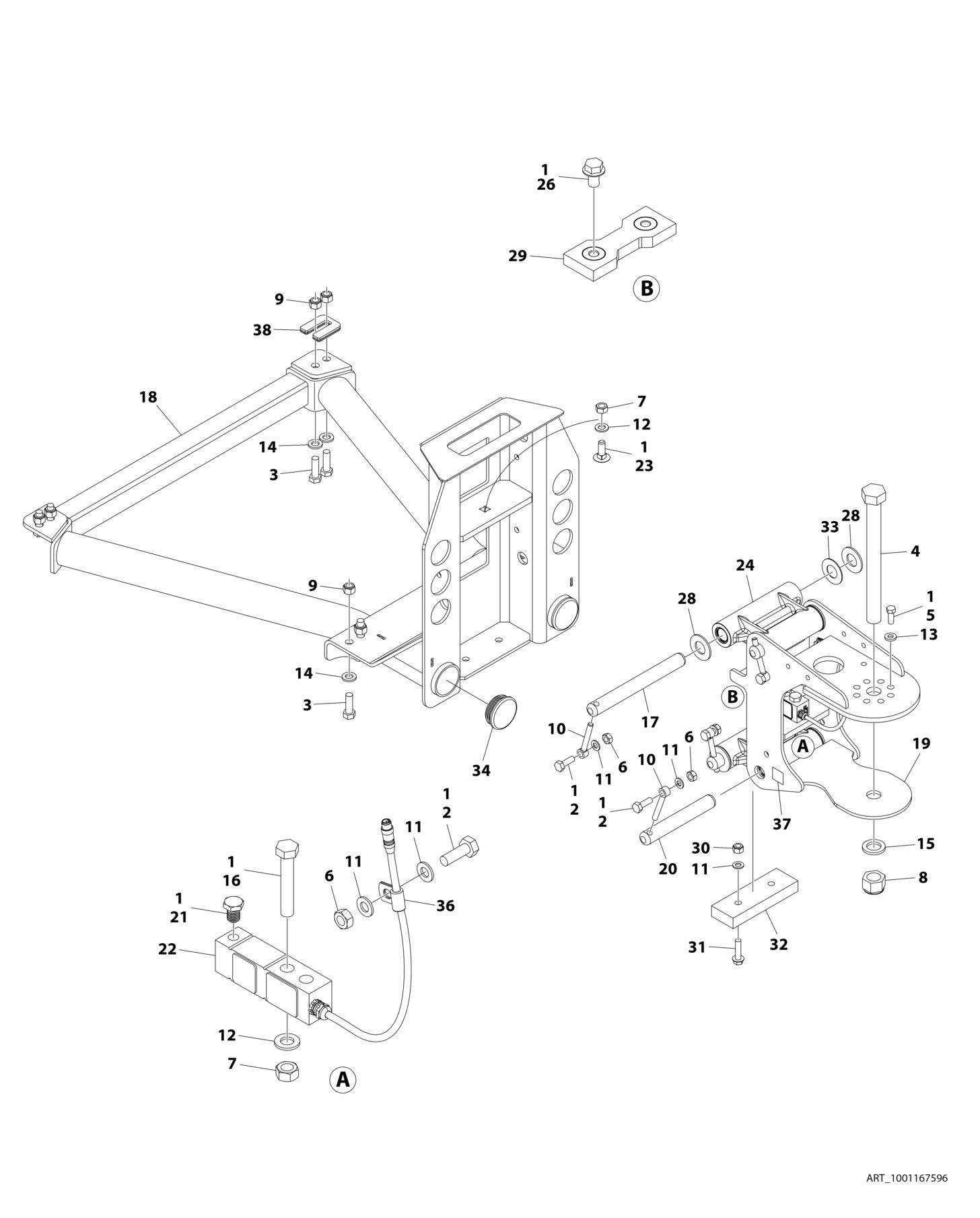

FIGURE 4-10. PLATFORM SUPPORT INSTALLATION - WITH 1 CELL LSS
ITEM PART NUMBER QTY DESCRIPTION REV
1001167596 Ref PLATFORM SUPPORT INSTALLATION - WITH 1 CELL LSS K 1 0100011 AR Compound, Locking 2 0761014 4 Bolt M10 x 30 3 0641812 8 Bolt 1/2 x 1-1/2 3 0761216 8 Bolt M12 x 40 4 0642684 1 Bolt 1 x 10-1/2 5 0681608 8 Bolt 3/8 x 1 6 3291001 AR Nut M10 7 3291201 3 Nut M12 8 3300243 1 Nut 1 9 3311805 8 Nut 1/2 9 3291205 8 Nut M12 10 3841143 4 Keeper 11 4812000 AR Washer M10 12 4812100 3 Washer M12 13 4891600 8 Washer 3/8 14 4891800 8 Washer 1/2 14 5241200 8 Washer M12 15 4892600 1 Washer 1 16 1001098828 2 Bolt M12 x 70 Grade 10.9 17 1001167565 2 Pin 18 1001200494 1 Support 19 1001167567 1 Platform Support 20 1001168402 2 Pin 21 1001188622 1 Screw M12 22 1001172663 1 Gauge, Load Sensing 23 1001188844 1 Bolt M12 x 35 24 1001201351 2 LSS Link Assembly 24 1001187382 4 Bearing 24 1001187383 4 Seal 26 5251008 2 Bolt M10 x 16 27 1001175244 1 Harness, LSS (Not Shown) (SN E300000100 through
E300003634)
28 1001189002 8 Bearing 29 1001190985 1 Pad, Wear 30 3291005 2 Nut M10 31 5251016 2 Bolt M10 x 40 32 1001200491 1 Plate 33 1001189001 4 Bearing 34 1001204725 2 Plug 35 4460428 1 Connector, Strain Relief (Not Shown) (SN E300000100 through
E300003634)
36 91203039 1 Clamp (SN 1300007286 through 1300007383, SN E300003634
through E300007980)
37 1001216630 2 Decal - Tie Down/No Lift(SN 1300007286 through 1300007383,
SN E300003634 through E300007980)
38 1001238421 AR Platform Leveling Kit
