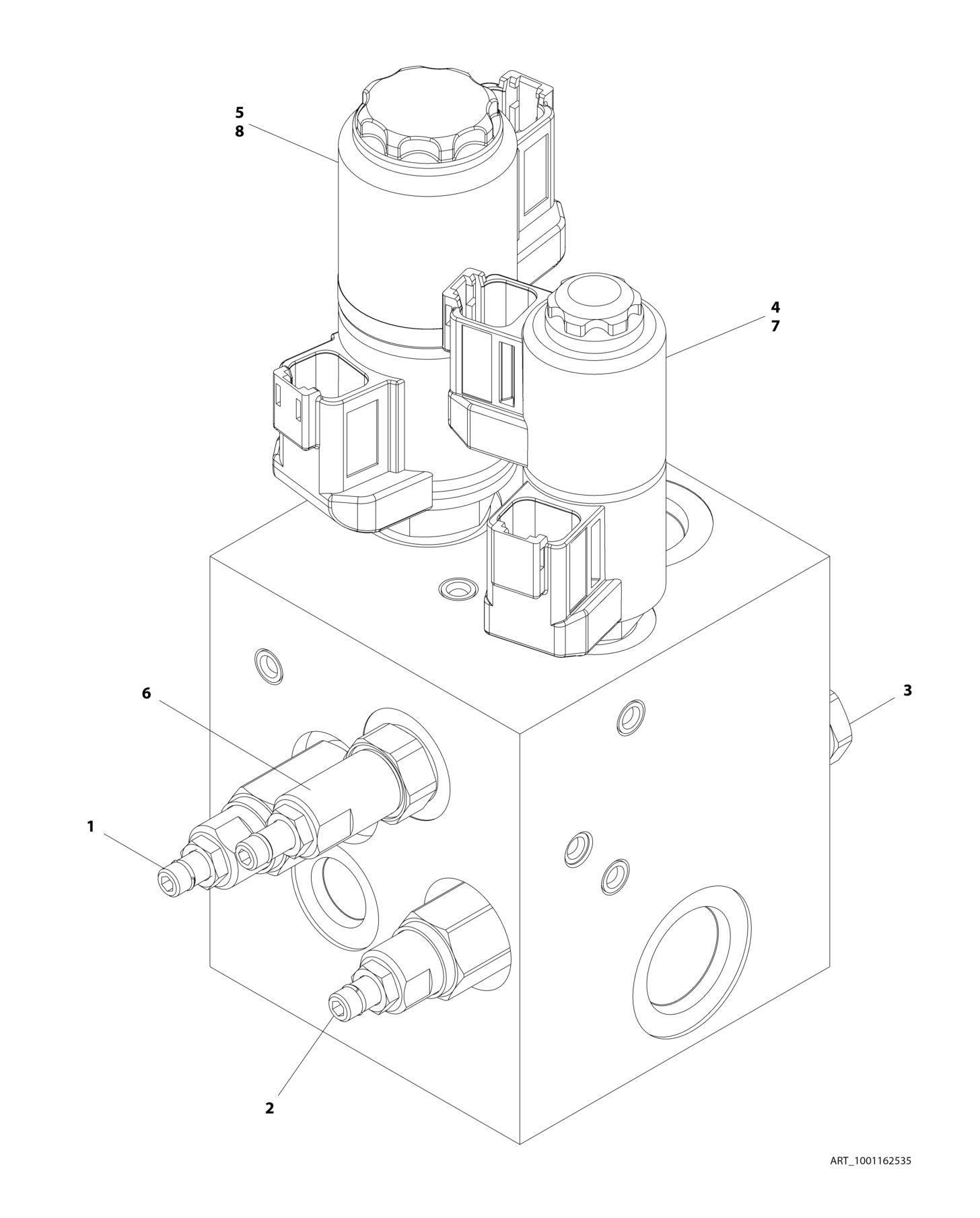

FIGURE 4-12. UPRIGHT VALVE ASSEMBLY

FIGURE 4-12. UPRIGHT VALVE ASSEMBLY

ITEM PART NUMBER QTY

DESCRIPTION

1001162535 Ref UPRIGHT VALVE ASSEMBLY 1 70004864 1 Cartridge, Valve 1 70004875 1 Seal Kit - 70004864 Valve 2 70004865 1 Cartridge, Valve 2 70004875 1 Seal Kit - 70004865 Valve 3 70004866 1 Cartridge, Relief Valve 3 70004867 1 Seal Kit - 70004866 Valve 4 70004868 1 Cartridge, Solenoid Valve Less Coil 4 70004869 1 Seal Kit - 70004868 Valve 5 7027625 1 Cartridge, Solenoid Valve Less Coil 5 70000100 1 Seal Kit - 7027625 Valve 6 70004870 1 Cartridge, Valve (SN E300000100 through E300005535) 6 70006660 1 Cartridge, Valve (SN 1300007286 through 1300007383, SN

E300005535 through E300007980)

6 70004867 1 Seal Kit - 70004870/70006660 Valve 7 70004871 2 Coil 8 7027628 2 Coil
