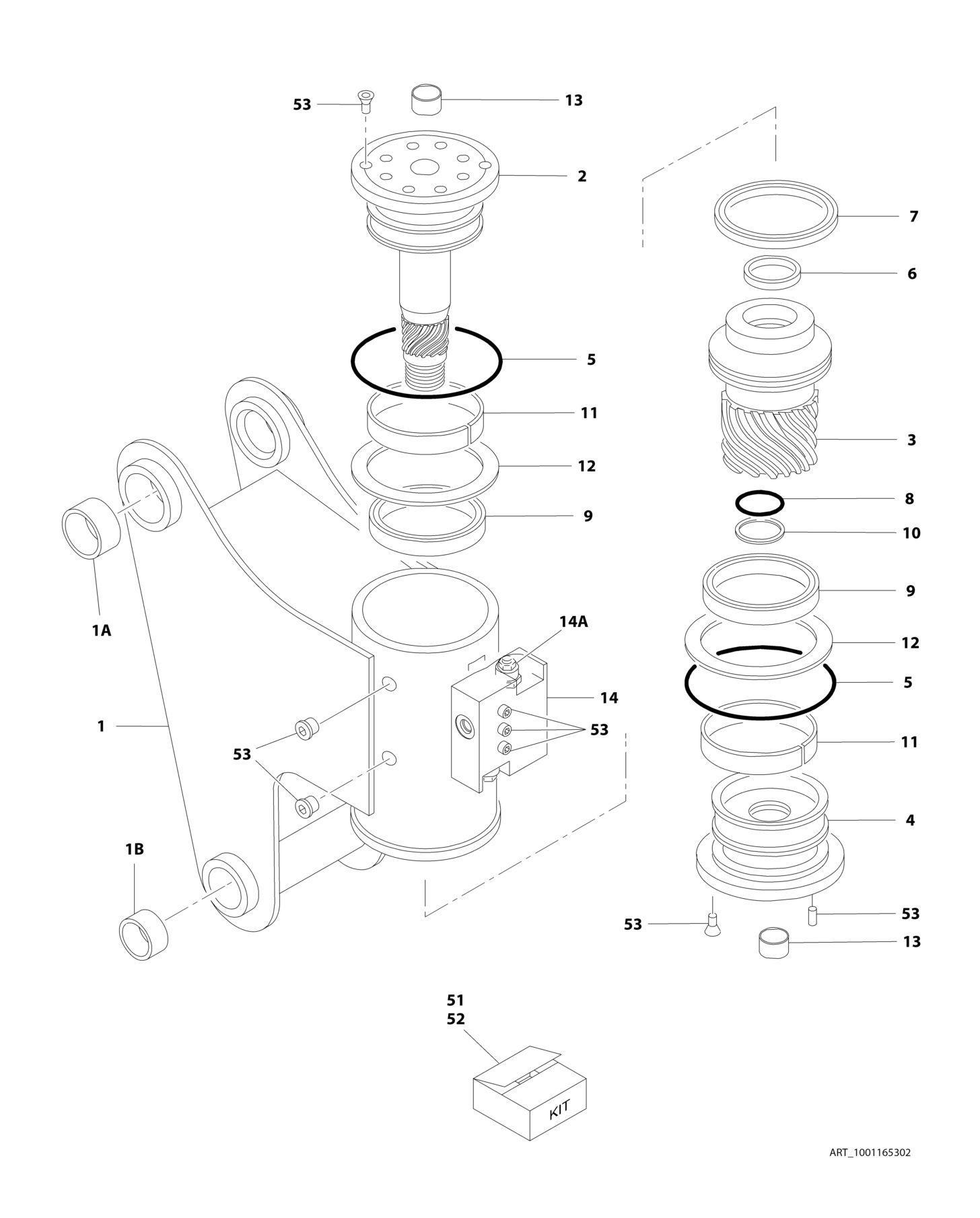

FIGURE 4-6. ROTATOR ASSEMBLY (SN E300002833 through E300004882
ITEM PART NUMBER QTY DESCRIPTION REV
1001165302 Ref ROTATOR ASSEMBLY (SN E300002833 through E300004882) I 1 See Note NSS Housing (Note: Purchase Complete Assembly) 1A 0962257 2 Bushing 1B 0961947 2 Bushing 2 7017162 1 Shaft 3 7017163 1 Piston 4 7017164 1 Cap, End 5 See Note NSS O-Ring (Note: Use p/n 70000342) 6 See Note NSS Seal, Rod (Note: Purchase p/n 70000342) 7 See Note NSS Seal, Piston (Note: Purchase p/n 70000342) 8 See Note NSS Seal, Cap (Note: Purchase p/n 70000342) 9 See Note NSS Packing, Bearing (Note: Purchase p/n 70000342) 10 See Note NSS Ring, Back-up (Note: Purchase p/n 70000342) 11 See Note NSS Bearing, Shaft (Note: Purchase p/n 7017159) 12 See Note NSS Washer, Thrust (Note: Purchase p/n 7017159) 13 7017195 2 Bushing 14 7017172 1 Counterbalance Valve Assembly 14A 7017192 2 Valve Cartridge (No Seal Kit Available) 51 70000342 1 Seal Kit (Includes Items 5-10) 52 7017159 1 Bearing Kit (Includes Items 11 & 12) 53 7017142 1 Hardware Kit
