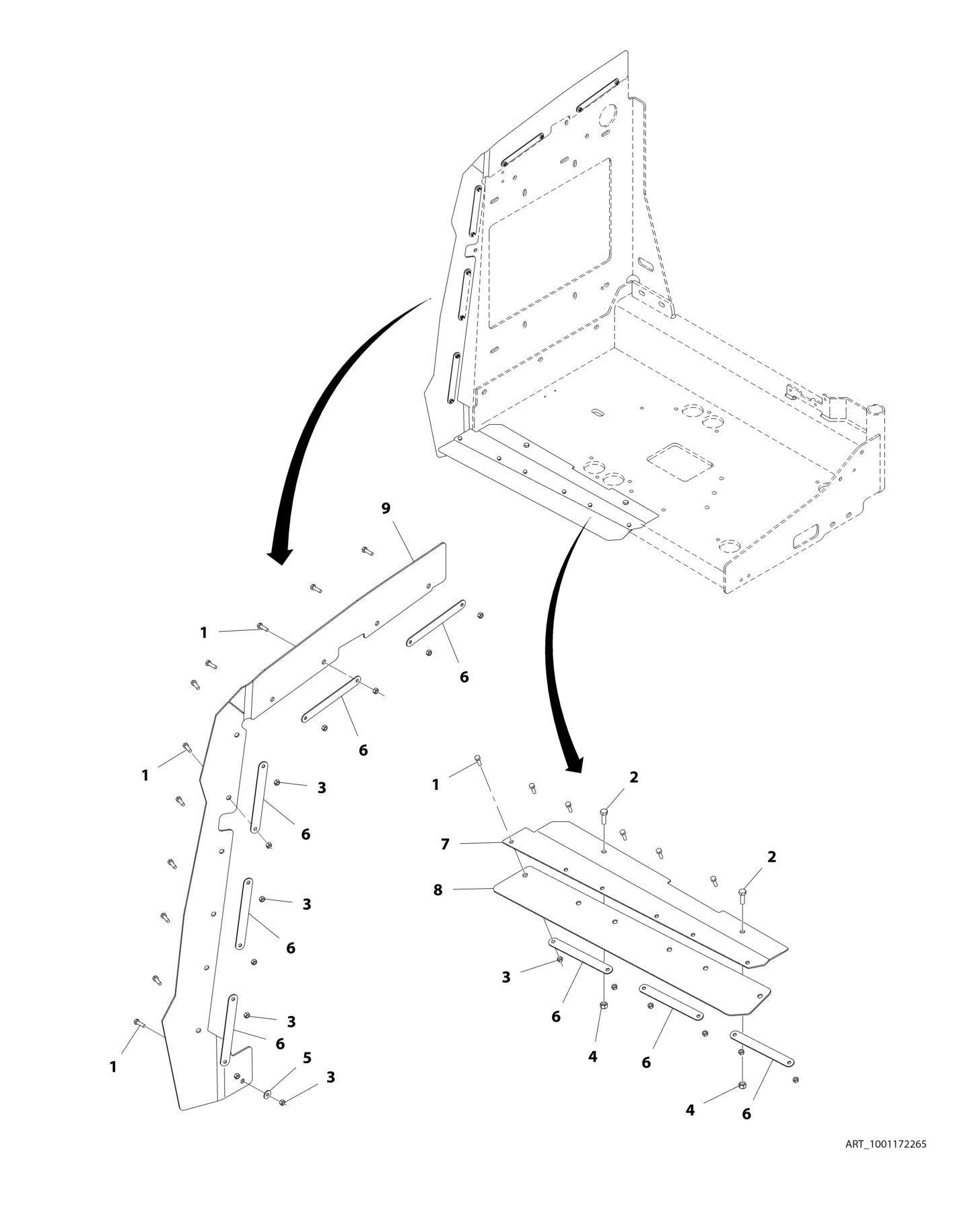

FIGURE 3-14. ENGINE BAFFLE INSTALLATION

from JLG 520AJ Parts Manual (3121666) – PDF DOWNLOAD

FIGURE 11-1. SPECIAL OPTIONS

FIGURE 3-14. ENGINE BAFFLE INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

1001172265 Ref ENGINE BAFFLE INSTALLATION 1 0760610 17 Bolt, M6 X 20mm 2 0760812 2 Bolt, M8 X 25mm 3 3290605 17 Nut, Lock M6 X 1 4 3290805 2 Nut, Lock M8 X 1.25 5 4811702 1 Washer, M6 6 1001167164 8 Plate, Support 7 1001170663 1 Bracket 8 1001170664 1 Seal 9 1001172264 1 Seal

FIGURE 3-14. ENGINE BAFFLE INSTALLATION

Next Article

FIGURE 11-1. SPECIAL OPTIONS

FIGURE 3-14. ENGINE BAFFLE INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

REV
