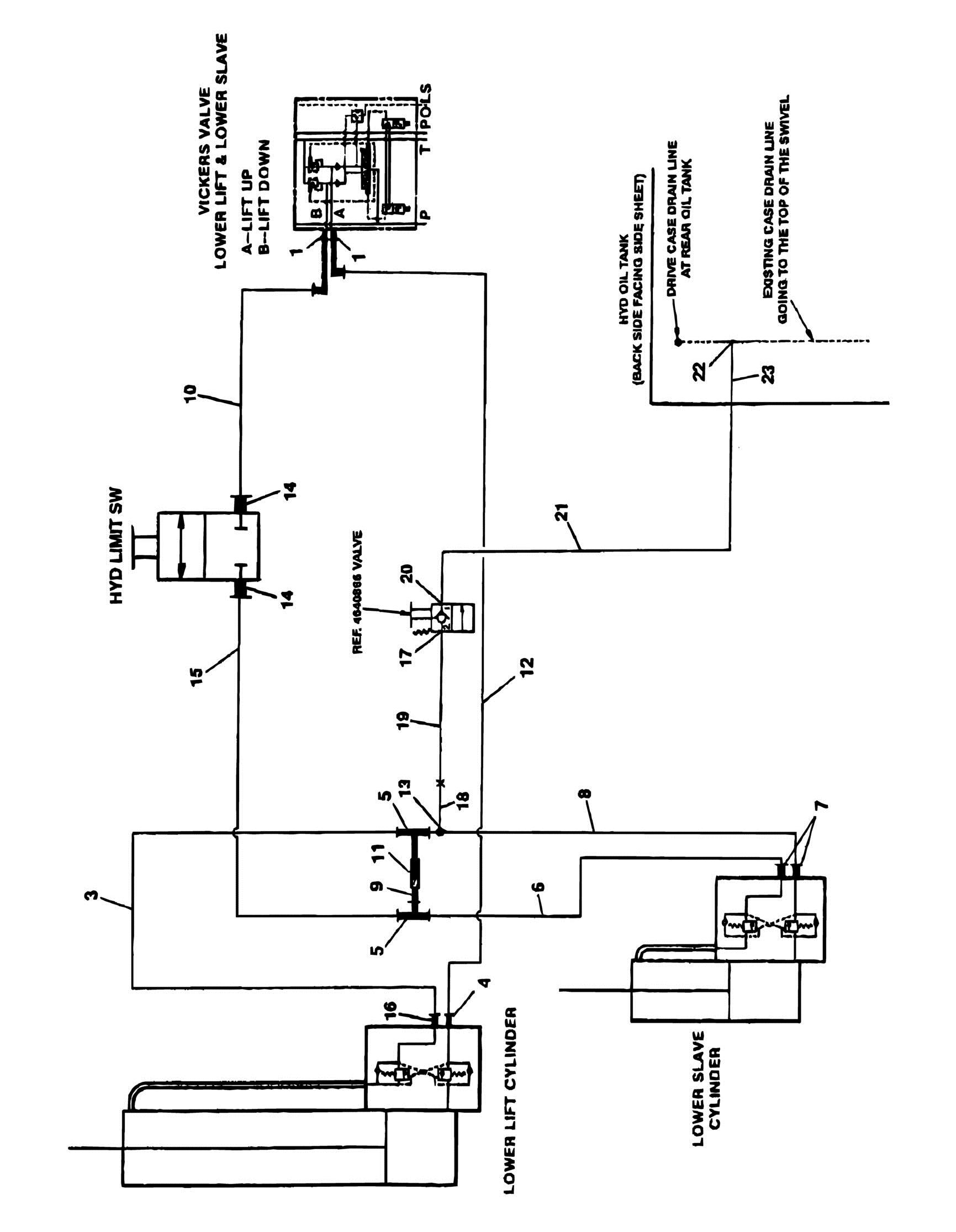

FIGURE 6-4. LIFT AND LEVEL (TOWER BOOM) HYDRAULIC DIAGRAM
ITEM PART NUMBER QTY
DESCRIPTION
Ref LIFT AND LEVEL (TOWER BOOM) HYDRAULIC DIAGRAM 2791487 Ref Gas and Diesel Machines 2791387 Ref Electric Machines 1 2220577 2 Fitting, Straight 3 2750991 1 Hose 4 2220343 1 Fitting, Straight (Gas and Diesel Machines) 4 2180423 1 Fitting, Orifice (.078) (Electric Machines) 4 2180548 1 Fitting, Modified Straight (Electric Machines) 5 2220604 2 Fitting, Tee 6 2751163 1 Hose 7 2220399 2 Fitting, Straight 8 2751164 1 Hose 9 2200283 1 Fitting, Coupling 10 2751133 1 Hose 11 4640160 1 Valve, Relief 12 2751110 1 Hose 13 2220635 1 Fitting, Tee (Gas and Diesel Machines) 14 2220703 2 Fitting, 90 15 2750911 1 Hose 16 2220343 1 Fitting, Straight 17 2220582 1 Fitting, Straight (Gas and Diesel Machines) 18 2220609 1 Fitting, Reducer (Gas and Diesel Machines) 19 2750891 1 Hose (Gas and Diesel Machines) 20 2220472 1 Fitting, 90 (Gas and Diesel Machines) 21 2751899 1 Hose (Gas and Diesel Machines) 22 2220385 1 Fitting, Tee (Gas and Diesel Machines) 23 2220618 1 Fitting, Reducer (Gas and Diesel Machines) 0100020 AR Sealant, Pipe 2901310 1 Resynchronizing Kit (Standard January 1995 to Present)
REV
D E
