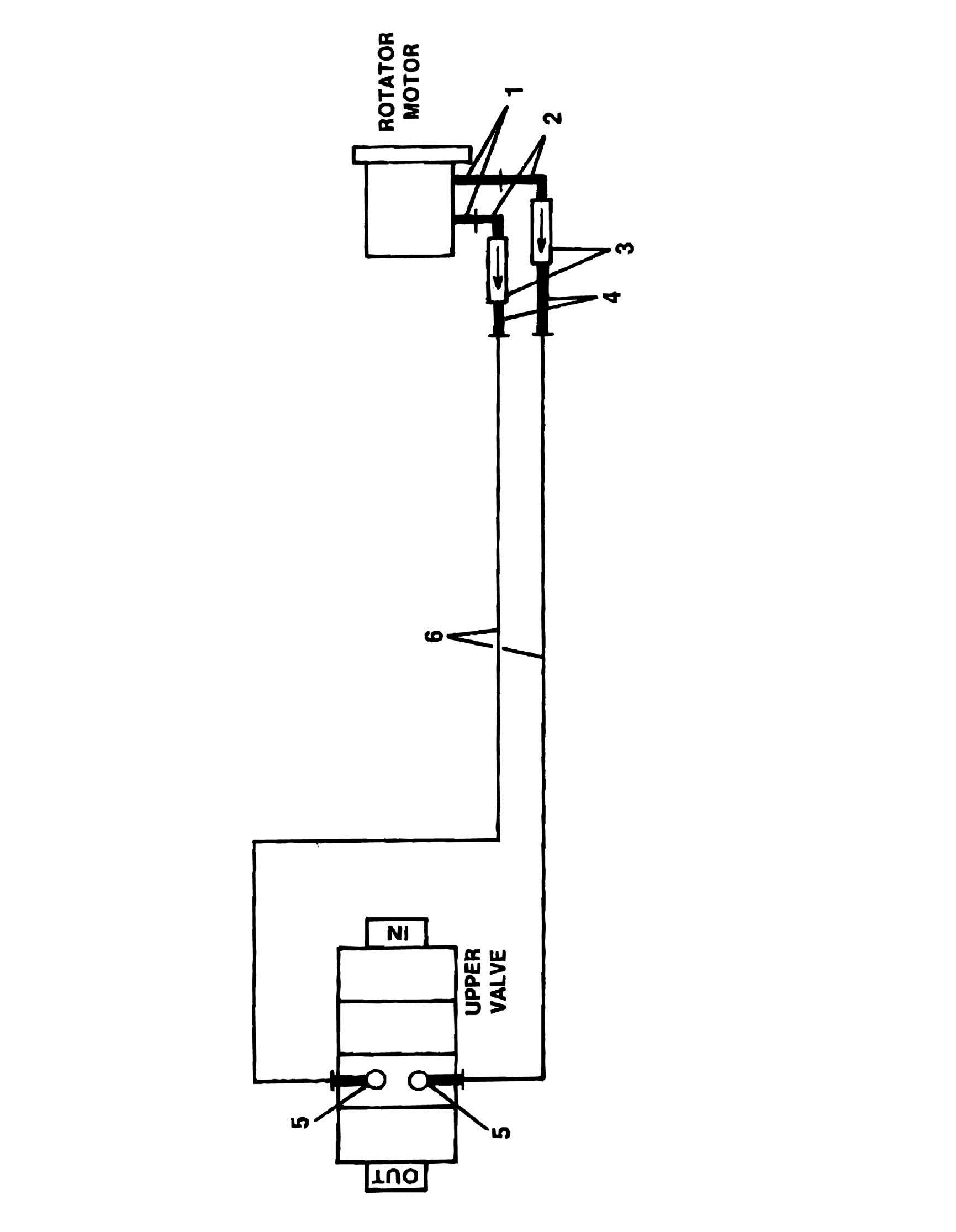

FIGURE 6-8. ROTATION HYDRAULIC DIAGRAM

from JLG 45HA Parts Manual (3120824) PDF Download En

FIGURE 6-6. PUMP HYDRAULIC DIAGRAM (GAS AND DIESEL MACHINES

FIGURE 6-8. ROTATION HYDRAULIC DIAGRAM

ITEM PART NUMBER QTY

DESCRIPTION

2791361 Ref HYDRAULIC DIAGRAM - ROTATION 1 2220816 2 Fitting, Adapter 2 2220261 2 Fitting, Nipple 3 4640383 2 Valve, Restrictor 4 2220416 2 Fitting, 90 5 2220582 2 Fitting, Straight 6 2751897 2 Hose 0100020 AR Sealant

FIGURE 6-8. ROTATION HYDRAULIC DIAGRAM

Next Article

FIGURE 6-6. PUMP HYDRAULIC DIAGRAM (GAS AND DIESEL MACHINES

FIGURE 6-8. ROTATION HYDRAULIC DIAGRAM

FIGURE 6-8. ROTATION HYDRAULIC DIAGRAM

ITEM PART NUMBER QTY

DESCRIPTION

REV
