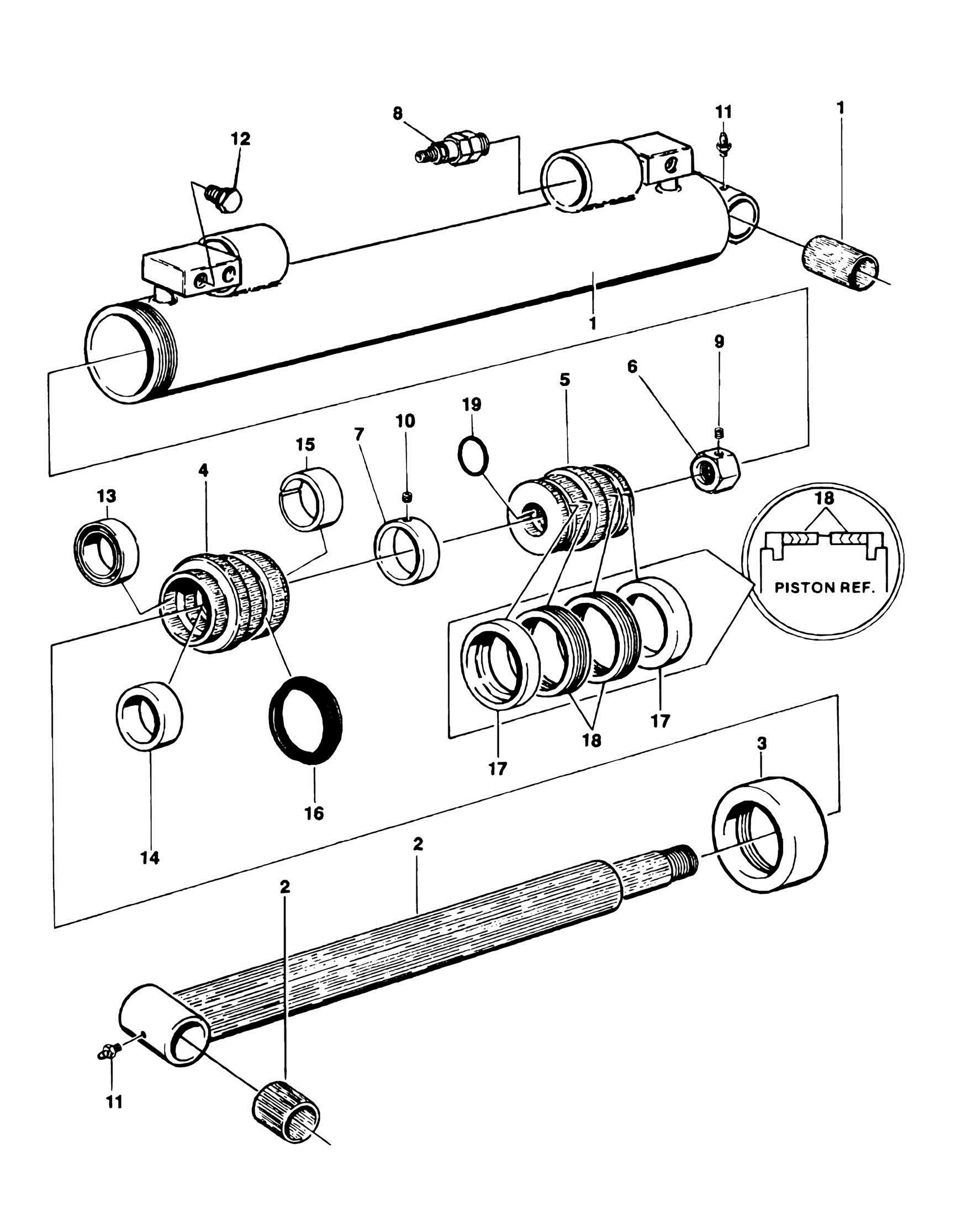

FIGURE 5-7. PLATFORM LEVEL CYLINDER ASSEMBLY (MAIN BOOM) (OCTOBER 1992 TO PRESENT
ITEM PART NUMBER QTY
DESCRIPTION
Ref PLATFORM LEVEL CYLINDER ASSEMBLY (MAIN BOOM) 1682793 Ref Platform Level Cylinder Assembly (Main Boom) (October 1992
to SN 33104)
1683526 Ref Platform Level Cylinder Assembly (Main Boom) (SN 33105 to
Present)
1 Ref Barrel Weldment (Machine Built) (Prior to SN 33105) 1 1682794 1 Barrel Weldment (October 1992 to SN 33104) 1 1683525 1 Barrel Weldment (Machine Built) (SN 33105 to Present) 1 0960613 2 Bushing, Bronze 2 1682177 1 Rod Weldment 2 0961254 2 Bushing, Bronze 3 1120336 1 Cap 3 0100035 AR Loctite #222 4 1681847 1 Head 5 3480141 1 Piston 6 3300284 1 Nut, Hex 6 0100011 AR Loctite #242 6 0100038 AR Primer, Loctite 7 4563771 1 Spacer 8 4640634 2 Cartridge, Vented Valve 8 2900770 2 Seal Kit - 4640634 Valve (1 Per Cartridge) 9 3900170 1 Setscrew 3/8in-16NC x 3/8in 10 3900141 1 Setscrew 1/4in-20NC x 3/8in 10 0100011 AR Loctite #242 11 2160002 2 Fitting, Grease 12 2220885 2 Plug, O-Ring 13 Kit 1 Wiper, Rod 14 Kit 1 Seal, Rod 15 Kit 1 Ring, Wear 16 Kit 1 T-Seal 17 Kit 2 Ring, Lock 18 Kit 2 Seal 19 Kit 1 O-Ring 2901103 1 Seal Kit - Cylinder (Includes Items 13-19)
