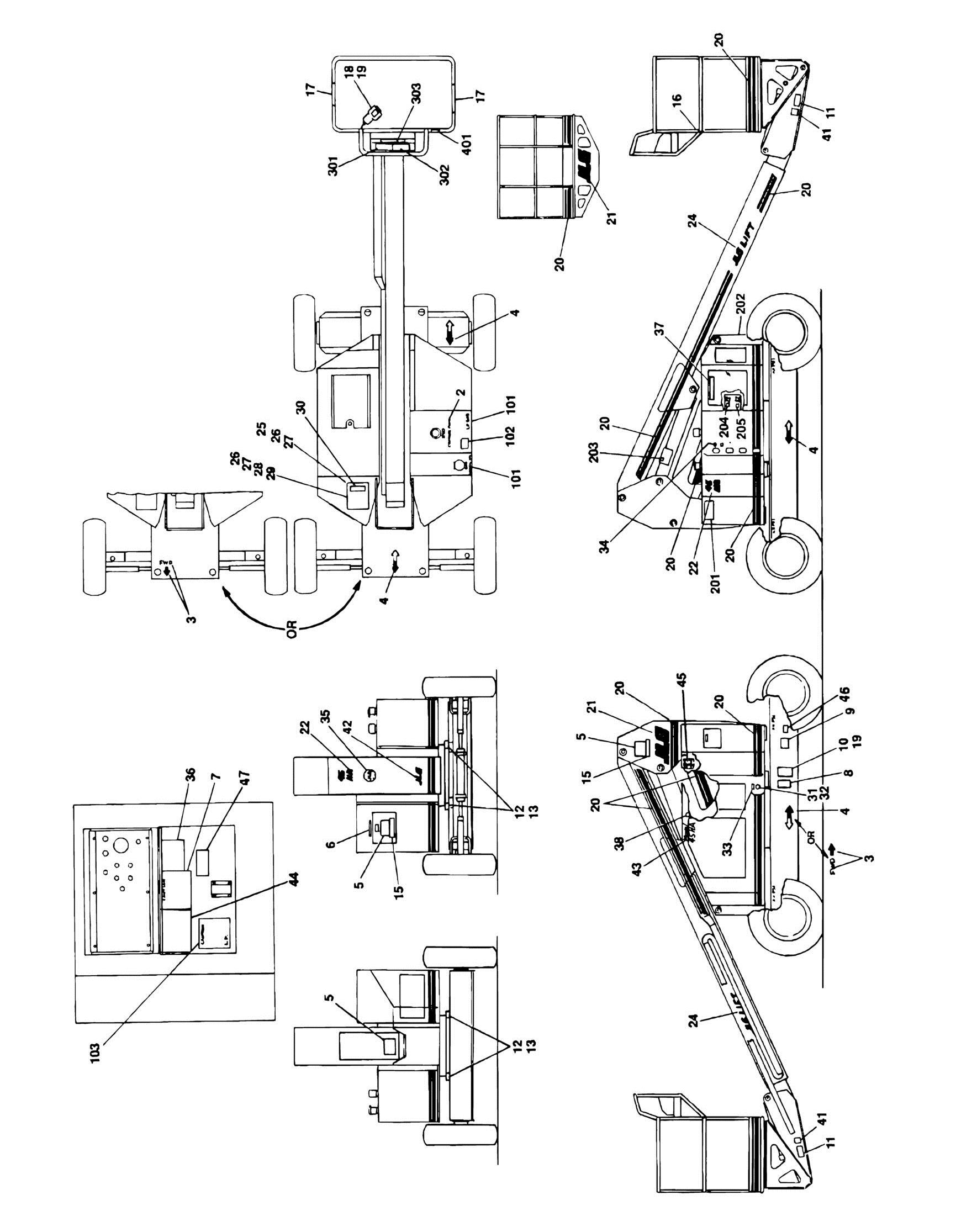

FIGURE 8-2. DECALS INSTALLATIONS (45HA AUGUST 1991 TO PRESENT
ITEM PART NUMBER QTY DESCRIPTION
Ref DECALS INSTALLATION 0238618 Ref Brown Decals (Gas and Diesel Machines) 0239577 Ref Black and White Decals (Gas and Diesel Machines) 0238659 Ref Brown Decals (Electric Machines) 2 Ref Decal - Hydraulic Fluid Options: 2 1701504 1 Brown Decals (Was p/n 1700419) 2 1701504 1 Black Decals (Was p/n 1700195) 3 Ref Decal - Forward Components (Prior to January 1993) 3 1700977 4 Forward (Brown Decal) 3 1700053 4 Forward (Black Decal) 3 1700107 4 Forward (White Decal) 3 1700978 4 Arrow 4 1701529 4 Decal - Arrow (January 1993 to Present) 5 Ref Decal - Crushing Options: 5 1700585 3 Decal - Crushing (Prior to May 1994) 5 1702277 3 Decal - Crushing (May 1994 to Present) 6 1700037 1 Decal - Ground Control 7 Ref Decal - Caution Options: 7 1700643 1 Decal - Caution (Prior to May 1994) 7 1702299 1 Decal - Caution (May 1994 to Present) 8 1700584 1 Decal - Patent 9 Ref Decal - Inspection Options: 9 1700593 1 Decal - Inspection (Prior to May 1994) 9 1702153 1 Decal - Inspection (May 1994 to Present) 10 Not Available 1 Nameplate - Serial Number 11 Ref Decal - Crushing Options: 11 1700640 3 Decal - Crushing (Prior to May 1994) 11 1702284 3 Decal - Crushing (May 1994 to Present) 12 Ref Decal - Lift Here Options: 12 1700975 4 Decal - Lift Here (Brown Decal) (Prior to SN 27521) 12 1700232 4 Decal - Lift Here (Black Decal) (Prior to SN 27521) 12 1701500 4 Decal - Lift Here (SN 27521 to Present) 13 Ref Decal - Tie Down Options: 13 1700976 4 Decal - Tie Down (Brown Decal) (Prior to SN 27521) 13 1701326 4 Decal - Tie Down (Black Decal) (Prior to SN 27521) 13 1702300 4 Decal - Tie Down (SN 27521 to Present) 15 Ref Decal - Electrocution Options: 15 1700580 2 Decal - Electrocution (Prior to May 1994) 15 1702292 2 Decal - Electrocution (May 1994 to Present) 16 Ref Decal - Attach Belt Options: 16 1700477 2 Decal - Attach Belt (Prior to May 1994) 16 1702276 2 Decal - Attach Belt (May 1994 to September 1995) 16 1704277 2 Decal - Attach Belt (September 1995 to Present) (Was p/n 1702612) 17 Ref Decal - No Hands Options: 17 1700476 2 Decal - No Hands (Prior to May 1994) 17 1702294 2 Decal - No Hands (May 1994 to Present) 18 3251766 1 Nameplate - Footswitch 19 3820001 8 Rivet 20 Ref Decal - Strip Options:
REV
18 14 H
ITEM PART NUMBER QTY
DESCRIPTION
20 1700431 55 ft Decal - Strip (Prior to September 1995) (Brown Decal) 20 1701703 55 ft Decal - Strip (September 1995 to Present) (Brown Decal) 20 1701334 55 ft All (Black Decal) 21 Ref Decal - JLG Options: 21 1700981 2 Brown Decal 21 1701196 2 Black Decal 22 Ref Decal - 45HA Options: 22 1701469 2 Brown Decal 22 1701549 2 Black Decal 24 Ref Decal - JLG Lift Options: 24 1701441 2 Brown Decal 24 1701550 2 Black Decal 25 0860520 1 Box, Manual Storage 26 4751400 6 Flatwasher 1/4in 27 3311405 5 Locknut 1/4in-20NC 28 1060279 1 Cable, Lanyard 29 0641408 1 Bolt 1/4in-20NC x 1in 30 Ref Decal - Manual Options: 30 1700157 1 Decal - Manual (Prior to May 1994) 30 1701507 1 Decal - Manual (May 1994 to Present) 31 0961127 1 Bushing, Snap 32 0100010 AR Loctite 33 3251243 1 Nameplate - 120V 34 Ref Decal - Full/Add (Gas/Diesel Only) Options: 34 1701502 & 1701503 1 Brown Decal (Was p/n 1700756) 34 1701502 & 1701503 1 Black Decal (Was p/n 1701336) 35 3251813 1 Decal - USA 36 Ref Decal - Ground Control Operation Options: 36 1700582 1 Decal - Ground Control Operation (Prior to May 1994) 36 1702293 1 Decal - Ground Control Operation (May 1994 to Present) 37 3251569 1 Nameplate - Handbook Location 38 3250914 1 Nameplate - Caution "Fan Blade" (Gas/Diesel Only) 41 Ref Decal - Caution Options: 41 1701460 2 Decal - Caution (Prior to May 1994) 41 1702280 1 Decal - Caution (May 1994 to Present) 42 Ref Decal - JLG Options: 42 1701376 1 Brown Decal 42 1701548 1 Black Decal 43 Ref Decal - Model 45HA Options: 43 1700982 1 Decal - Model 45HA (Prior to May 1994) (Brown Decals) 43 1701193 1 Decal - Model 45HA (Prior to May 1994) (Black Decals) 43 1701469 1 Decal - Model 45HA (May 1994 to Present) (Brown Decals) 43 1701549 1 Decal - Model 45HA (May 1994 to Present) (Black Decals) 44 1702282 1 Decal - Warning (Machines Built May 1994 to Present Only) 45 1702265 1 Decal - Important (Machines Built January 1995 to Present Only) 46 Not Available 1 Decal - Bar Code (Machines Built September 1995 to Present Only) 47 1702688 2 Decal - 500lbs Max Cap (Machines Built September 1995 to Present) Ref Decal Kit Options:
REV
ITEM PART NUMBER QTY DESCRIPTION
2900705 1 Brown Not Available Black and White Ref DECAL INSTALLATION - OPTIONS 101 Ref Decal - Fuel Options: 101 1701505 1 Diesel (Brown) (Was p/n 1700428) 101 1701505 1 Diesel (Black) (Was p/n 1700196) 101 1701542 1 Gasoline (Brown) (Was p/n 1700430) 101 1701542 1 Gasoline (Black) (Was p/n 1700194) 101 1700429 1 LP Gas (Brown) 101 1700197 1 LP Gas (Black) 102 1700818 1 Decal - Liquid Withdrawal (LP Gas Only) 102 3252356 1 Decal - Dual Fuel (Dual Fuel Machines Only) 103 3251028 1 Decal - Caution (LP Gas Only) 0252119 Ref DECALS INSTALLATION - MANUAL DESCENT 201 1701561 1 Decal - Manual Descent 202 1701428 1 Decal - Tag #1 (Prior to July 1993 Only) 203 1701494 1 Decal - Tag #2 204 1701426 1 Decal - Tag #3 205 1701463 1 Decal - Tag #4 0253639 Ref NAMEPLATE INSTALLATION (MACHINES BUILT JANUARY
1993 TO PRESENT)
301 3536671 1 Plate, Mounting 302 3252144 1 Nameplate - Caution/Danger 303 1701881 1 Decal - Symbols Ref PROP 65 DECAL INSTALLATION 0256488 Ref Prop 65 Decal Installation - Gas Machines 0256487 Ref Prop 65 Decal Installation - Diesel Machines 401 Ref Decal - Prop 65 Options: 401 1702961 1 Gas Machines 401 1702962 1 Diesel Machines
REV
C
